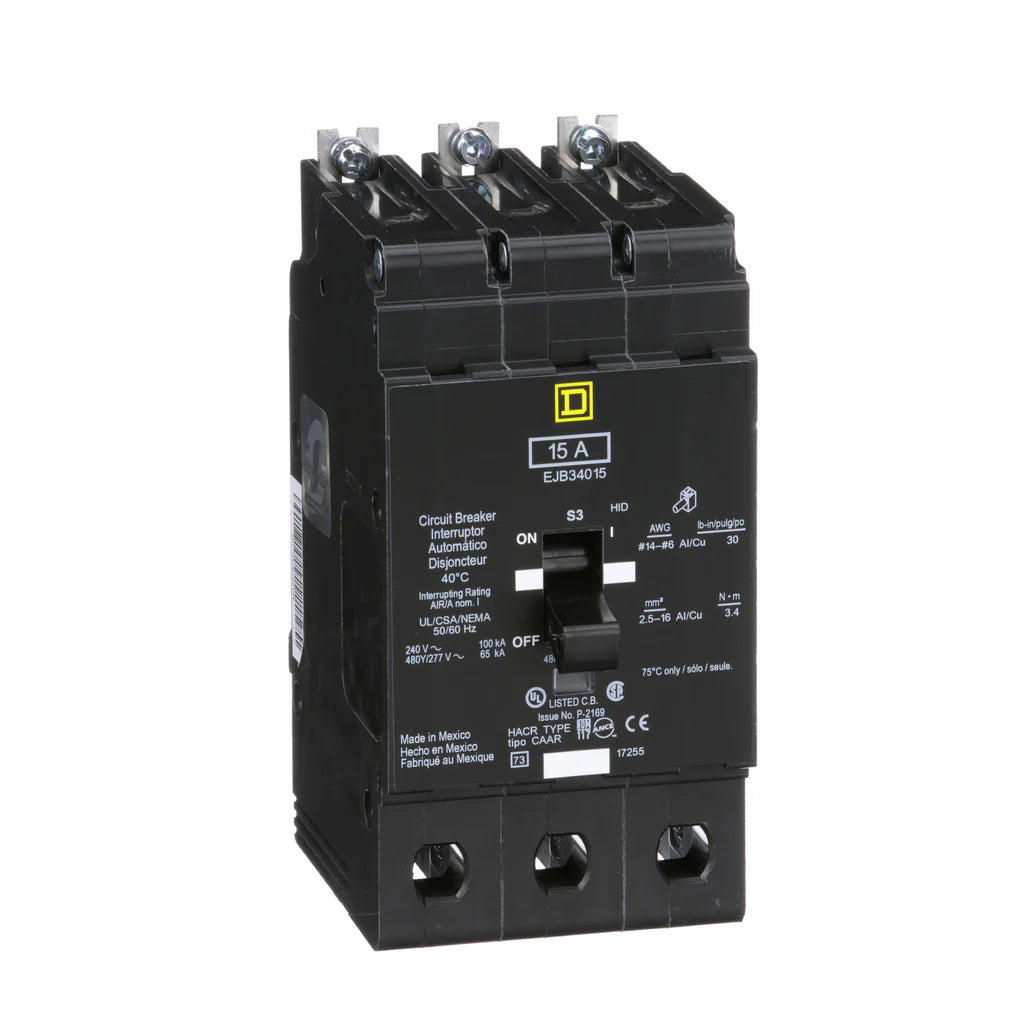

Square D EJB34015 3-Pole 15 Amp 480 Star/277 Volt Thermal Magnetic Miniature Circuit Breaker

Product Description

The Square D EJB34015 is a three-pole, fifteen amp thermal magnetic miniature circuit breaker designed for effective overload and short circuit protection. This breaker operates at a voltage of four hundred eighty Y/ two hundred seventy-seven VAC. It is suitable for use in Square D NF Panelboards. The thermal-magnetic trip unit includes indicators for trip events. The EJB34015 is rated for high intensity discharge and HACR applications.

• 3-Pole, 15 Amp configuration
• Operating voltage of 480Y/277 VAC
• UL Listed and CSA rated

Product Highlights

This breaker features a breaking capacity of up to sixty-five kA at 480Y/277 VAC. It has a hold current of two hundred seventy A and a trip current of eight hundred seventy-five A.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: EJB34015
• Depth: four point zero five inch
• Width: two point nine four inch
• Height: five point six six inch
• Weight: four lb
• Voltage: 277/480 VAC
• Amperage: fifteen amp
• Trip Type: thermal-magnetic
• Interrupt Rating: sixty-five kAIC
• Country of Origin: Mexico
