Product Description

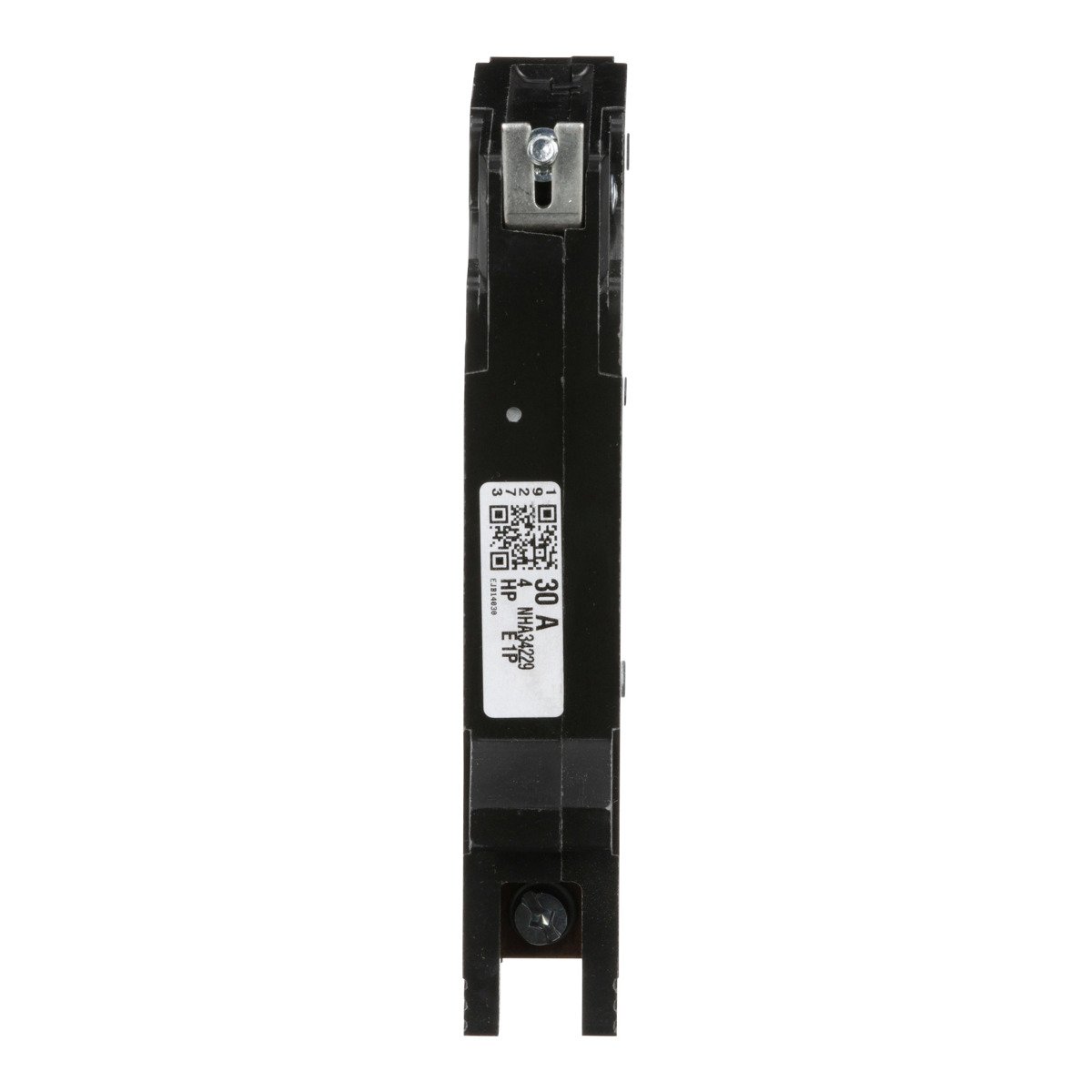

The Square D EJB14030 is an E-Frame miniature circuit breaker designed for Square D NF Panelboards. This 1-pole, 30 Amp breaker operates at 277 VAC and offers superior overload and short circuit protection. It features a thermal-magnetic trip unit and a signal indicator to show when a trip has occurred. It is UL Listed as High Intensity Discharge and HACR rated.
- E-Frame Breaker
- Thermal-magnetic trip unit
- Signal indicator
Product Highlights
Offers overload and short circuit protection. Designed for use in Square D NF Panelboards. Features a thermal-magnetic trip unit and a signal indicator.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: EJB14030
-
Country of Origin: Mexico
Technical Specifications
-
Type: Miniature circuit-breaker
-
Brand: Square D
-
Depth: 4.05 Inch
-
Frame: E-FRAME
-
Width: 0.98 in
-
Height: 5.66 Inch
-
Length: 4.05 Inch
-
Voltage: 277 VAC
-
Amperage: 30 Amp
-
Sub Brand: EJB
-
Trip Type: Thermal-magnetic
-
Net Weight: 2 lb
-
Trip Range: 875 A
-
Module Type: E-Frame
-
Product UPC: 78590113052
-
12-Digit UPC: 785901130529
-
Applications: HID rated;HACR rated
-
Mounting Type: Bolt-On
-
TC Connection: AWG 12...AWG 6 ALUMINIUM-AWG 14...AWG 6 COPPER,LUGS ALUMINIUM
-
Certifications: CULus
-
Number of Poles: 1 Pole
-
Interrupt Rating: 65, 100 kAIC
-
Number of Spaces: 1
-
Country of Origin: Mexico
-
Line Rated Current: 30 A
-
Operating Temperature: 40 Adegrees C
-
Manufacturer: Schneider Electric
-
Made in USA: No
-
Approval: UL, CSA, NOM 117
-
Tripping Method: Thermal Magnetic
-

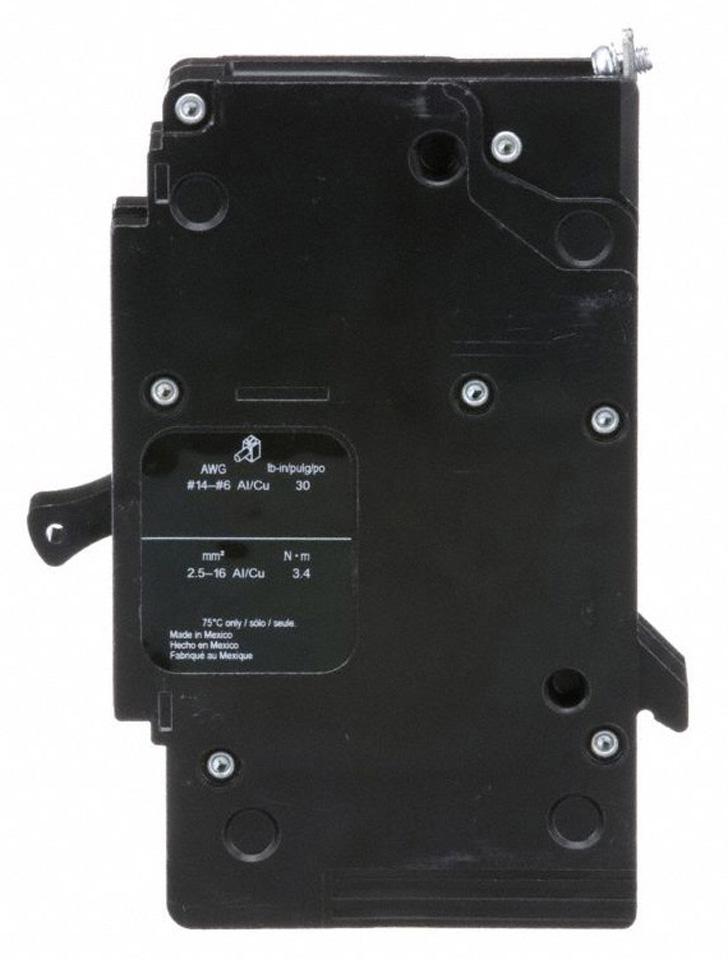

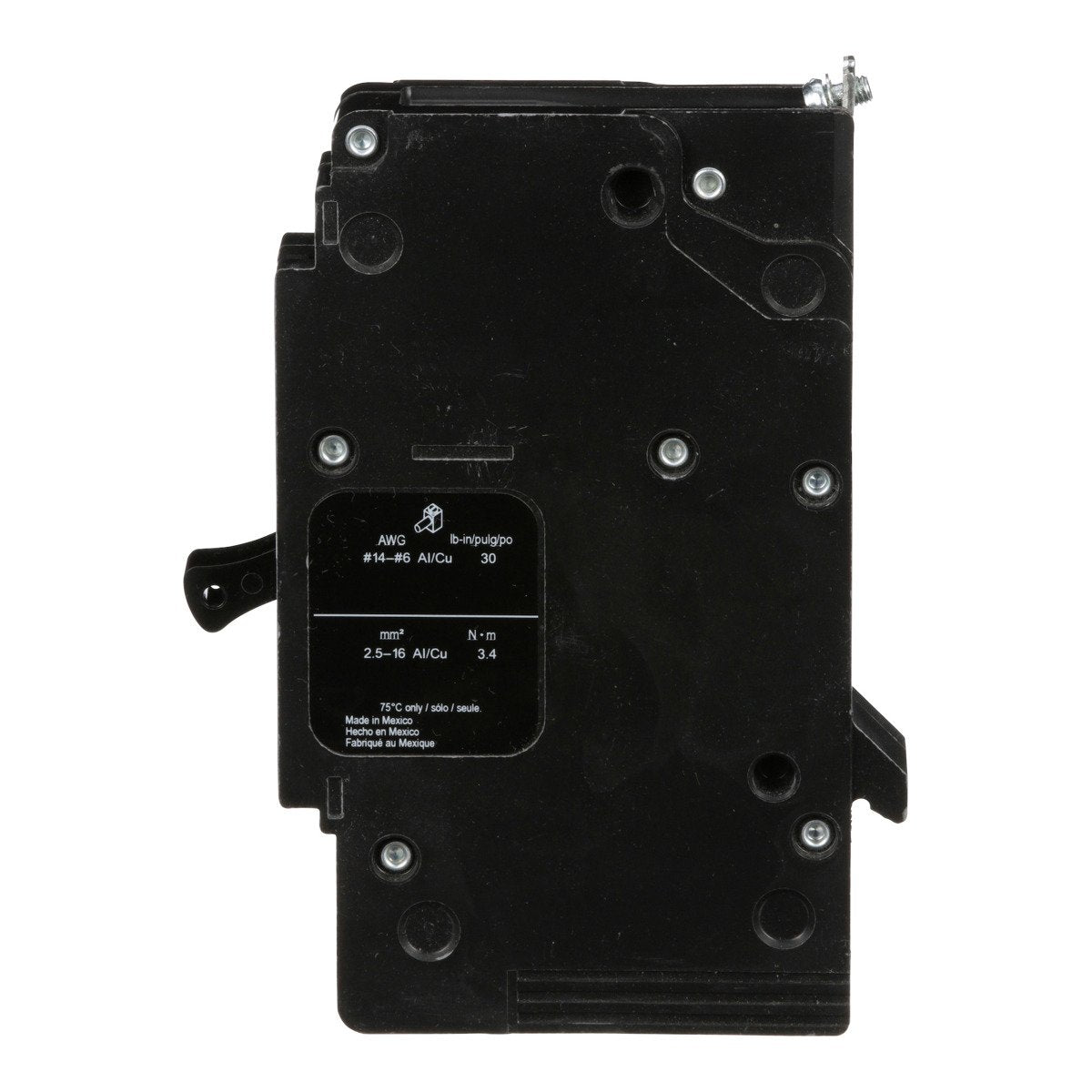

Terminal Wire Size: 12 to 6 AWG (Aluminum), 14 to 6 AWG (Copper)
-
Part Number: EJB14030
-
Family: EJB Series
-
Volt: 277
-
Phase: 1
-
Category: Molded Case / 1-Pole
-
Connection: Bolt-On
-
Type EJB: Type EJB Molded Case
-
Functions: LI - Long-Time and Instantaneous
-
Protection: Thermal Magnetic
-

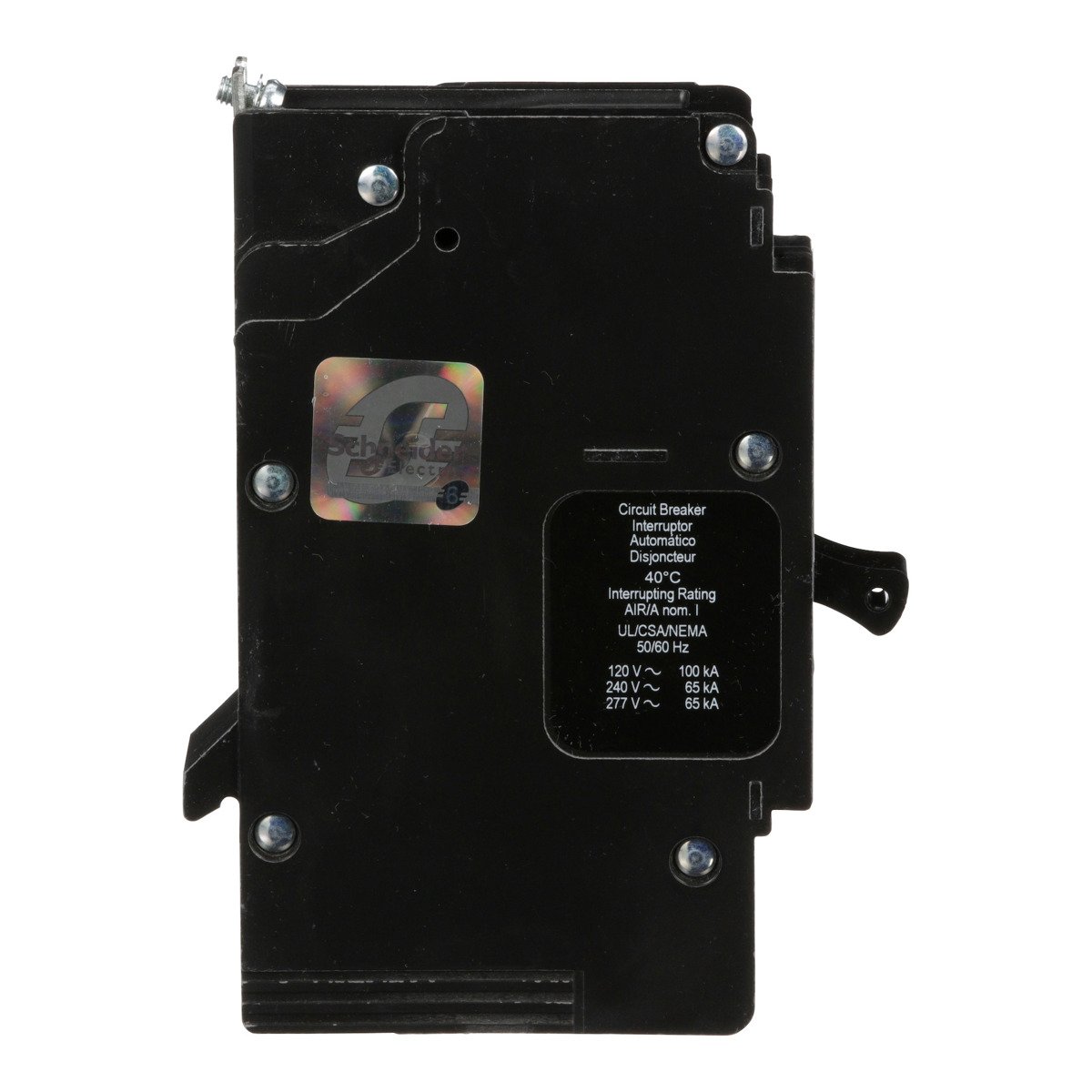

AIC Ratings: 65kA@277V | 65kA@240V | 100kA@120V
-
Dimensions (HxWxD): 5.66" x 0.98" x 4.05"
-
Protection Type: Short-Circuit / Overload
-
Trip Unit Rating: 875 Amp
-
Maximum Operating Voltage: 277 V AC
-
Mounting Mode: Bolt-On
-
Product Destination: Square D NF Panelboard
-
Electrical Connection: Aluminum Lugs
-
Holding Current: 270 Amp
-
Local Signaling: Trip Indicator
-
Circuit Breaker Application: HID-Rated / HACR-Rated
-
AWG Gauge: AWG 12...AWG 6 Aluminum | AWG 14...AWG 6 Copper
