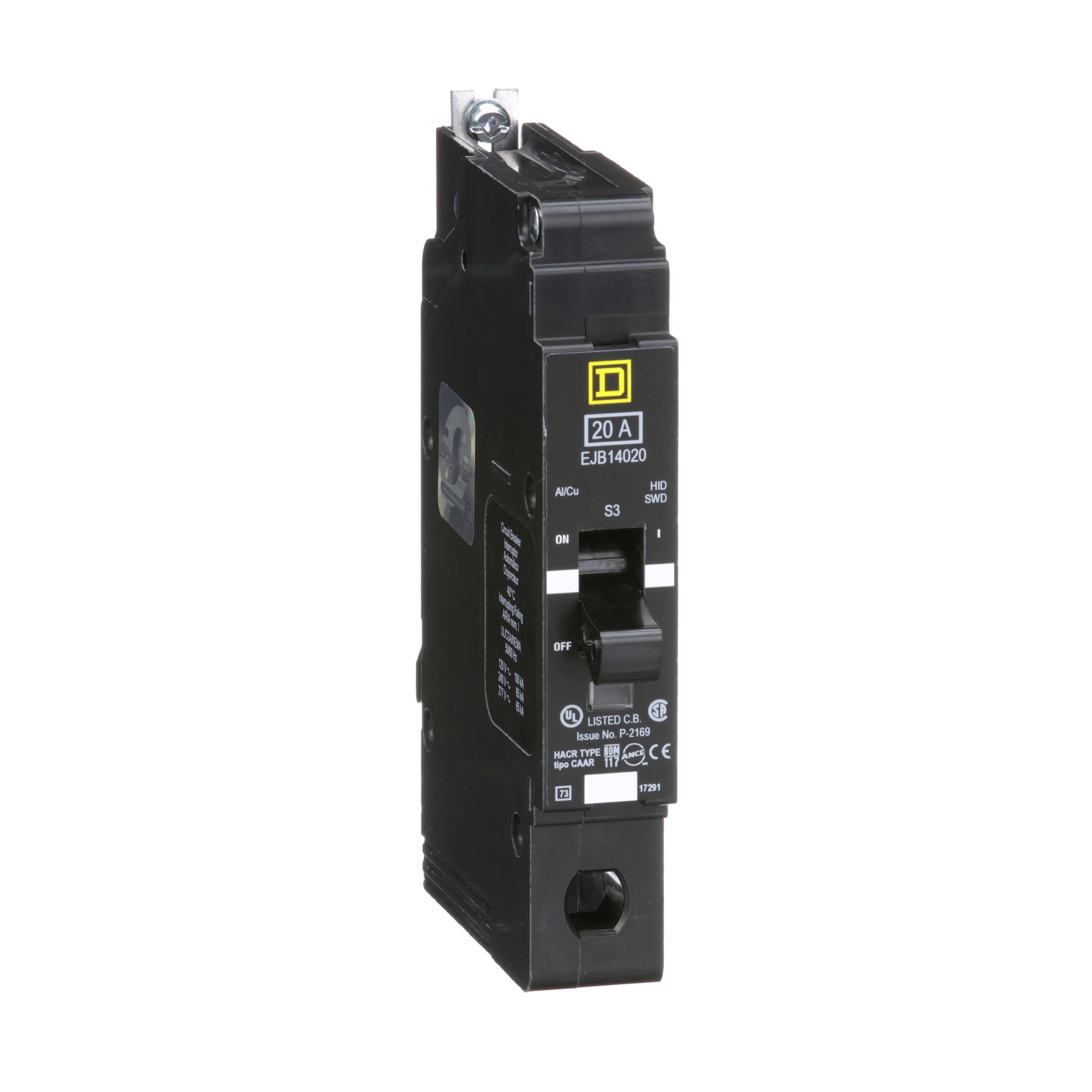

Square D EJB14020 1-Pole 20 Amp 277 Volt Thermal Magnetic Miniature Circuit Breaker

Product Description

The Square D EJB14020 is a 1-Pole, 20 Amp thermal magnetic miniature circuit breaker designed for use in Square D NF Panelboards. This breaker operates at a voltage of 277 VAC and provides reliable overload protection with its thermal-magnetic trip unit.

• Rated for Switching Duty, HID, and HACR applications.
• Features a maximum interrupt rating of 100 kA at 120 VAC.
• Includes signal indicators for trip detection.

Product Highlights

This circuit breaker is engineered to ensure safety in commercial and industrial applications. It features aluminum lugs suitable for various wire sizes and is calibrated for an operating temperature of forty degrees Celsius.

Product Information

Standard Information

• Catalog Number: EJB14020
• Brand: Square D

Technical Specifications

• Voltage: 277 VAC
• Amperage: 20 Amp
• Height: 5.66 inches
• Width: 0.98 inches
• Depth: 4.05 inches
• Weight: 2 lb
• Trip Type: Thermal-magnetic
• Hold Current: 270 A
• Trip Current: 875 A
• Country of Origin: Mexico
