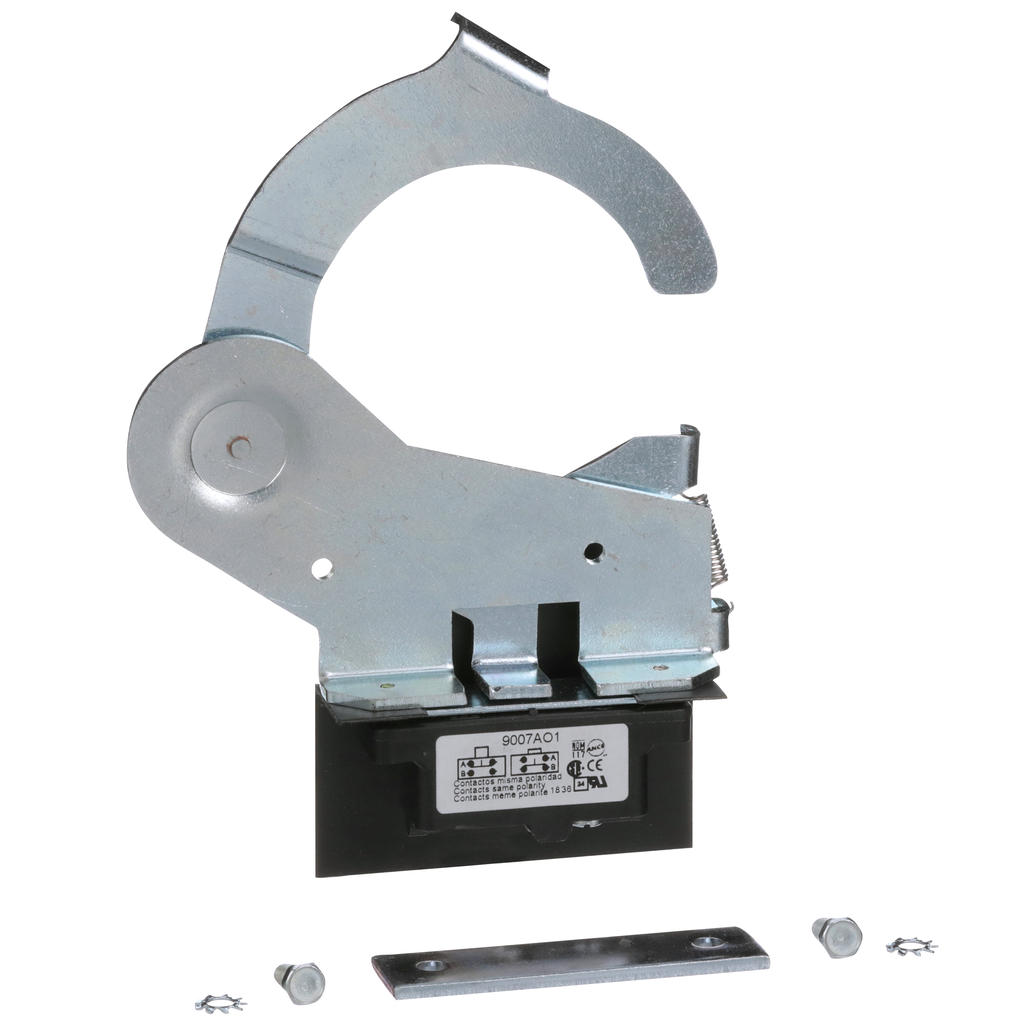

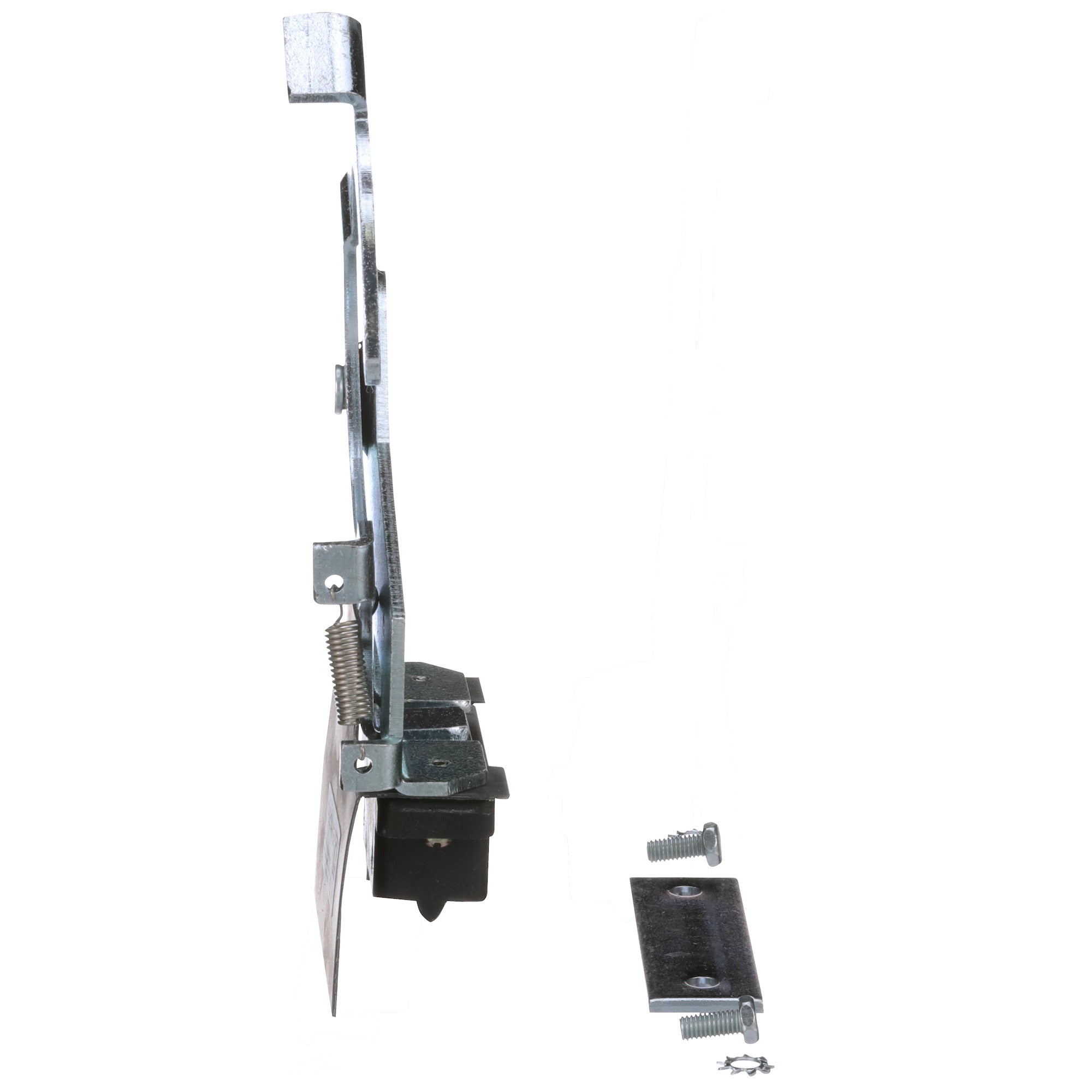

Square D EIK40601 Heavy Duty Safety Switch Electrical Interlock Kit 600 VAC/VDC 15 Amp

Product Description

Square D EIK40601 is a heavy duty safety switch interlock kit designed for electrical applications. This product is suitable for switches rated from four hundred amps to twelve hundred amps. The kit provides a reliable solution for ensuring safety in electrical systems. It features a quick-make, quick-break operating mechanism and a dual cover interlock system. The included pivot arm operates from the switch mechanism to break the control circuit prior to the main switch blades engaging.

• Designed for switches rated 400A to 1200A
• Includes detailed instructions for field installation
• UL listed for safety compliance

Product Highlights

This electrical interlock kit enhances operational safety for heavy-duty switches, ensuring effective control of power systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: EIK40601
• Type: Interlock
• Amperage: 400-1200 Amp
• Voltage Rating: 600 VAC/VDC
• Certifications: UL
• Warranty Length: 18 months
• Country of Origin: United States
