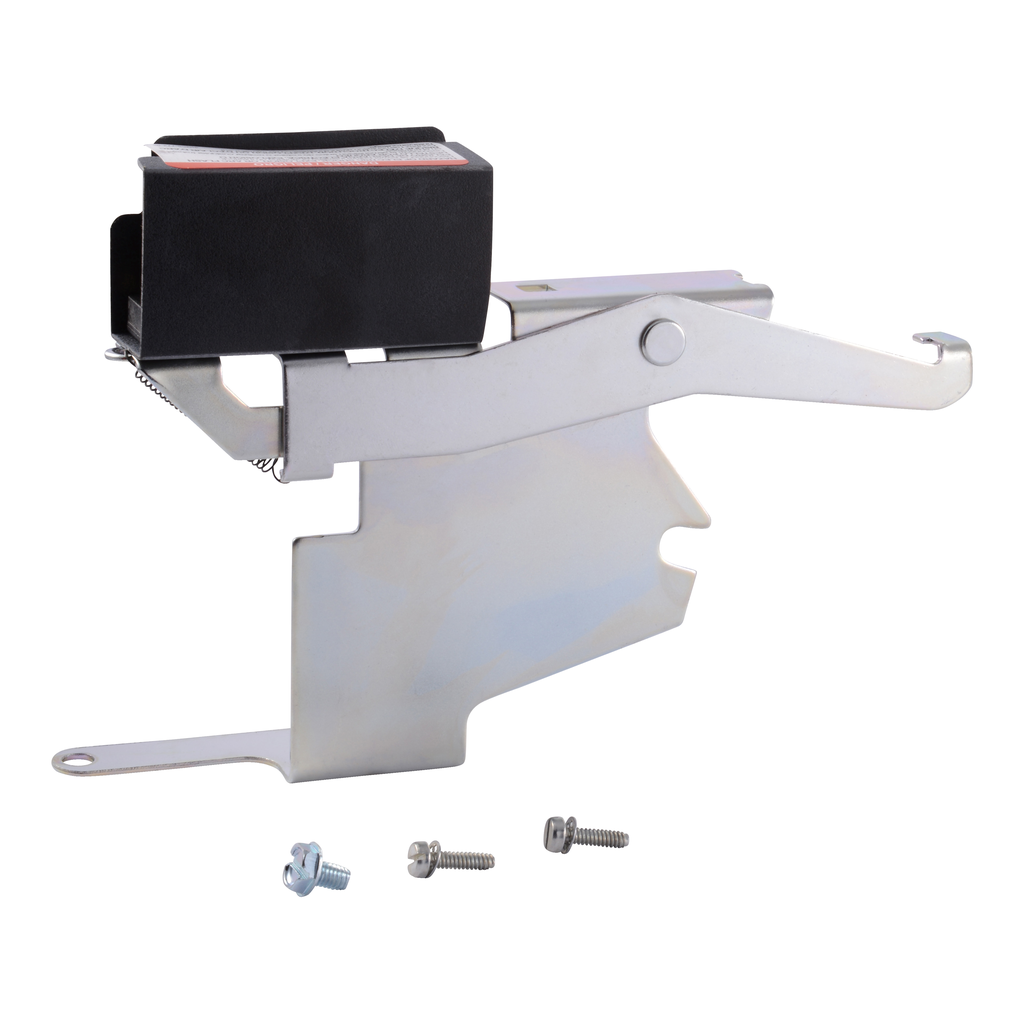

Square D EIK2 600 VAC/VDC 10 Amp 2NO 2NC Heavy Duty Safety Switch Electrical Interlock Kit

Product Description

Square D EIK2 is a safety switch designed for demanding conditions. This electrical interlock kit is suitable for switches rated from one hundred to two hundred amps. It is built for field installation and includes instructions for easy setup. The kit features a quick-make, quick-break operating mechanism, ensuring reliability in safety operations. A pivot arm from the switch mechanism breaks the control circuit before the main switch blades disengage, providing an added layer of safety.

• Quick-make, quick-break mechanism
• Compatible with switches rated 100 to 200 amps
• UL listed for safety compliance

Product Highlights

This kit enhances the functionality of Square D heavy-duty safety switches and allows for safer operations in electrical systems.

Product Information

Standard Information

• Catalog Number: EIK2
• Brand: Square D

Technical Specifications

• Type: Interlock
• Amperage: 100200 Amp
• Action: DPDT
• Depth: 1.48 Inch
• Width: 7.263 in
• Height: 4.346 Inch
• Country of Origin: USA
• Certifications: UL
