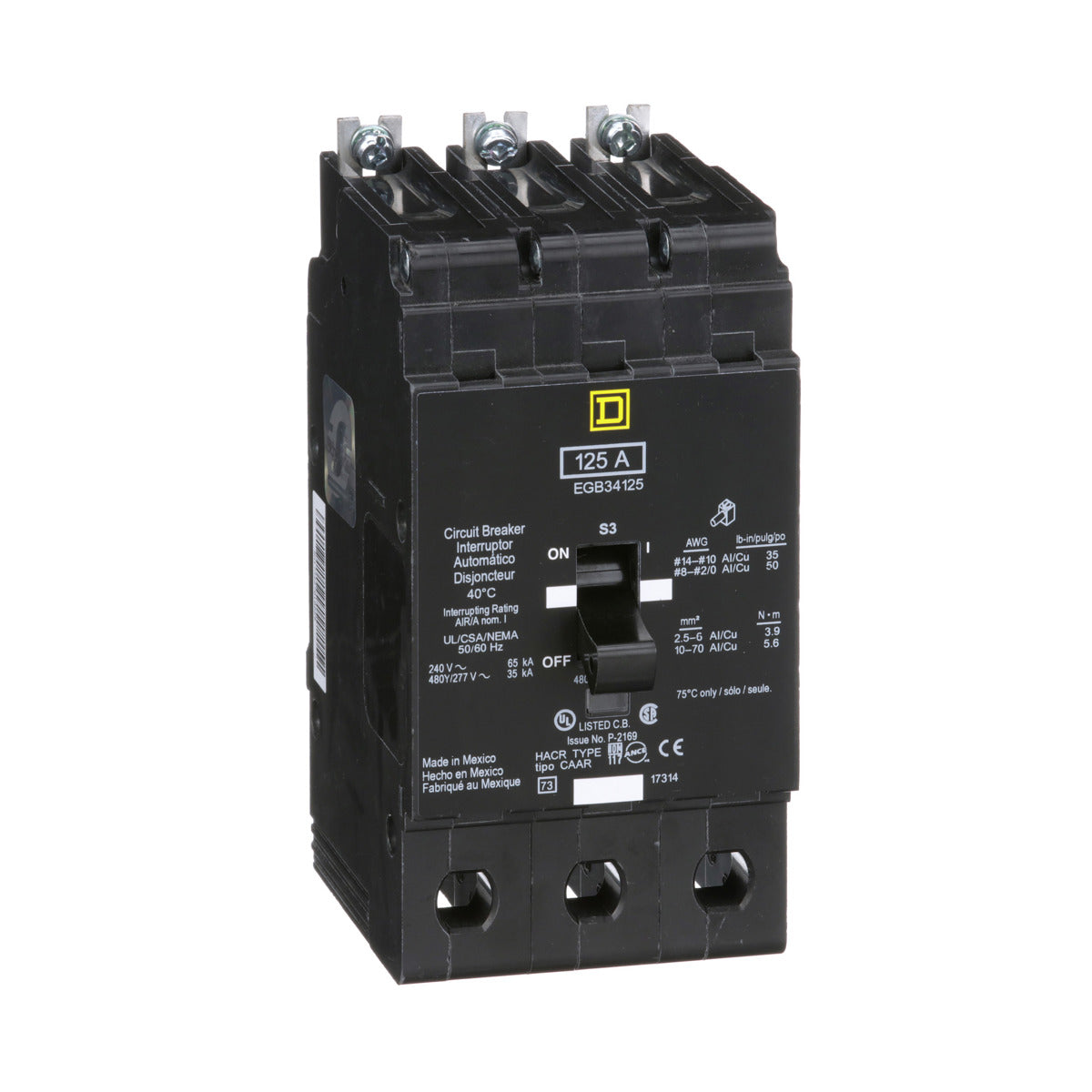

Square D EGB34125 3-Pole 125 Amp 480 Volt Thermal Magnetic Miniature Circuit Breaker

Product Description

The Square D EGB34125 is a three-pole, 125 Amp thermal magnetic miniature circuit breaker, designed for use in various electrical applications. This breaker operates at a voltage of 480Y/277 VAC and features a robust construction suitable for Square D NF Panelboards.

• Thermal-magnetic trip technology for overload and short circuit protection.
• HACR rated and HID rated breaker for enhanced performance.
• Allows bolt-on mounting for easy installation.

Product Highlights

Designed specifically for E-Frame applications, the EGB34125 features a current hold rating of 1000 Amps and a trip current of 2300 Amps. It provides a maximum interrupting capacity of 65 kA at 120 VAC and 35 kA at 480Y/277 VAC.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: EGB34125
• Type: Miniature Circuit Breaker
• Voltage: 277/480 VAC
• Amperage: 125 Amp
• Number of Poles: 3 Pole
• Height: 5.66 inches
• Width: 2.94 inches
• Depth: 4.05 inches
• Weight: 4 lb
• Certifications: CULus
• Country of Origin: United States
