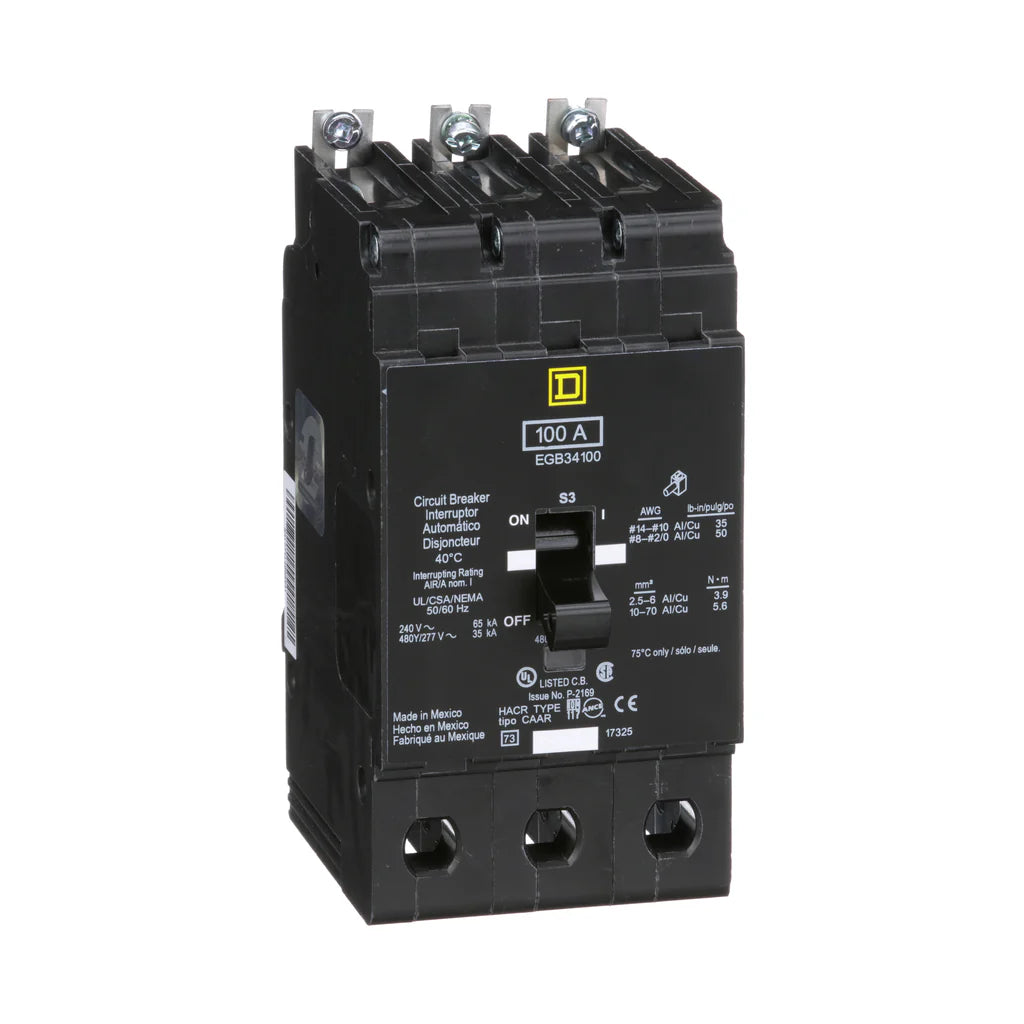

Square D EGB34100 Miniature Circuit Breaker 100 Amp 480Y/277 Volt

Product Description

Square D EGB34100 is a miniature circuit breaker designed for efficiency and reliability at a system voltage of four hundred eighty volt Y/ two hundred seventy-seven volt. This three-pole breaker operates at one hundred amps and features a thermal-magnetic trip unit that activates during overloads or short circuits. Ideal for use in lighting panelboards, this device meets HACR and HID rating standards, making it suitable for various applications.

• Rated at 100A with a trip current of 2300A.
• Interrupt ratings of 35 kA at 480Y/277 VAC and 65 kA at 120/240 VAC.
• Dimensions are five point sixty-six inches high, two point ninety-four inches wide, and four point five inches deep.

Product Highlights

This circuit breaker incorporates various features that enhance its functionality, such as a signal indicator for trip notifications and compatibility with multiple accessories.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: EGB34100
• Voltage: 277/480 VAC
• Amperage: 100 Amp
• Frame Type: E-Frame
• Number of Poles: 3 Pole
• Trip Type: Thermal-magnetic
• Country of Origin: Mexico
• Warranty Length: 18 months
