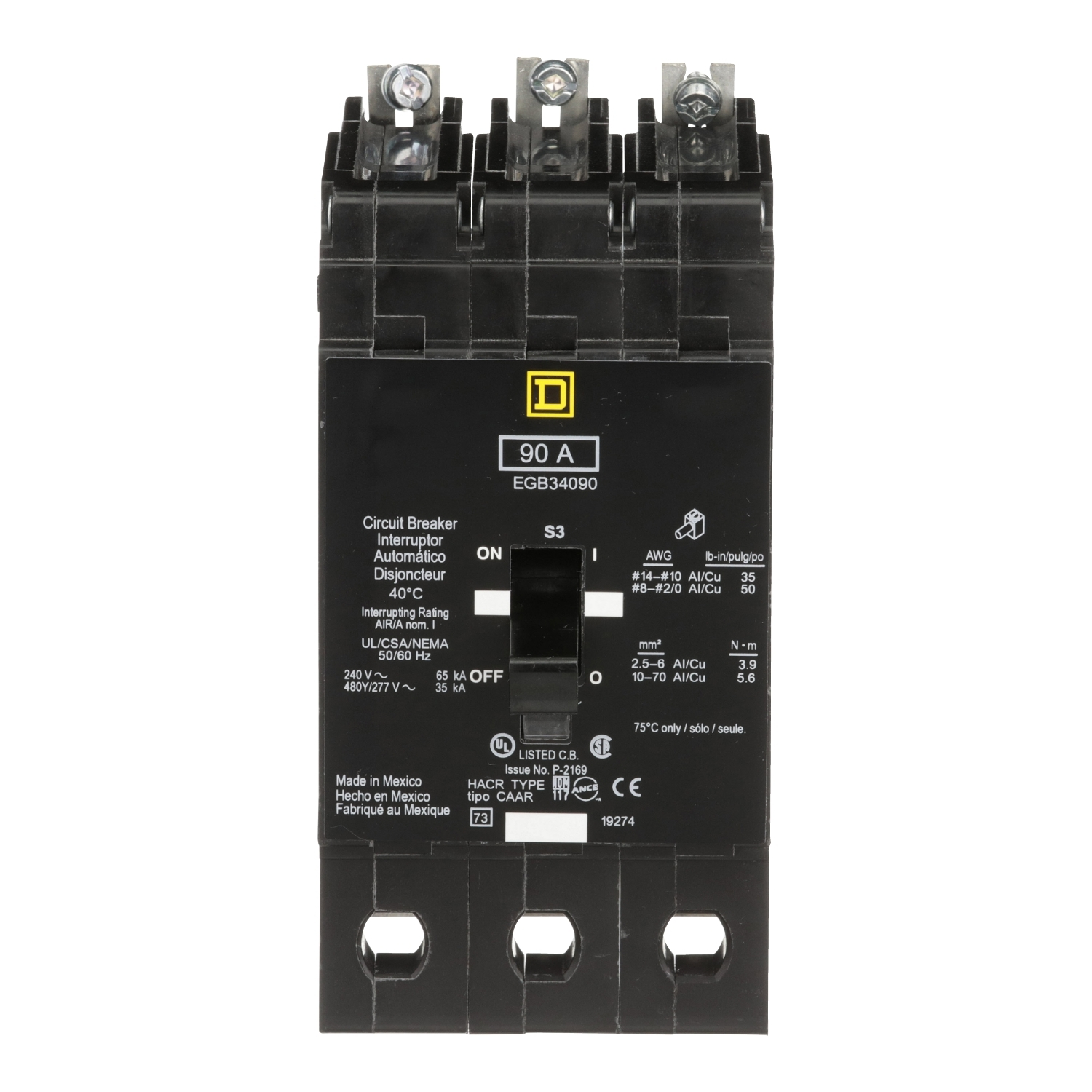

Square D EGB34090 EGB34090 3-Pole 90 Amp 480 Star/277 Volt Thermal Magnetic Miniature Circuit Breaker

Product Description

The SQUARE D EGB34090 is an E-Frame breaker and lighting panelboard circuit breaker designed for Square D NF Panelboards. This 3-pole, 90 Amp circuit breaker offers overload and short circuit protection. It features a thermal-magnetic trip unit and a signal indicator. The EGB34090 has an operating voltage of 480Y/277 VAC and is HACR rated.

• E-Frame Breaker
• Lighting Panelboard Circuit breakers
• Superior overload and short circuit protection

Product Highlights

Provides overload and short circuit protection with thermal-magnetic trip unit and signal indicator. Designed for Square D NF Panelboards.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: EGB34090
• Country of Origin: Mexico

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• Frame: E-FRAME
• Voltage: 277/480 VAC
• Amperage: 90 Amp
• Sub Brand: EGB
• Trip Type: Thermal-magnetic
• Applications: HACR rated
• Mounting Type: Bolt-On
• Number of Poles: 3 Pole
• Interrupt Rating: 65 kA at 240 VAC, 35 kA at 480Y/277 VAC
• Line Rated Current: 90 A
• Catalog Number: EGB34090
• Manufacturer: Schneider Electric
• UPC: 785901130475
• GTIN: 00785901130475
• Voltage Rating: 480 Star/277 VAC
• Current Rating: 90 Ampere
• Used On: NF Merchandised Panelboards
• Approval: UL
• Frame Type: E
• Terminal Wire Size: 14 to 2/0 AWG (Copper/Aluminum)
• Brand Name: Square D
• Connection Type: Lug
• Frequency Rating: 50/60
• Material: Thermoset Composite Resin
• Phase: 3
• Trip Unit Technology: thermal-magnetic
• Breaking Capacity: 35 kA 277 V AC || 65 kA 240 V AC || 35 kA 480Y/277 V AC || 65 kA 120 V AC || 65 kA 120/240 V AC
• Mounting Mode: bolt-on
• Local Signalling: trip indicator
• Circuit Breaker Application: HACR rated
• Rated Operational Voltage: 480Y/277 V AC
• Protection Type: short-circuit || overload
• Item: Miniature Circuit Breaker
• Series: EGB
• Features: Mercury Free
• Standards: cULus
• For Use With: NF Panelboard
• Product Type: Miniature Circuit Breaker 480Y/277V 90A
• Terminal Connection: Lug
• High Amp Trip Setting: 2300 A
• Circuit Breaker Mounting Style: Bolt-On
• Depth: 4.05 Inch
• Width: 2.94 in
• Height: 5.66 Inch
• Length: 4.05 Inch
• Operating Temperature: 40 Adegrees C
• Temperature Rating: 40
• Temperature Rating UOM: deg C
• Wire Size: 12 to 2/0 AWG Al, 14 to 2/0 AWG Cu
• Awg Gauge: AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
• Amps: 90
• Frame Size: G; E-Frame
