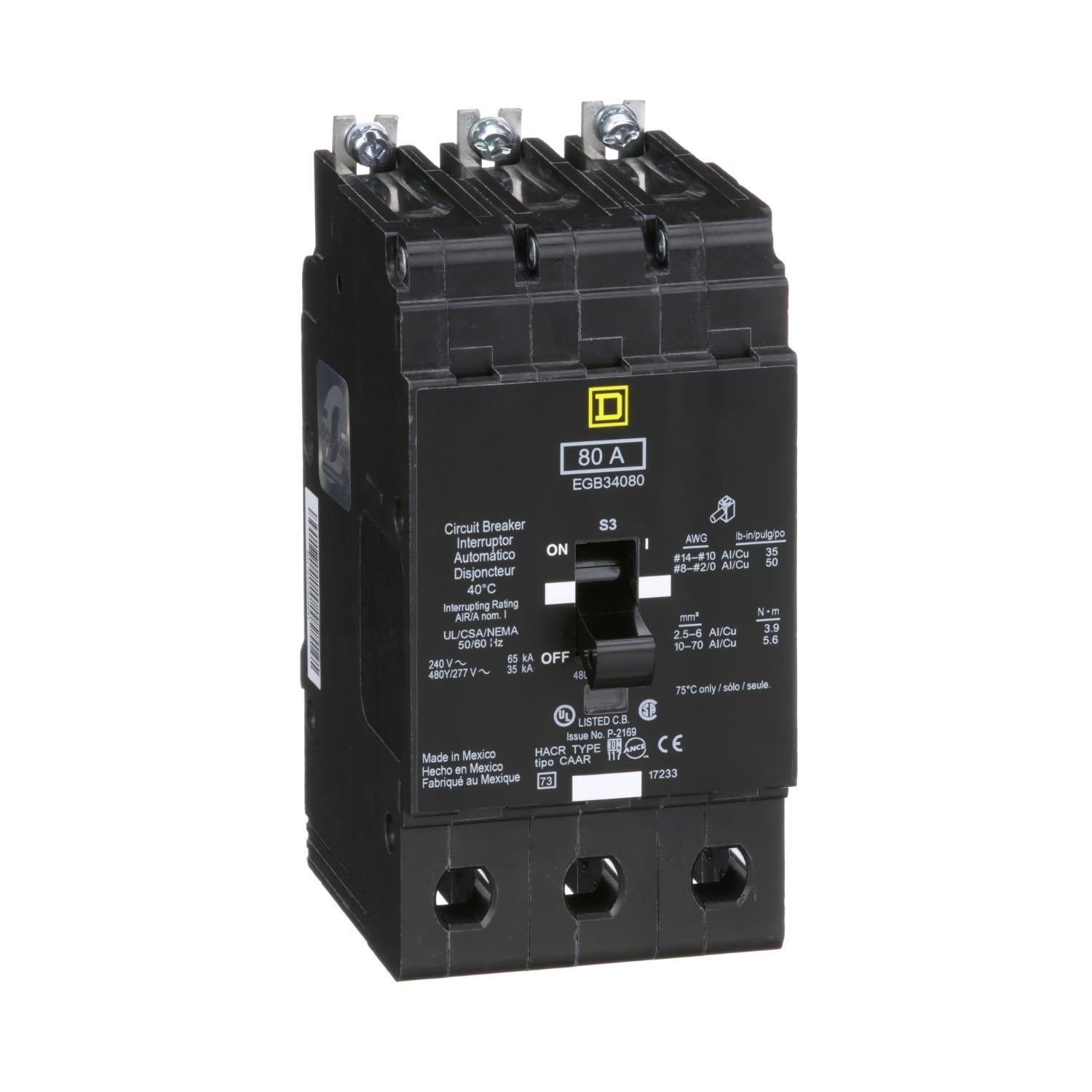

SCHNEIDER ELECTRIC Square D EGB34080 3-Pole 80 Amp Miniature Circuit Breaker
SCHNEIDER ELECTRIC Square D EGB34080 3-Pole 80 Amp Miniature Circuit Breaker

Square D EGB34080 3-Pole 80 Amp Miniature Circuit Breaker

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: EGB34080
Availability: Out Of Stock
$1,767.66
$1,767.66
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Square D EGB34080 is an E-Frame miniature circuit breaker designed for Square D NF Panelboards. This 3-pole, 80 Amp breaker operates at 480Y/277 VAC and provides overload and short circuit protection. It features a thermal-magnetic trip unit and a signal indicator. The breaker is HACR and HID rated and has a 65 kA max interrupt rating at 120 VAC.

  • E-Frame Breaker
  • Thermal-magnetic trip unit
  • HACR rated

Product Highlights

Provides overload and short circuit protection. Ideal for lighting panelboards and offers reliable performance with robust features.

Product Information

Standard Information

  • Brand: SQUARE D
  • Manufacturer Part Number: EGB34080
  • Country of Origin: Mexico
Technical Specifications
Type
Miniature circuit-breaker
Brand
Square D
Frame
E-FRAME
Width
2.94 in
Height
5.66 in
Voltage
277/480 VAC
Amperage
80 Amp
Sub Brand
EGB
Trip Type
Thermal-magnetic
Trip Range
2300 A
Module Type
E-Frame
Applications
HACR rated
Mounting Type
Bolt-On
TC Connection
LUGS #12 TO #2/0 AWG(AL) - #14 TO #2/0 AWG(CU)
Certifications
CULus
Number of Poles
3 Pole
Interrupt Rating
35 kAIC
Line Rated Current
80 A
Catalog Number
EGB34080
Manufacturer
Schneider Electric
UPC
0785901128632
GTIN
00785901128632
Voltage Rating
120/240/277 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz (UL/CSA)
Current Rating
71-80 A
Interrupting Rating
65 Kiloampere at 120/240 VAC, 35 Kiloampere at 480 VAC Star/277 VAC or 277 VAC (UL/CSA)
Trip Setting
1000 to 2300 Ampere
Installation
Bolt-On
Application
Lighting
Used On
Class 515 NF Series Panelboard
Approval
UL, CSA, NOM 117
Frame Type
E
Tripping Method
Thermal Magnetic
Terminal Wire Size
12 to 2/0 AWG (Aluminum), 14 to 2/0 AWG (Copper)
Range Of Product
125 A Frame EDB-EGB-EJB
Trip Unit Rating
2300-2300 A
Product Or Component Type
miniature circuit-breaker
Device Short Name
EGB
Holding Current
1000 A
Tightening Torque
3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
Breaking Capacity Code
G
Product Destination
NF panelboard
Electrical Connection
lugs aluminium
Number Of Spaces Required
3
Mounting Mode
bolt-on
Protection Type
short-circuit || overload
Local Signalling
trip indicator
Awg Gauge
AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
Breaking Capacity
35 kA 277 V AC || 65 kA 240 V AC || 35 kA 480Y/277 V AC || 65 kA 120 V AC || 65 kA 120/240 V AC
Trip Unit Technology
thermal-magnetic
[Ue] Rated Operational Voltage
480Y/277 V AC
Ambient Air Temperature For Operation
40 °C
Item
Miniature Circuit Breaker
Series
EGB
Features
Mercury Free
Standards
cULus
Frame Size
G; E-Frame
For Use With
NF Panelboard
Product Type
Miniature Circuit Breaker 480Y/277V 80A
Max. Wire Size
2/0 AWG (Cu/Al)
Min. Wire Size
12 AWG (Al), 14 AWG (Cu)
Max. AIR Rating
65 kA
AC Voltage Rating
277/480VAC
Terminal Connection
Lug
High Amp Trip Setting
2300 A
Circuit Breaker Mounting Style
Bolt-On
Model
EGB34080
Tripping Characteristics
Type D
Protection Properties
Short Circuit Protection
Mounting Style
Panel, Bolt-On
Maximum Amperage
80 A
Material
Aluminum
Phase
3 ph
Connection
Lug Connection
Mounting
Bolt-On Mounting
Temperature
40 deg C
