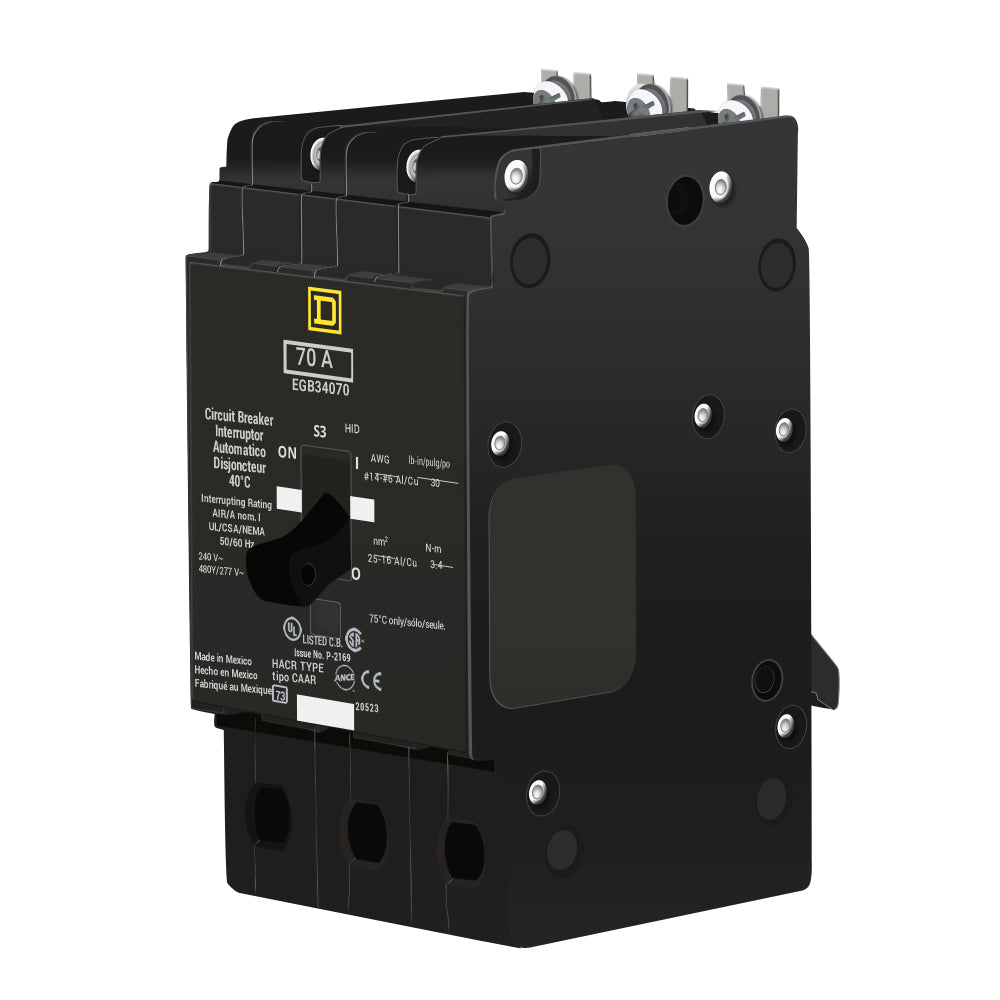

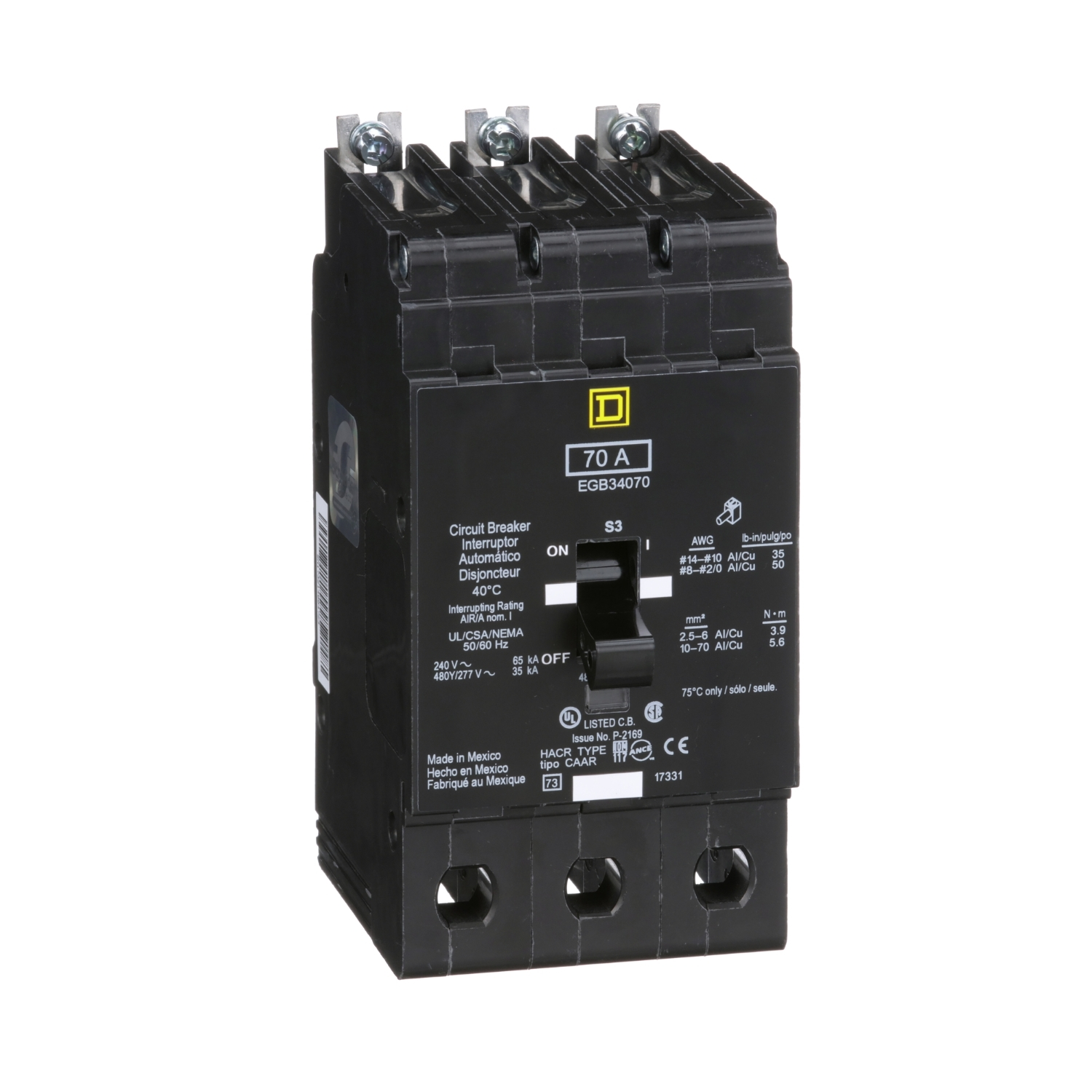

Square D EGB34070 EGB34070 480Y/277 Volt 70 Amp Miniature Circuit Breaker

Product Description

The SQUARE D EGB34070 is an E-Frame breaker, a lighting panelboard circuit breaker proven effective and reliable for Square D NF Panelboards. Designed to offer superior overload and short circuit protection, it features a thermal-magnetic trip unit and a signal indicator. This 70A, 3-pole breaker operates at 480Y/277 VAC and is HACR and HID rated.

• Provides superior overload and short circuit protection.
• Features a thermal-magnetic trip unit and signal indicator.
• HACR and HID rated for diverse applications.

Product Highlights

E-Frame breaker for lighting panelboards, offering reliable overload and short circuit protection with thermal-magnetic trip functionality.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: EGB34070
• Country of Origin: United States

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• Depth: 4.05 Inch
• Frame: E-FRAME
• Width: 2.94 in
• Height: 5.66 Inch
• Voltage: 277/480 VAC
• Amperage: 70 Amp
• Sub Brand: EGB
• Trip Type: Thermal-magnetic
• Trip Range: 1800 A
• Module Type: E-Frame
• Applications: HACR rated
• Mounting Type: Bolt-On
• TC Connection: LUGS #12 TO #2/0 AWG(AL) - #14 TO #2/0 AWG(CU)
• Certifications: CULus
• Number of Poles: 3 Pole
• Interrupt Rating: 35 kAIC
• Line Rated Current: 70 A
• Catalog Number: EGB34070
• Manufacturer: Schneider Electric
• Country of Origin: United States
• Made in USA: Yes
• UPC: 785901326441
• GTIN: 00785901326441
• Voltage Rating: 120/240/277 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz (UL/CSA)
• Current Rating: 70 Ampere
• Interrupting Rating: 65 Kiloampere at 120/240 VAC, 35 Kiloampere at 480 VAC Star/277 VAC or 277 VAC (UL/CSA)
• Trip Setting: 630 to 1800 Ampere
• Installation: Bolt-On
• Application: Lighting
• Used On: Class 515 NF Series Panelboard
• Approval: UL, CSA, NOM 117
• Frame Type: E
• Size: 2.94 Inch W x 4.05 Inch D x 5.66 Inch H
• Tripping Method: Thermal Magnetic
• Terminal Wire Size: 12 to 2/0 AWG (Aluminum), 14 to 2/0 AWG (Copper)
• Range Of Product: 125 A Frame EDB-EGB-EJB
• Product Or Component Type: miniature circuit-breaker
• Trip Unit Rating: 1800-1800 A
• Device Short Name: EGB
• Holding Current: 630 A
• Breaking Capacity Code: G
• Product Destination: NF panelboard
• Electrical Connection: Aluminum Lugs
• Number Of Spaces Required: 3
• Circuit Breaker Application: HACR rated
• Mounting Mode: bolt-on
• Protection Type: short-circuit || overload
• Local Signalling: trip indicator
• Awg Gauge: AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
• Breaking Capacity: 35 kA 277 V AC || 65 kA 240 V AC || 35 kA 480Y/277 V AC || 65 kA 120 V AC || 65 kA 120/240 V AC
• Trip Unit Technology: thermal-magnetic
• [Ue] Rated Operational Voltage: 480Y/277 V AC
• Part Number: EGB34070
• Family: EGB Series
• Pole: 3
• Amp: 70
• Volt: 480
• Phase: 3
• Category: Molded Case / 3-Pole
• Connection: Bolt-On
• Functions: LI - Long-Time and Instantaneous
• AIC Ratings: 35kA@480V | 35kA@277V | 65kA@240V | 65kA@120V
• Dimensions (HxWxD): 5.66" x 2.94" x 4.05"
• Maximum Operating Voltage: 480Y/277 V AC
