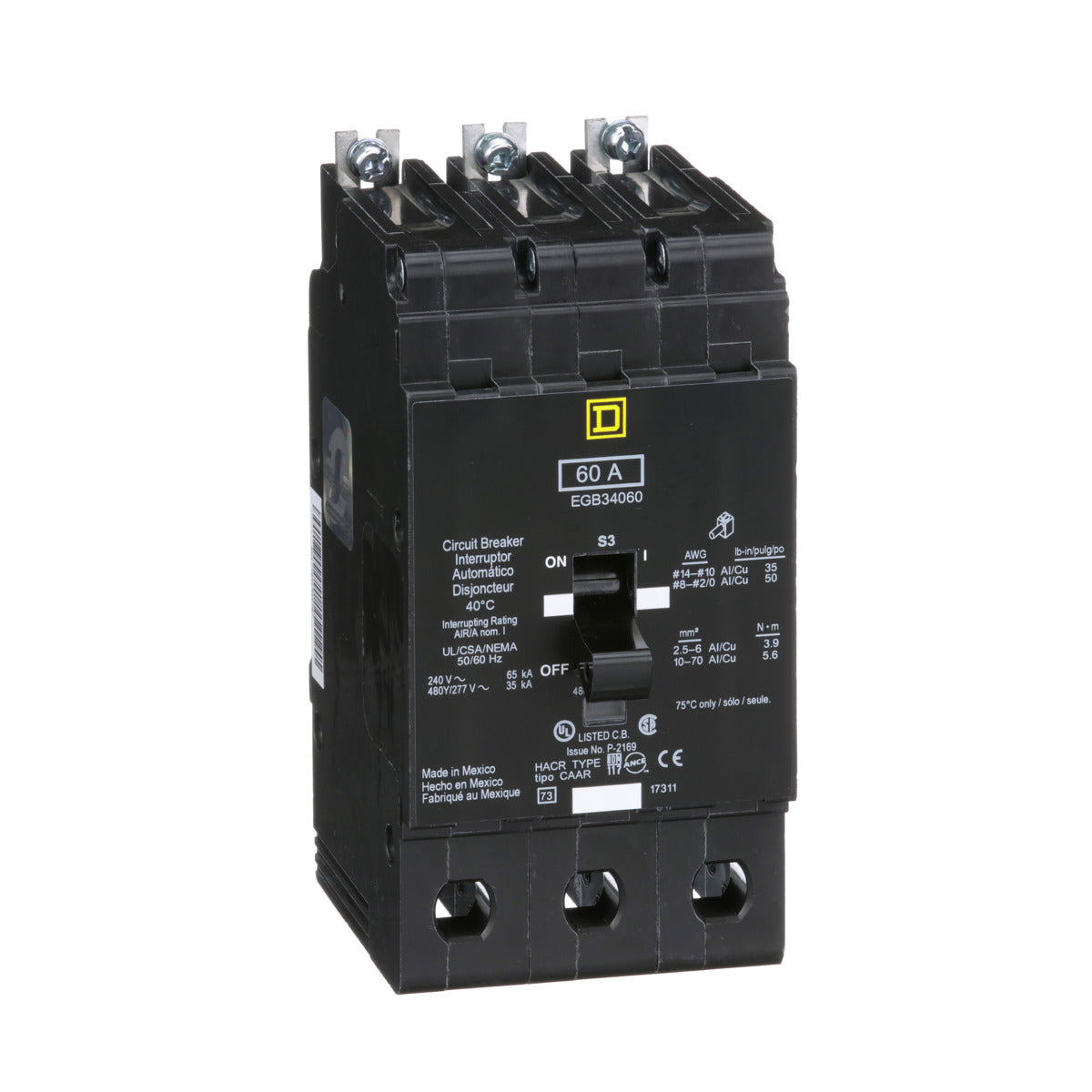

Square D EGB34060 Mini Circuit Breaker 60A 480Y/277 Volt

Product Description

Square D EGB34060 is a miniature circuit breaker designed for use in NF panelboards. It operates at 480Y/277 volts and has a current rating of sixty amps. This device offers both overload and short circuit protection through a thermal-magnetic trip unit and features a signal indicator to show when a trip occurs.

• Rated for 480Y/277 VAC input.
• HACR and HID rated to support various applications.
• Three pole configuration with a hold current of 630 A.

Product Highlights

The Square D EGB34060 circuit breaker ensures reliable protection against overloads and short circuits in electrical systems. This breaker is essential for installations requiring robust protection and consistent performance.

Product Information

Standard Information

• Catalog Number: EGB34060
• Brand: Square D

Technical Specifications

• Voltage Rating: 480Y/277 VAC
• Amperage: 60 A
• Number of Poles: 3
• Trip Type: Thermal-magnetic
• Hold Current: 630 A
• Trip Current: 1800 A
• Dimensions: 2.94 inches (width) x 5.66 inches (height) x 4.05 inches (depth)
• Weight: 4 lb
• Mounting Type: Bolt-on
• Country of Origin: Mexico
