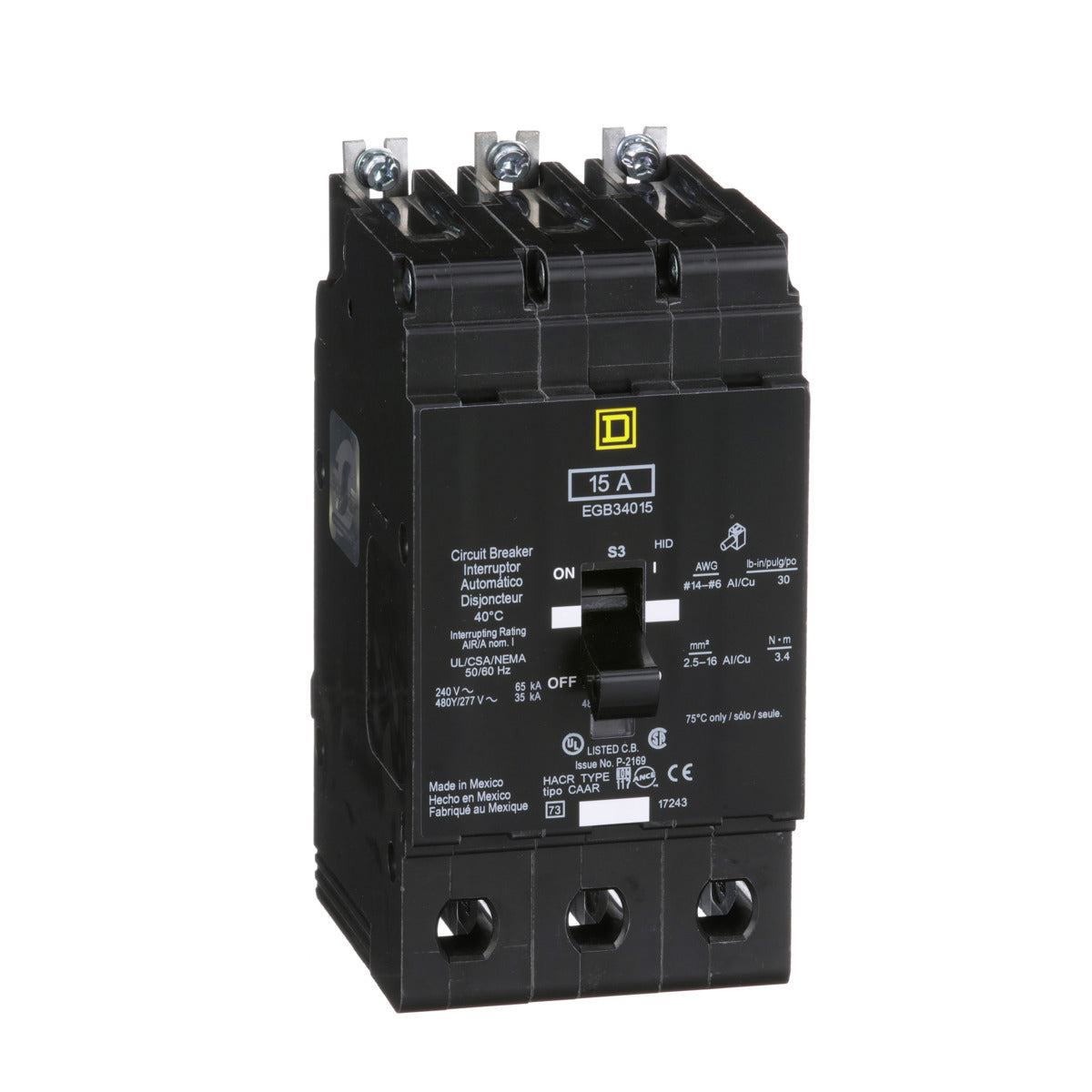

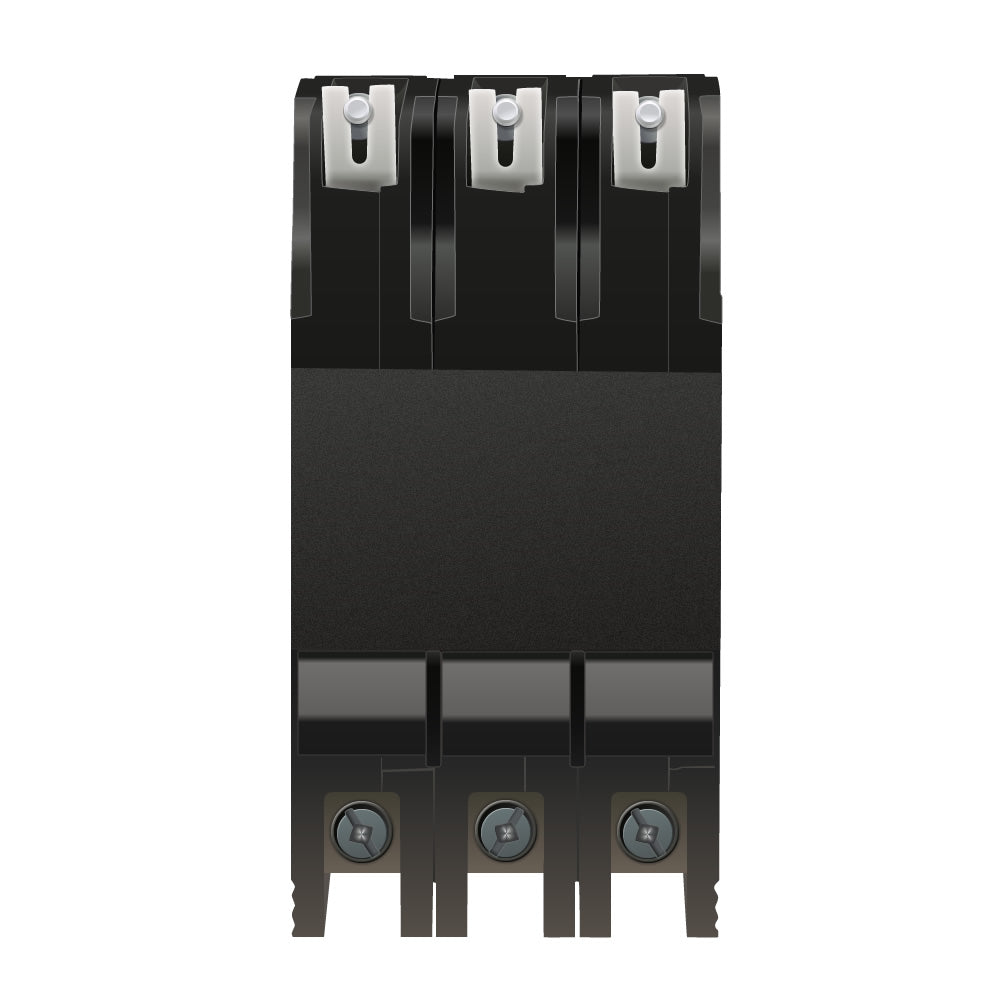

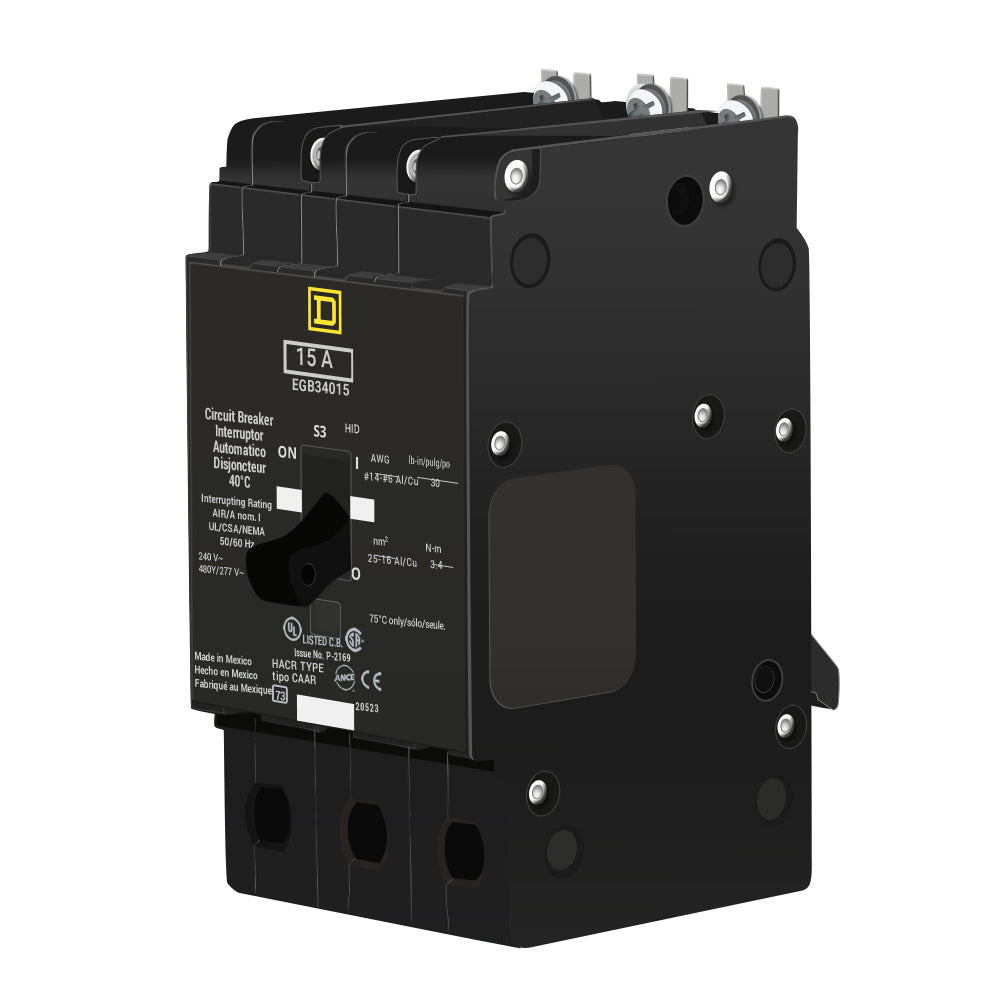

Square D EGB34015 miniature circuit breaker 15 amp

Product Description

The Square D EGB34015 is a miniature circuit breaker designed for Square D NF Panelboards. This E-Frame breaker offers overload and short circuit protection with a thermal-magnetic trip unit and signal indicator. It is a 3-pole breaker with an operating voltage of 480Y/277 VAC and a 15 Amp current rating. The breaker is HACR and HID rated and calibrated for 40 degrees C.

• E-Frame Breaker
• Thermal-magnetic trip unit
• HACR and HID rated

Product Highlights

Provides overload and short circuit protection. Features a thermal-magnetic trip unit and is suitable for Square D NF Panelboards.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: EGB34015
• Country of Origin: Mexico

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• Depth: 4.05 in
• Frame: E-FRAME
• Width: 2.94 in
• Height: 5.66 in
• Length: 5.66 in
• Voltage: 480Y/277 VAC
• Amperage: 15 Amp
• Sub Brand: EGB
• Trip Type: Thermal-magnetic
• Net Weight: 4 lb
• Trip Range: 875 A
• Applications: HID rated;HACR rated
• Mounting Type: Bolt-On
• TC Connection: LUGS #12 TO #6 AWG(AL) - #14 TO #6 AWG(CU)
• Certifications: CULus
• Number of Poles: 3 Pole
• Interrupt Rating: 65 kA at 120 VAC
• Line Rated Current: 15 A
• Catalog Number: EGB34015
• Manufacturer: Schneider Electric
• UPC: 785901311133
• GTIN: 00785901311133
• Phase: Three
• Series: EGB
• Mounting: Bolt on
• Standards: cULus
• Frame Size: 125A/EGB
• Application: HID rated Applications, HACR rated Applications
• For Use With: Square D NF Panelboards
• Product Type: Miniature Circuit Breaker
• Max. Wire Size: 6 AWG
• Min. Wire Size: 12 AWG (Al), 14 AWG (Cu)
• Max. AIR Rating: 35kA at 277/488V AC
• AC Voltage Rating: 277/480V AC
• DC Voltage Rating: Not Rated
• Terminal Connection: Lug
• Circuit Breaker Type: Standard
• High Amp Trip Setting: 875 A
• Circuit Breaker Actuator: Toggle
• Compatible Panelboard/Load Center Series: NF
• Poles: 3
• Hold Current: 270A
• Trip Current: 875A
• HACR Rated: Yes
• HID Rated: Yes
• Calibration Temperature: 40 degrees C
• UL Listed: High Intensity Discharge
• Voltage Rating: 120/240/277 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz (UL/CSA)
• Current Rating: 15 Ampere
• Interrupting Rating: 65 Kiloampere at 120/240 VAC, 35 Kiloampere at 480 VAC Star/277 VAC or 277 VAC (UL/CSA)
• Trip Setting: 270 to 875 Ampere
• Installation: Bolt-On
• Lighting Application: Lighting
• Used On: Class 515 NF Series Panelboard
• Approval: UL, CSA, NOM 117
• Frame Type: E
• Size: 2.94 Inch W x 4.05 Inch D x 5.66 Inch H
• Tripping Method: Thermal Magnetic
• Terminal Wire Size: 12 to 6 AWG (Aluminum), 14 to 6 AWG (Copper)
• Part Number: EGB34015
• Family: EGB Series
• Pole: 3
• Amp: 15
• Volt: 480
• Connection: Bolt-On
• EGB Type: EGB
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 35kA@480V | 35kA@277V | 65kA@240V | 65kA@120V
• Dimensions (HxWxD): 5.66" x 2.94" x 4.05"
• Protection Type: Short-Circuit / Overload
• Trip Unit Rating: 875 Amp
• Maximum Operating Voltage: 480Y/277 V AC
• Mounting Mode: Bolt-On
• Product Destination: Square D NF Panelboard
• Electrical Connection: Aluminum Lugs
• Holding Current: 270 Amp
• Local Signaling: Trip Indicator
• Circuit Breaker Application: HID-Rated / HACR-Rated
• AWG Gauge: AWG 12...AWG 6 Aluminum | AWG 14...AWG 6 Copper
