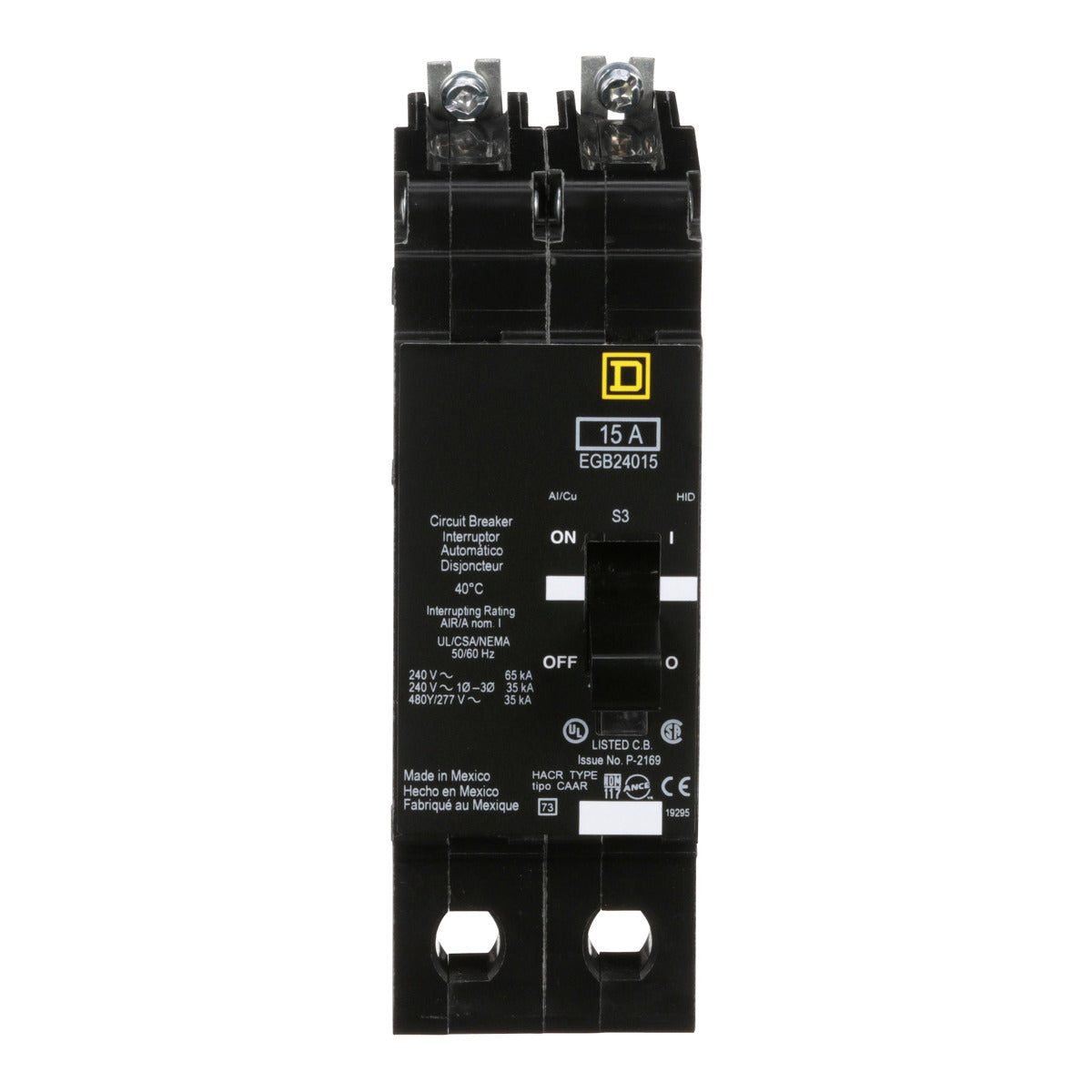

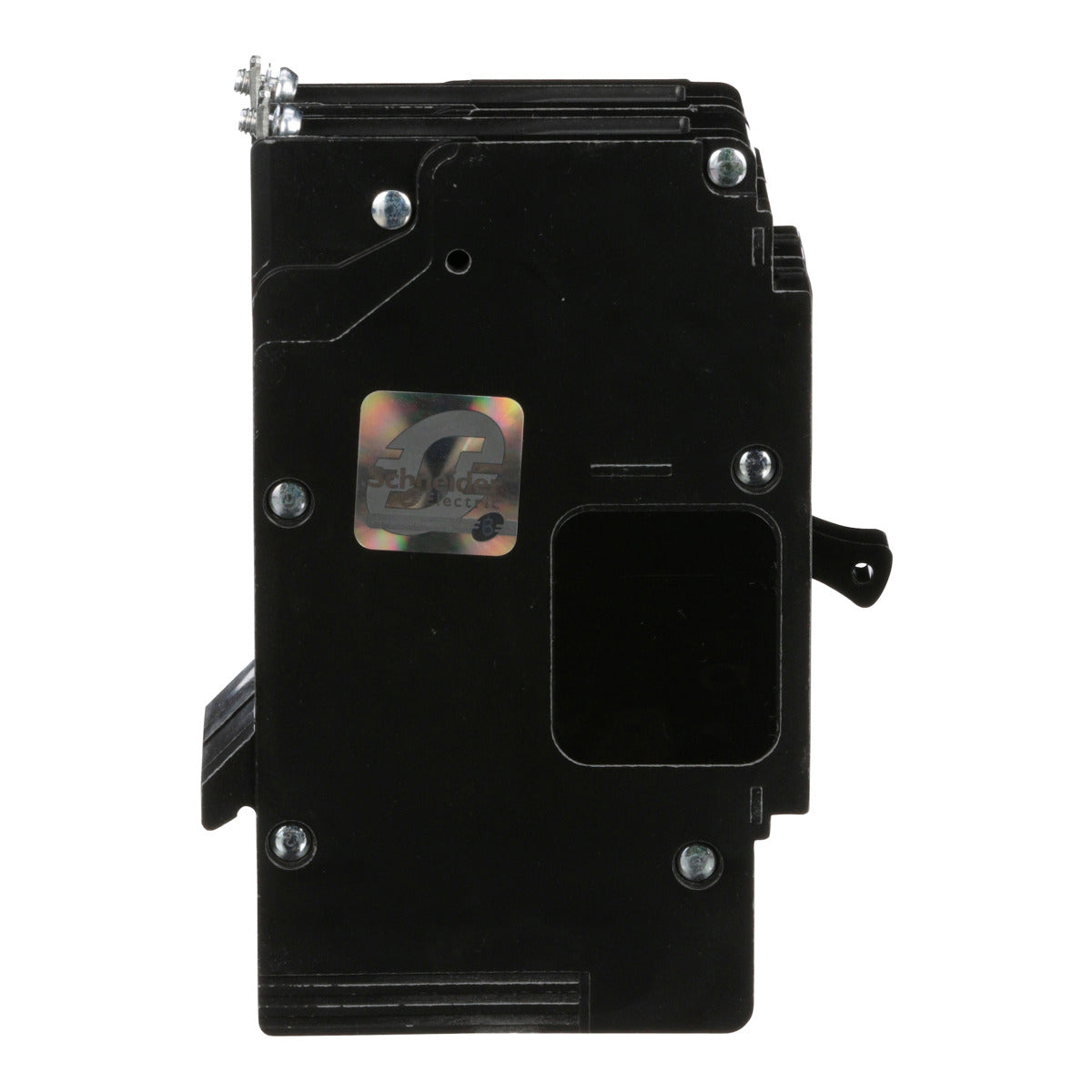

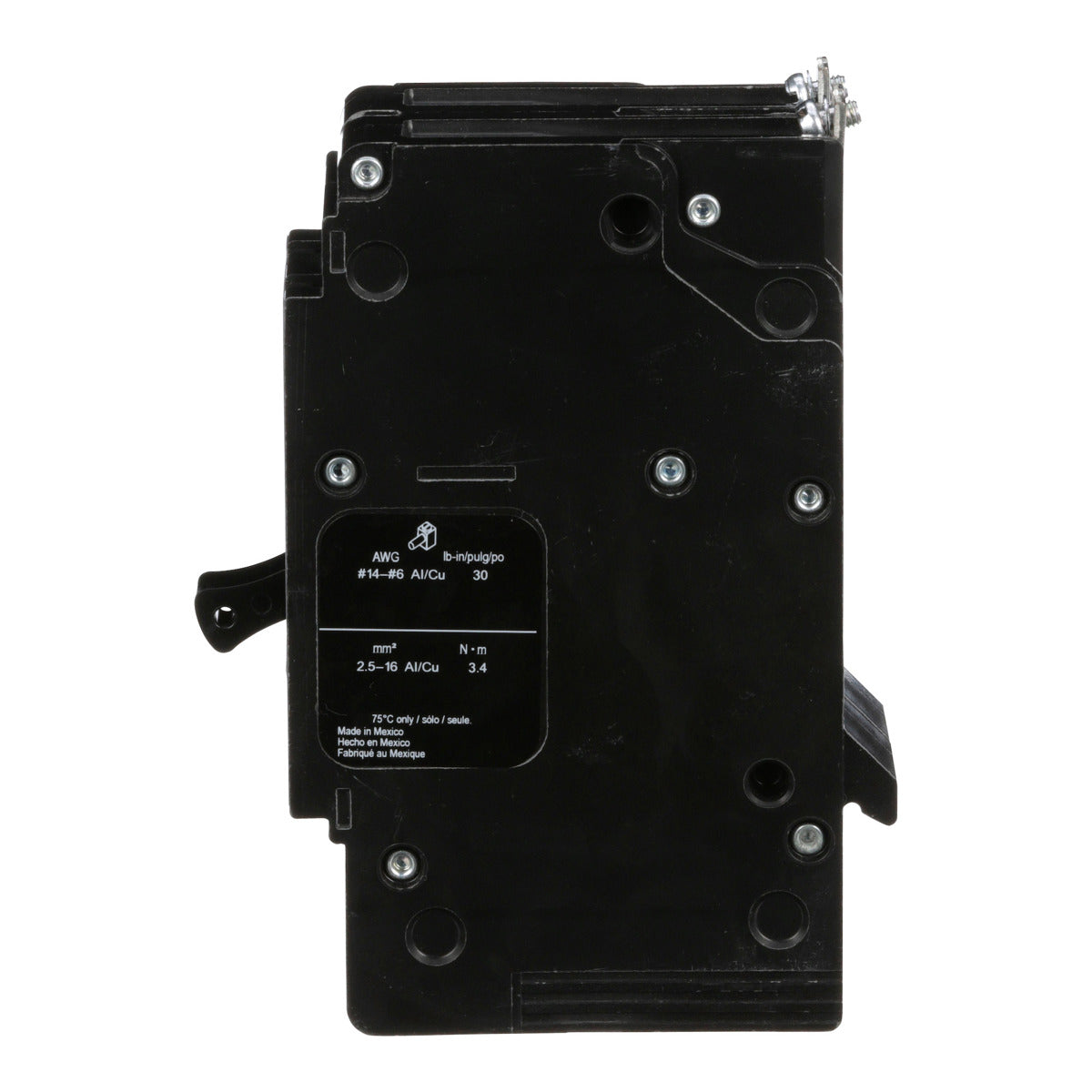

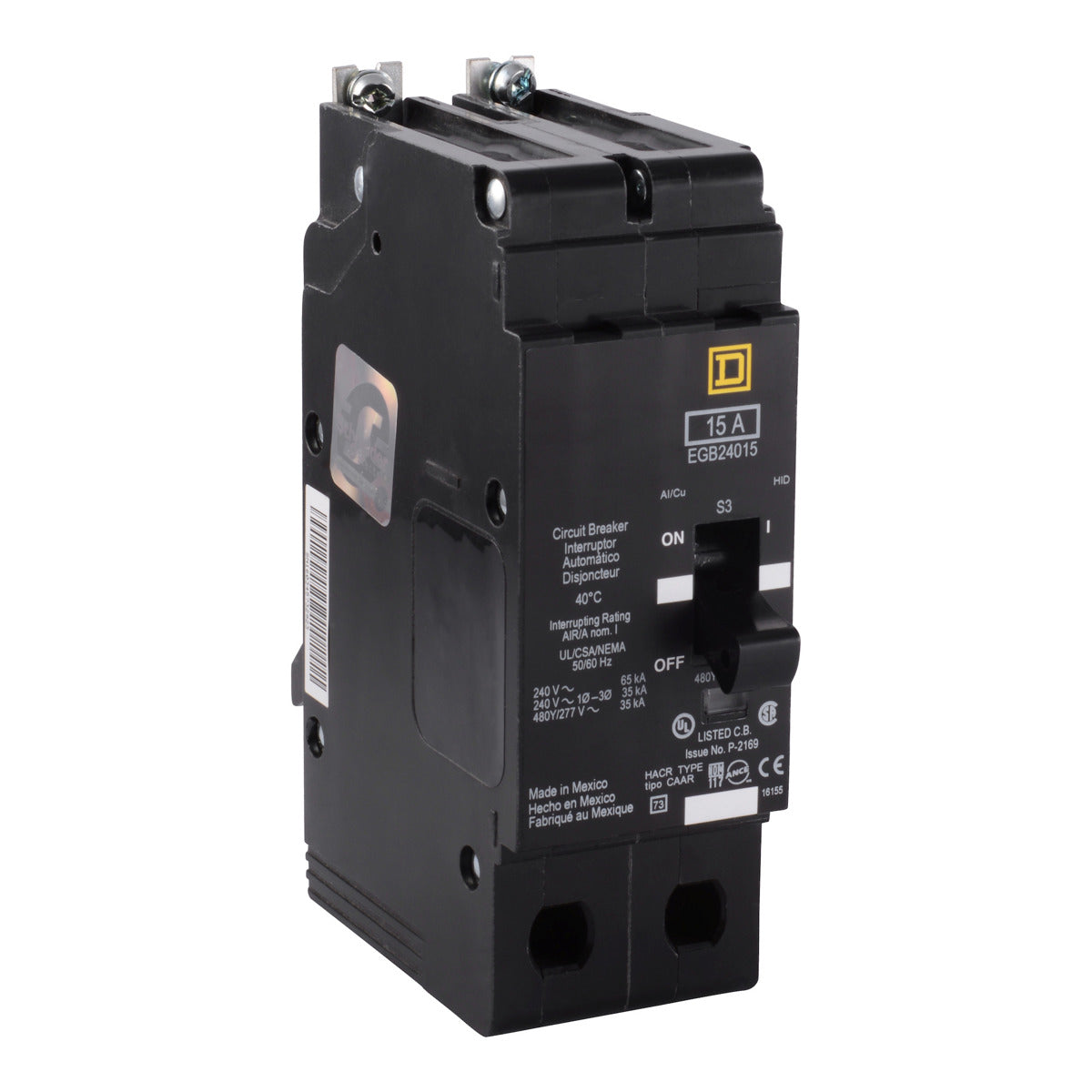

Square D EGB24015 Mini Circuit Breaker 15 Amp 2-Pole 480Y/277VAC

Product Description

This Square D EGB24015 is a two-pole, fifteen amp thermal magnetic miniature circuit breaker designed for power distribution applications. The device operates at a voltage of four hundred eighty volts Y/ two hundred seventy-seven volts AC. It is suitable for use in Square D NF panelboards, providing essential overload and short-circuit protection.

• UL Listed for high intensity discharge.
• Includes a thermal-magnetic trip unit with a signal indicator.
• Rated for a maximum interrupt of sixty-five kA at one hundred twenty volts AC.

Product Highlights

This product is HACR rated, making it ideal for a variety of commercial and industrial applications. The device is calibrated for operation at forty degrees Celsius and includes mounting bolts for secure installation.

Product Information

Standard Information

• Catalog Number: EGB24015
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 277/480 VAC
• Amperage: 15 Amp
• Width: 1.96 inch
• Depth: 4.05 inch
• Height: 5.66 inch
• Weight: 3 lb
• Interrupt Rating: 35 kAIC
• Trip Type: Thermal-magnetic
• Number of Poles: 2 Pole
