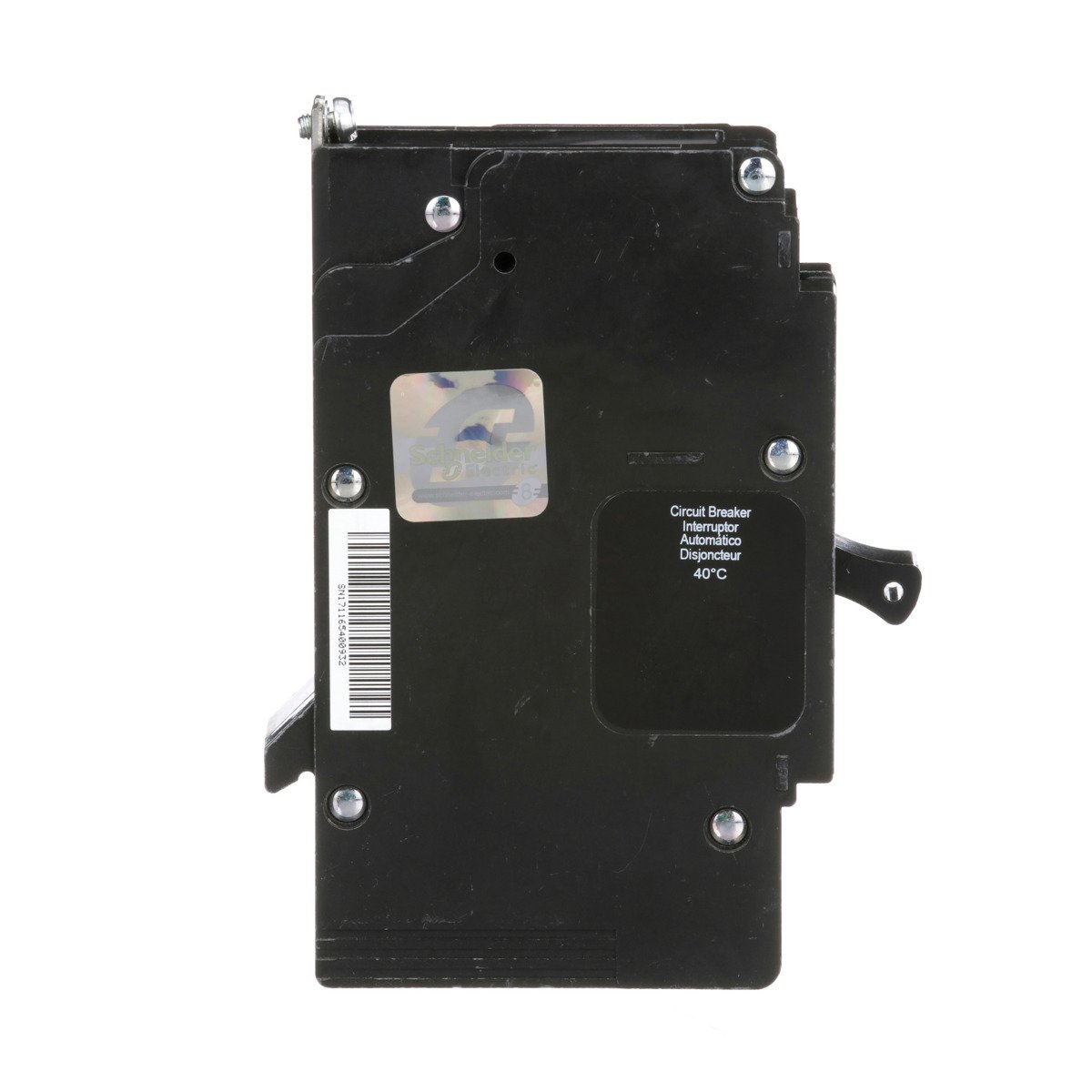

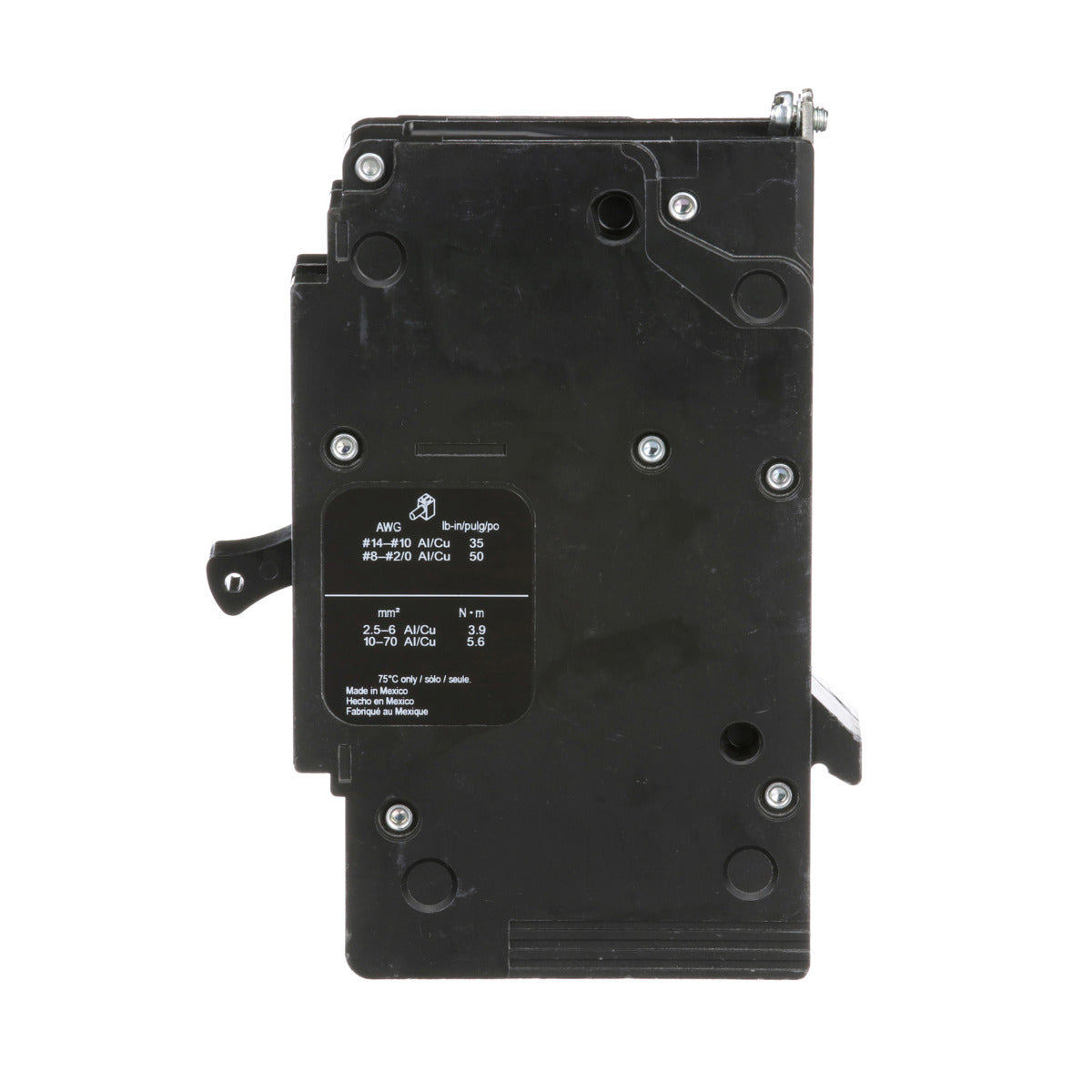

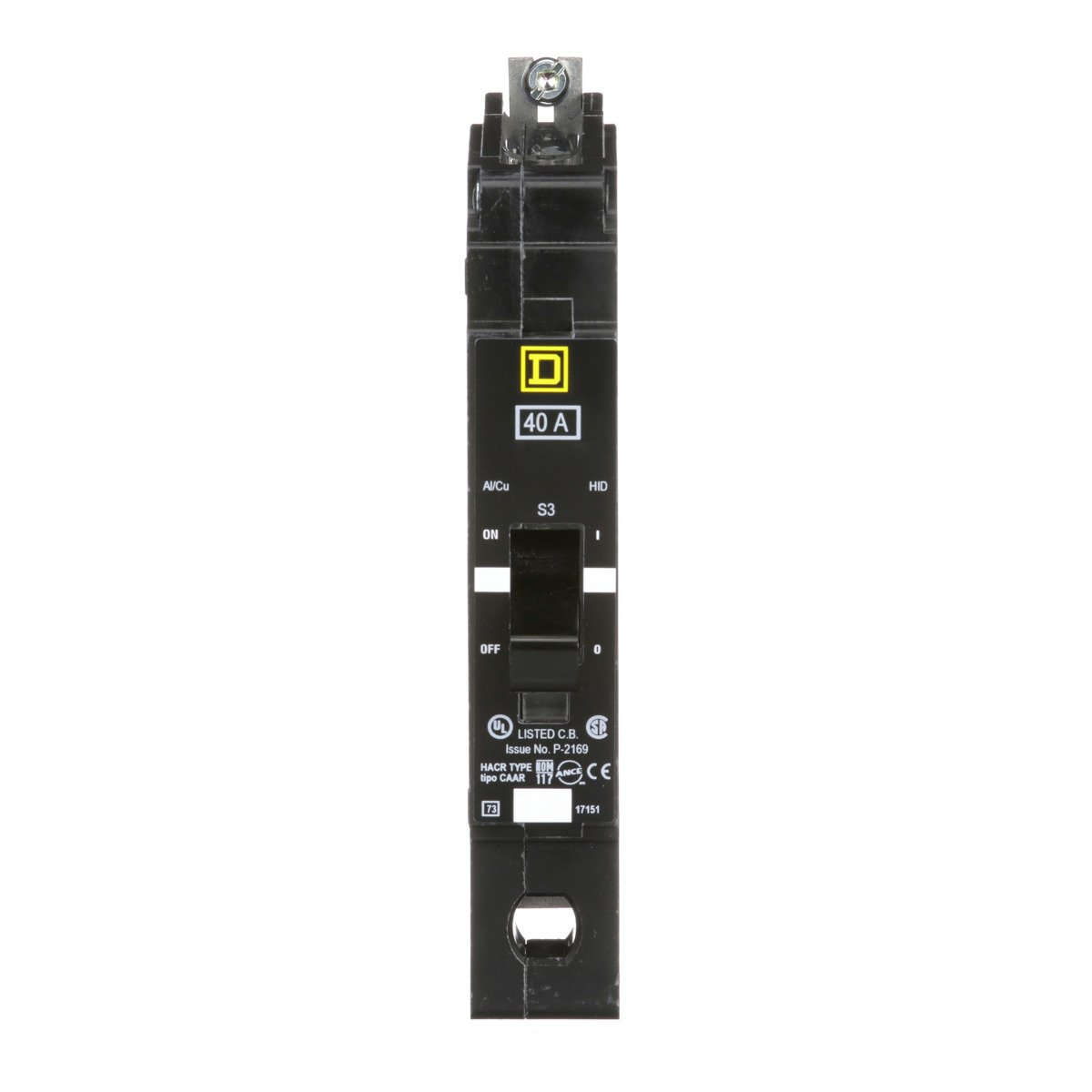

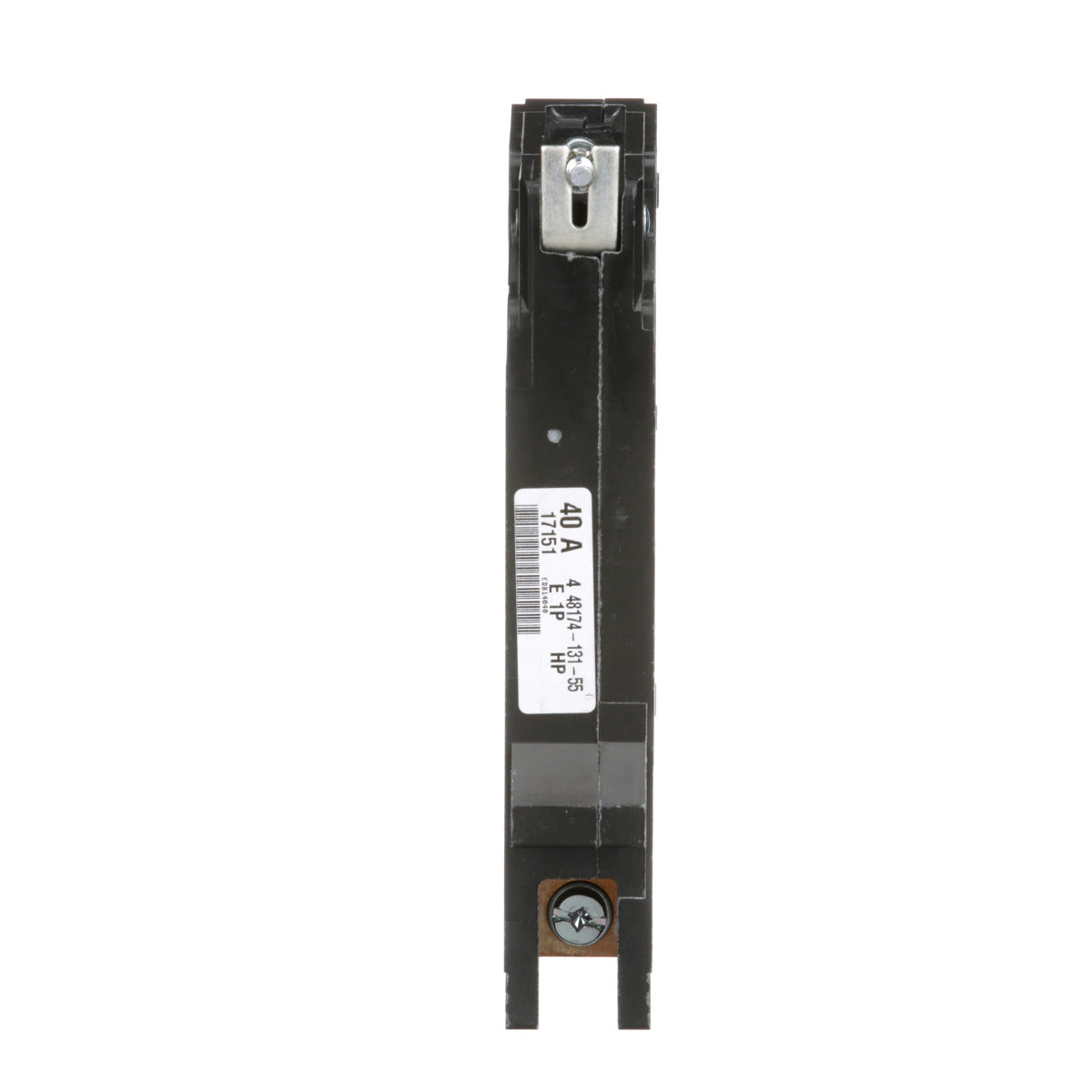

Square D EGB14040 1-Pole 40 Amp 277 Volt Thermal Magnetic Miniature Circuit Breaker

Product Description

The Square D EGB14040 is an E-Frame breaker designed for lighting panelboards. This 1-pole, 40 Amp, 277 VAC thermal-magnetic miniature circuit breaker provides overload and short circuit protection. It features a signal indicator for trip indication and is installed with mounting bolts. The device is UL Listed as High Intensity Discharge and HACR rated.

• E-Frame Breaker for Lighting Panelboards
• Superior overload and short circuit protection
• Thermal-magnetic trip unit

Product Highlights

Provides overload and short circuit protection with thermal-magnetic trip unit and signal indicator. UL Listed as High Intensity Discharge and HACR rated.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: EGB14040
• Country of Origin: Mexico

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• Frame: E-FRAME
• Voltage: 277 VAC
• Amperage: 40 Amp
• Sub Brand: EGB
• Trip Type: Thermal-magnetic
• Applications: HID rated;HACR rated
• Mounting Type: Bolt-On
• TC Connection: AWG 12...AWG 2/0 ALUMINIUM-AWG 14...AWG 2/0 COPPER,LUGS ALUMINIUM
• Certifications: CULus
• Number of Poles: 1 Pole
• Interrupt Rating: 35, 65 kAIC
• Line Rated Current: 40 A
• Operating Temperature: 40 degrees C
• Catalog Number: EGB14040
• Manufacturer: Schneider Electric
• UPC: 785901311102
• GTIN: 00785901311102
• Series: EGB
• Features: Mercury Free
• Standards: cULus
• Frame Size: G; E-Frame
• Application: HID rated Applications, HACR rated Applications
• For Use With: NF Panelboard
• Product Type: Miniature Circuit Breaker 277V 40A
• Max. Wire Size: 2/0 AWG (Cu/Al)
• Min. Wire Size: 12 AWG (Al), 14 AWG (Cu)
• Max. AIR Rating: 65 kA
• AC Voltage Rating: 277VAC
• Terminal Connection: Lug
• High Amp Trip Setting: 1800 A
• Circuit Breaker Mounting Style: Bolt-On
• Current Rating: 40 A
• Max Operating Temperature: 40 °C
• Voltage Rating (AC): 277 V
• Packaging: Bulk
• Environmental Classification: REACH SVHC No
• RoHS: Compliant
