Description

Product Description

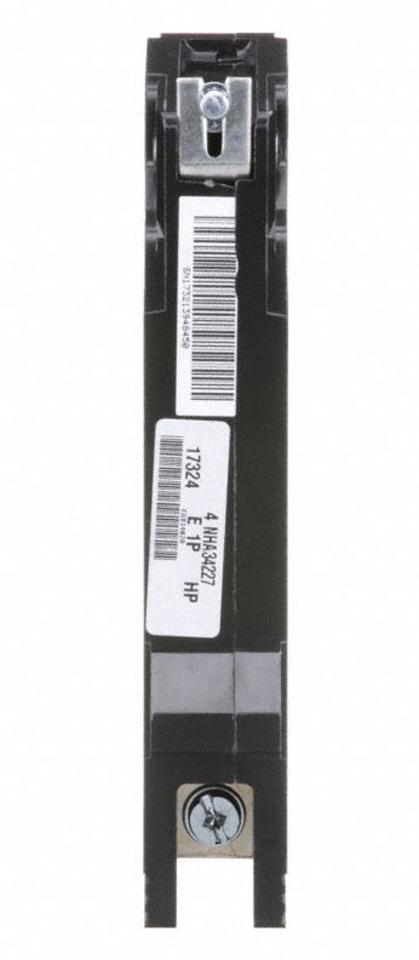

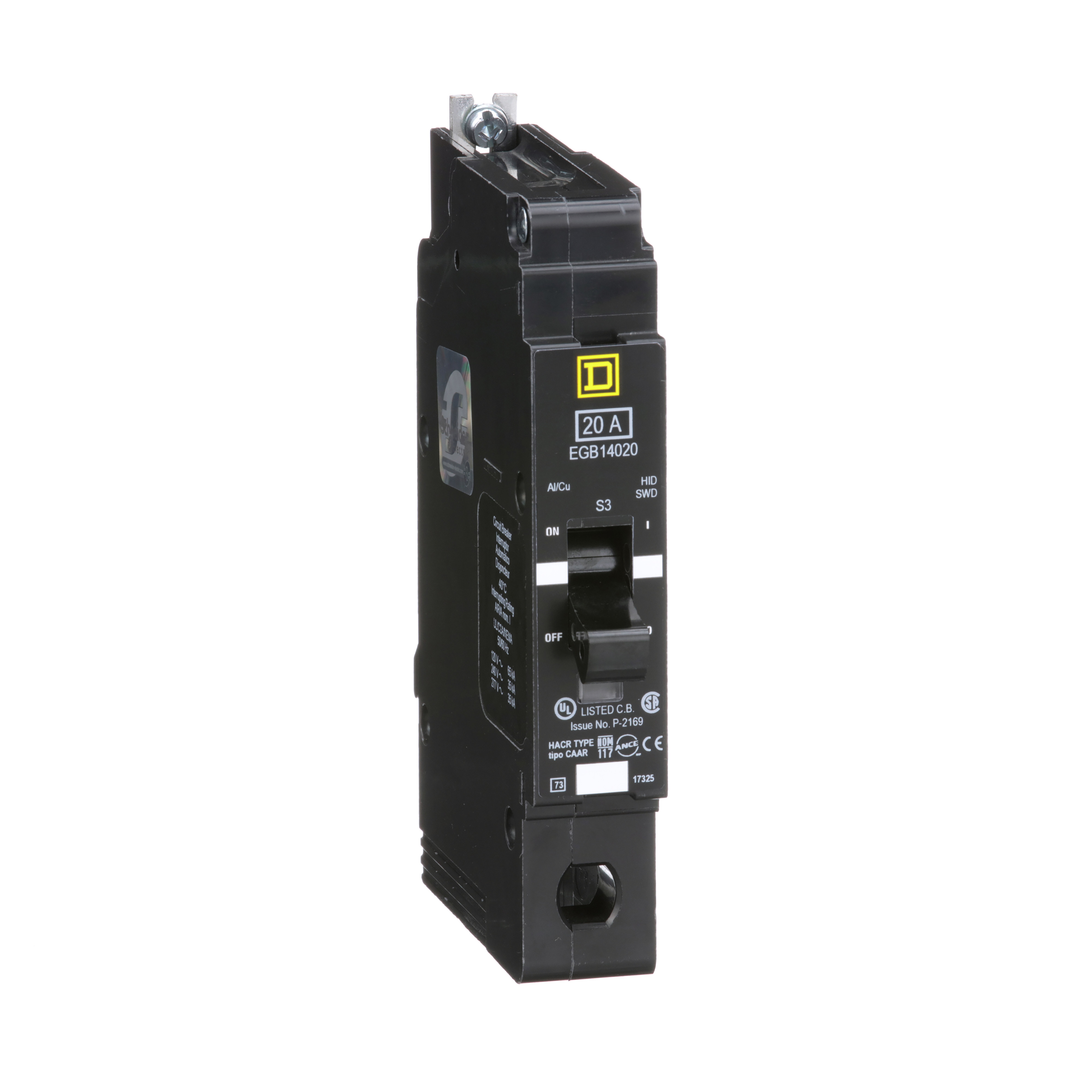

The SQUARE D EGB14020 is an E-Frame breaker for lighting panelboards. This 1-pole bolt-on breaker is rated at 20 A at 277 VAC. It features a thermal-magnetic trip unit and a signal indicator. The circuit breaker is HID rated, Switching Duty rated and HACR rated and is suitable for Square D NF Panelboards.

  • Thermal-magnetic trip unit
  • Signal indicator for trip indication
  • Breaking capacity of 65 kA at 120 VAC

Product Highlights

Miniature circuit breaker with thermal-magnetic trip unit, signal indicator, and a 65kA breaking capacity at 120 VAC.

Product Information

Standard Information

  • Brand: SQUARE D
  • Manufacturer Part Number: EGB14020
  • Country of Origin: Mexico
Technical Specifications
Type
Miniature circuit-breaker
Brand
Square D
Frame
E-FRAME
Width
0.98 in
Height
5.66 Inch
Length
4.05 Inch
Voltage
277 VAC
Amperage
20 Amp
Sub Brand
EGB
Trip Type
Thermal-magnetic
Trip Range
875 A
Module Type
E-Frame
Applications
HACR rated;HID rated;Switching Duty rated
Mounting Type
Bolt-On
TC Connection
LUGS #12 TO #6 AWG(AL) - #14 TO #6 AWG(CU)
Certifications
CULus
Number of Poles
1 Pole
Interrupt Rating
35 kAIC
Number of Spaces
1
Line Rated Current
20 A
Catalog Number
EGB14020
Manufacturer
Schneider Electric
Country of Origin
Mexico
Made in USA
No
UPC
785901072973
GTIN
00785901072973
Poles
1
Breaker Type
Bolt-on
Trip Unit
Thermal-magnetic
Breaking Capacity
65 kA at 120 VAC
Hold Current
270 A
Trip Current
875A
Terminal Lug Rating (Aluminium)
AWG 12...AWG 6
Terminal Lug Rating (Copper)
AWG 14...AWG 6
Voltage Rating
120/240/277 VAC at 50/60 Hz (UL/CSA), 240/415 VAC at 50/60 Hz (IEC)
Current Rating
20 Ampere
Installation
Bolt-On
Application
Lighting
Used On
Class 515 NF Series Panelboard
Approval
UL, CSA, NOM 117
Frame Type
E
Tripping Method
Thermal Magnetic
Item
Miniature Circuit Breaker
Series
EGB
Features
Mercury Free
Standards
cULus
For Use With
NF Panelboard
Product Type
Miniature Circuit Breaker 277V 20A
Max. Wire Size
6 AWG (Cu/Al)
Min. Wire Size
12 AWG (Al), 14 AWG (Cu)
Max. AIR Rating
65 kA
AC Voltage Rating
277VAC
Terminal Connection
Lug
High Amp Trip Setting
875 A
Circuit Breaker Mounting Style
Bolt-On
ECCN
EAR99
UNSPSC
39121603
AWG Range
AWG 12...AWG 6
Rated Voltage
277V ac
Torque
3.4-3.4 N.m
No. of Spaces
1
AIC rating
35kA@480V
Functions
LI - Long-Time and Instantaneous Trip
Panel Type
NF panelboard
Certification
cULus
Wire Size
AWG 14 to AWG 6, AWG 12 to AWG 6, Copper/Aluminum
IGCC
4897
Brand Name
125 A Frame EDB-EGB-EJB
Connection
Lugs aluminium;AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper
Family group
MOTOR CONTROL
Protection Type
short-circuit || overload
Special Features
Trip indicator
WES Product code
2610089920
Tightening Torque
3.4-3.4 N.m 2.5-16 mm (AWG 14...AWG 6)
Breaking Capacity Code
G
Holding Current - Metric
270 A
Number Of Spaces Required
1
Trip Unit Rating - Metric
875 A
Line Rated Current - Metric
20 A
Range Of Product
125 A Frame EDB-EGB-EJB
Product Or Component Type
miniature circuit-breaker
Trip Unit Rating
875-875 A
Device Short Name
EGB
Holding Current
270 A
Product Destination
NF panelboard
Electrical Connection
lugs aluminium
Circuit Breaker Application
HACR rated || HID rated || Switching Duty rated
Mounting Mode
bolt-on
Local Signalling
trip indicator
Awg Gauge
AWG 12...AWG 6 aluminium || AWG 14...AWG 6 copper
[Ue] Rated Operational Voltage
277 V AC
Ambient Air Temperature For Operation
40 °C
