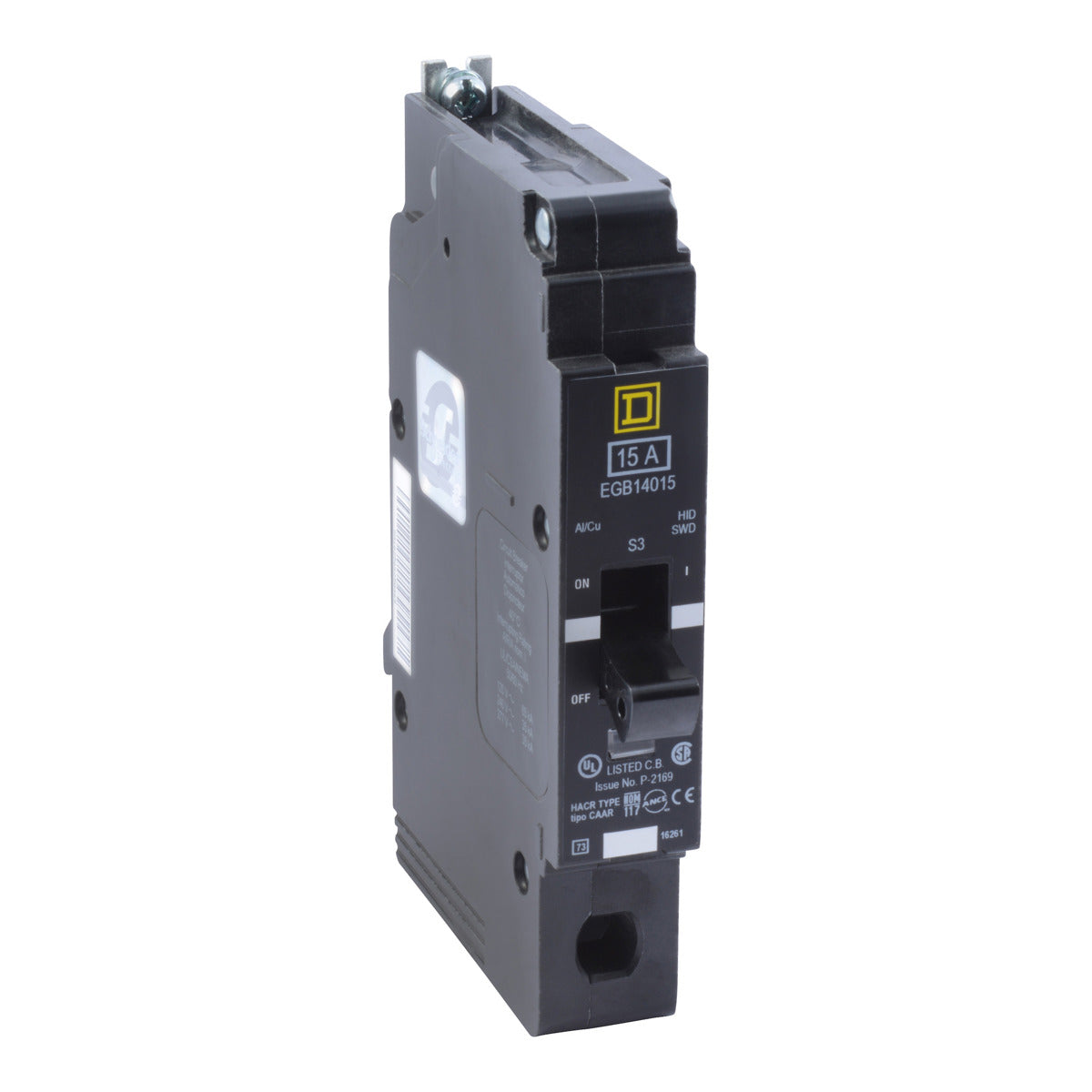

Square D EGB14015 miniature circuit breaker 15 amp 277 volt

Product Description

The Square D EGB14015 is an E-Frame miniature circuit breaker designed for lighting panelboards. This bolt-on circuit breaker provides overload and short circuit protection with a thermal-magnetic trip unit and signal indicator. It has a maximum voltage rating of 277 VAC, a 15A current rating, and is suitable for Square D NF Panelboards. The breaker is UL Listed for switching duty and High Intensity Discharge and is HACR rated.

• E-Frame breaker for lighting panelboards.
• Provides overload and short circuit protection.
• Features a thermal-magnetic trip unit and signal indicator.

Product Highlights

The Square D EGB14015 is a reliable miniature circuit breaker with a 277 VAC voltage rating, 15A current rating, and a bolt-on mounting style.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: EGB14015
• Country of Origin: Mexico

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• Frame: E-FRAME
• Width: 0.98 in
• Height: 5.66 in
• Length: 5.66 in
• Voltage: 277 VAC
• Amperage: 15 Amp
• Sub Brand: EGB
• Trip Type: Thermal-magnetic
• Trip Range: 875 A
• Module Type: E-Frame
• Applications: HID rated;Switching Duty rated;HACR rated
• Mounting Type: Bolt-On
• TC Connection: LUGS #12 TO #6 AWG(AL) - #14 TO #6 AWG(CU)
• Certifications: CULus
• Number of Poles: 1 Pole
• Interrupt Rating: 35 kAIC
• Line Rated Current: 15 A
• Catalog Number: EGB14015
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Made in USA: No
• UPC: 785901324980
• GTIN: 00785901324980
• Phase: Single
• Series: EGB
• Mounting: Bolt on
• Standards: cULus
• Frame Size: 125A/EGB
• Application: HID rated Applications, Switching Duty rated Applications, HACR rated Applications
• For Use With: Square D NF Panelboards
• Product Type: Miniature Circuit Breaker
• Max. Wire Size: 6 AWG
• Min. Wire Size: 12 AWG (Al), 14 AWG (Cu)
• Max. AIR Rating: 35kA at 277V AC
• AC Voltage Rating: 277V AC
• DC Voltage Rating: Not Rated
• Terminal Connection: Lug
• Circuit Breaker Type: Standard
• High Amp Trip Setting: 875 A
• Circuit Breaker Actuator: Toggle
• Length (Straight Wireway): 5.66 in
• Circuit Breaker Mounting Style: Bolt On
• Compatible Panelboard/Load Center Series: NF
• Current Rating: 15 Ampere
• Interrupting Rating: 35 Kiloampere at 480 Star/277 VAC
• Trip Setting: 270 to 875 Ampere
• Used On: NF Merchandised Panelboards
• Approval: UL
• Frame Type: E
• Terminal Wire Size: 14 to 6 AWG (Copper/Aluminum)
• Poles: 1
• Hold Current: 270A
• UL Listed: Switching duty and High Intensity Discharge
• HACR Rated: Yes
