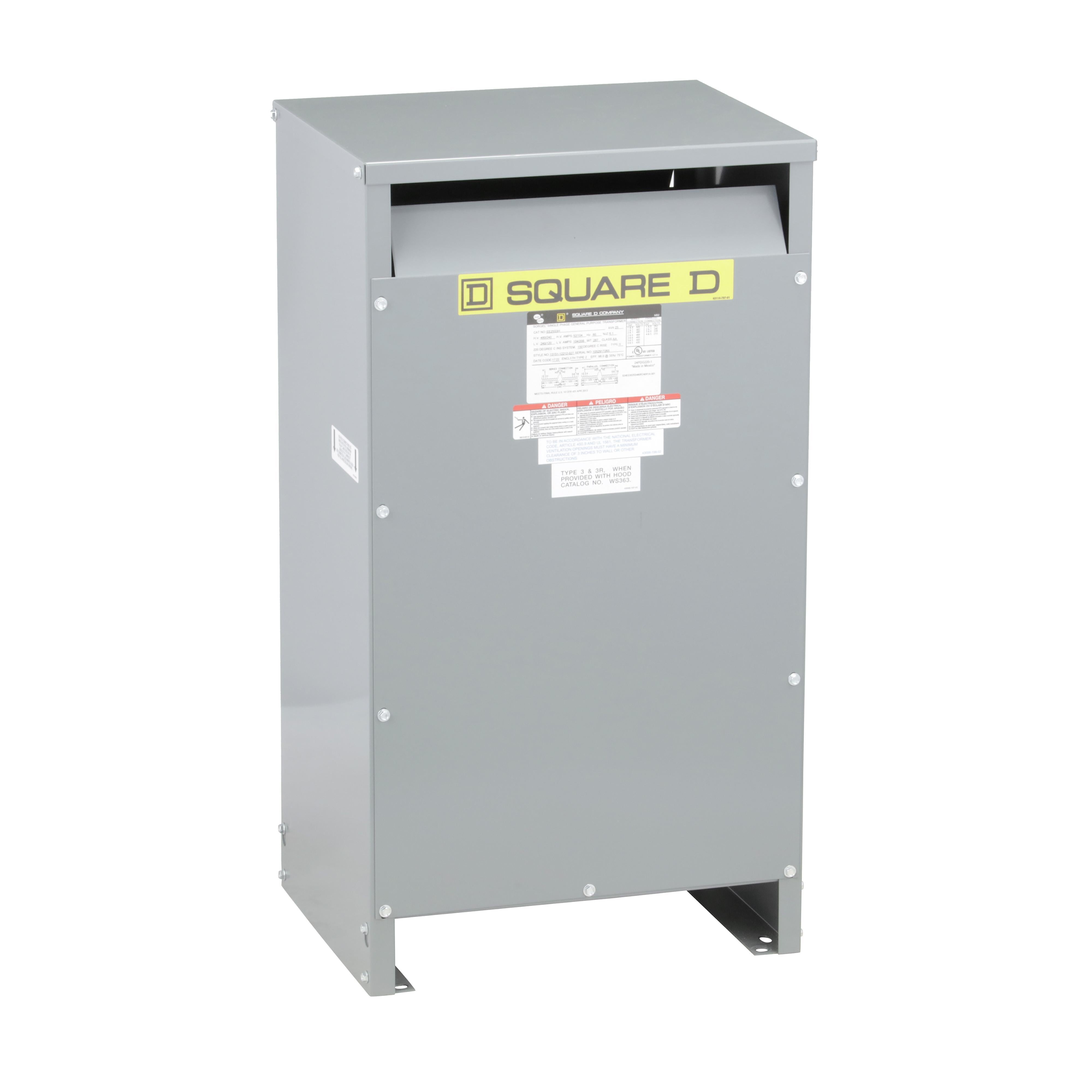

Square D EE25S3H 25 kVa Energy Efficient Transformer

Product Description

The Square D EE25S3H is an energy-efficient, low voltage dry-type distribution transformer. Air-cooled with aluminum windings, this 1-phase transformer has a 25kVA power rating. It features a primary voltage of 240 x 480V and a secondary voltage of 120/240V. The unit has a NEMA 2 enclosure rating and an 18-month warranty.

• Low voltage dry-type distribution transformer
• Air-cooled
• Aluminum windings

Product Highlights

Energy efficient transformer with NEMA 2 enclosure, 25kVA power rating, and 18-month warranty.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: EE25S3H
• Country of Origin: Mexico

Technical Specifications

• Type: Energy Efficient Transformer
• Brand: Square D
• Depth: 16 Inch
• Width: 20 in
• Height: 37 Inch
• Voltage: 480 Volt
• Material: Aluminum
• Power Rating: 25 kVA
• Enclosure Type: NEMA 2
• Primary Voltage: 240 x 480 V
• Number of Phases: 1 Phase
• Secondary Voltage: 120/240 V
• Temperature Rating: 150 DEGREES C
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Number of Taps: 6 2.5 % 2+ 4-
• Frequency Rating: 60 Hz
• Winding Type: Aluminum
• Temperature Rise: 150 Deg C
• Mounting: Floor
• Application: Indoor/Outdoor
• Approval: UL 1561, CSA C22.2
• Applicable Standard: NEMA ST-20
• Insulation Temperature: 220 Deg C
• Enclosure Material: Steel
• Rated Power In Va: 25 kVA
• Nema Degree Of Protection: NEMA 2
• Mounting Type: Ceiling/Floor
• Efficiency: 98 %
• Housing Material: Aluminum/Steel
• Insulation: 220 deg C
