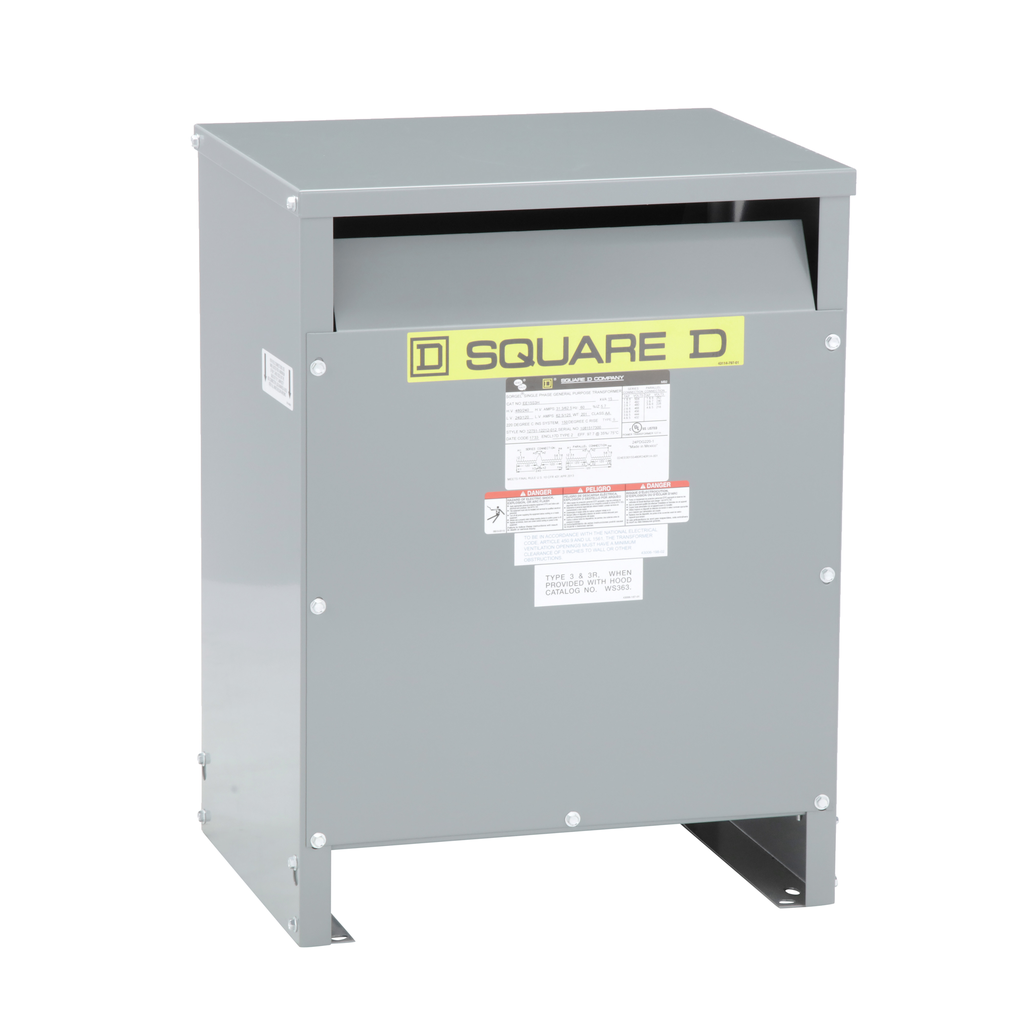

Square D EE15S3H Energy Efficient Transformer 15 kVA 240 x 480 VAC Primary 120/240 VAC Secondary

Product Description

The Square D EE15S3H is a 15 kVA energy efficient transformer designed for effective power distribution. It operates with a primary voltage of two hundred forty by four hundred eighty VAC and delivers a secondary voltage of one hundred twenty/two hundred forty VAC. This transformer meets the requirements for low voltage dry-type applications, with a maximum input voltage of six hundred VAC. This unit is air-cooled and does not use oil for cooling, making it suitable for various environments. It features aluminum windings and a NEMA 2 rated enclosure. The EE15S3H also includes options for low temperature rise, available in one hundred fifteen degrees Celsius and one hundred fifty degrees Celsius ratings.

• Energy efficient with low temperature rise options
• Primary voltage of 240 x 480 VAC, secondary voltage of 120/240 VAC
• Compliant with environmental standards

Product Highlights

This transformer is part of Schneider Electric's Lean Power product line, suitable for various industrial and commercial applications.

Product Information

Standard Information

• Catalog Number: EE15S3H
• Brand: Square D

Technical Specifications

• Primary Voltage: 240 x 480 V
• Secondary Voltage: 120/240 V
• Power Rating: 15 kVA
• Phase: 1
• Enclosure Type: NEMA 2
• Temperature Rating: 150 degrees Celsius
• Weight: 214.99 lb
• Warranty Length: 18 months
• Country of Origin: Mexico
