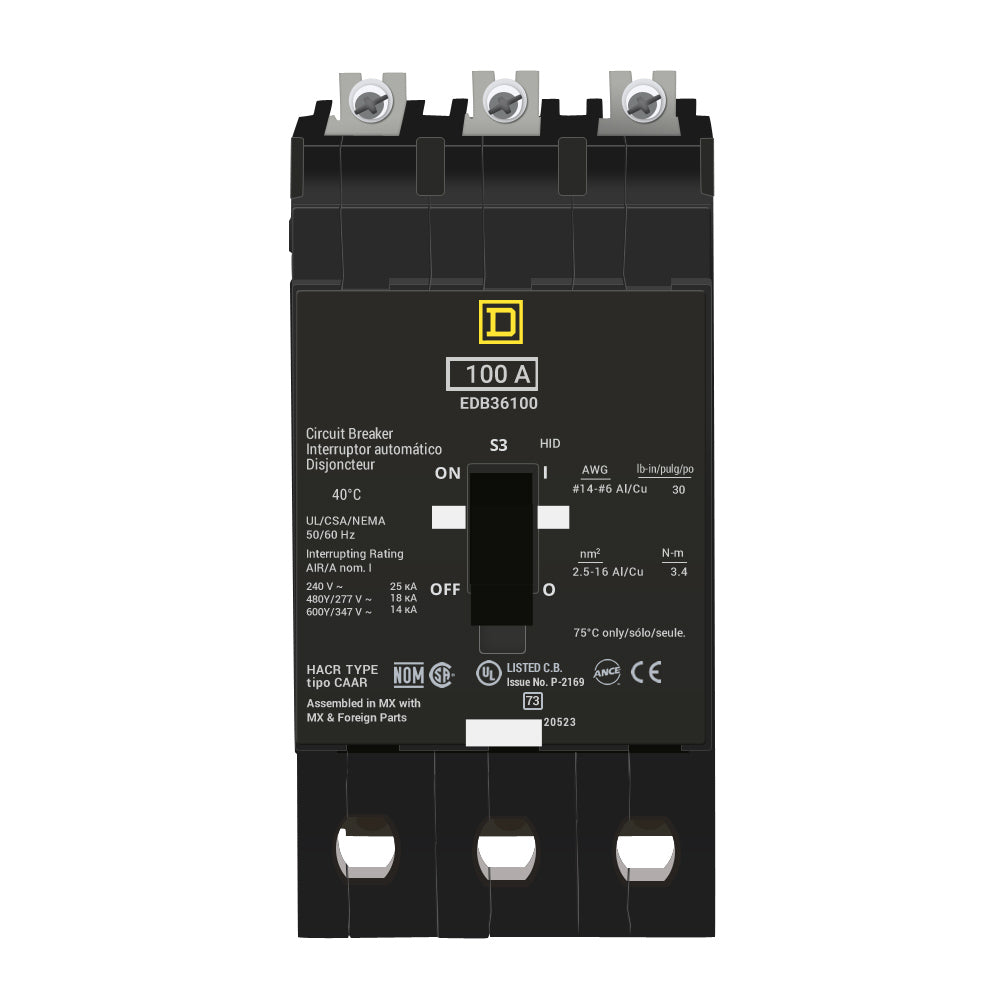

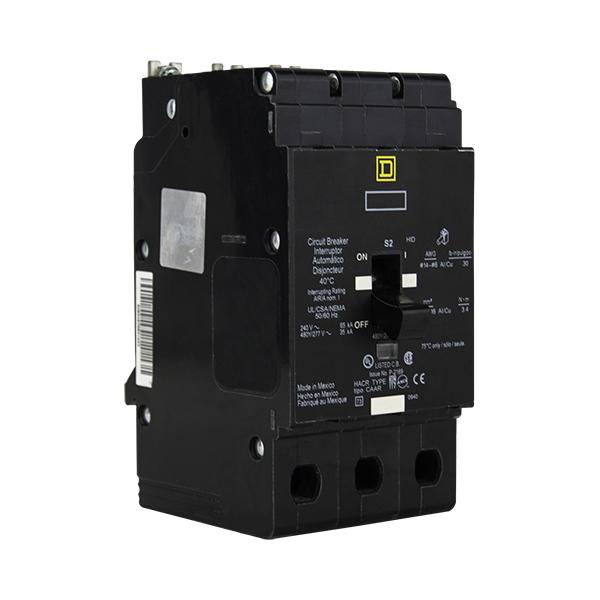

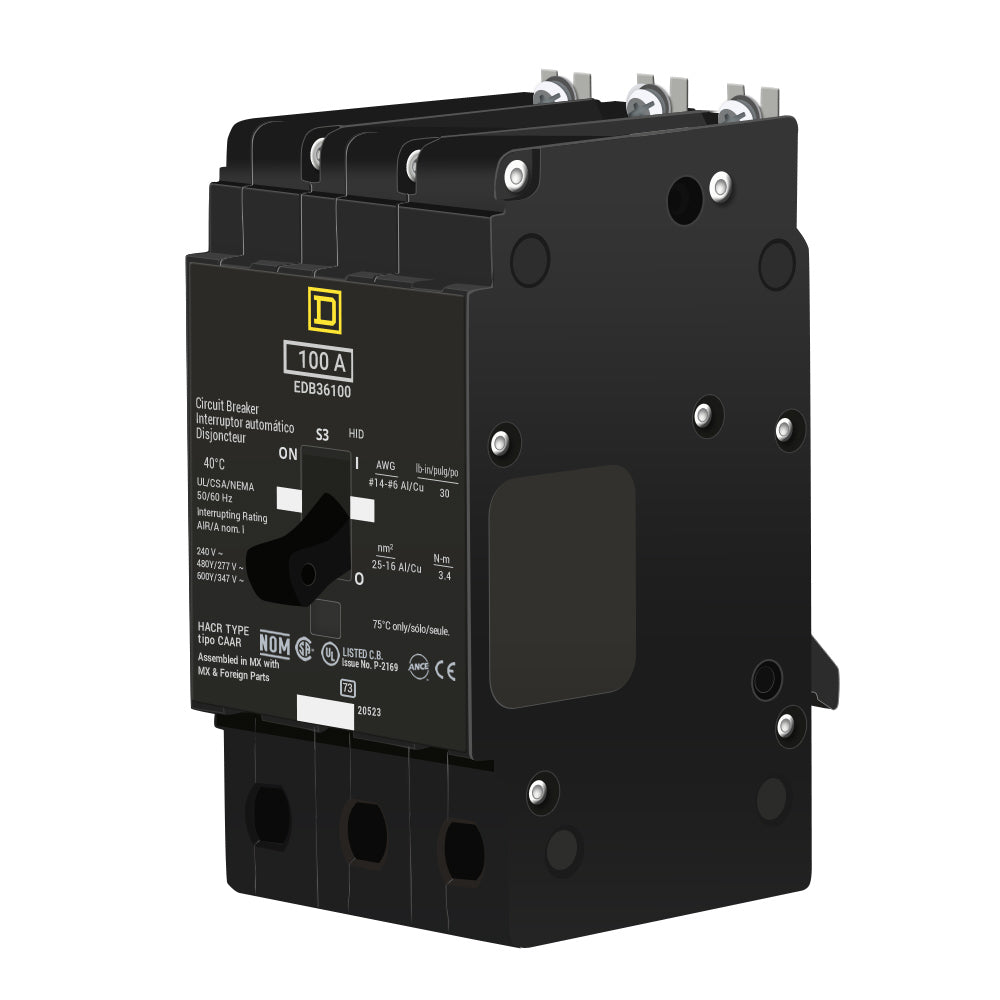

The Square D EDB36100 is an E-Frame lighting panelboard circuit breaker proven effective and reliable for Square D NF Panelboards. Designed to offer superior overload and short circuit protection, it features a thermal-magnetic trip unit and a signal indicator. This 3-pole breaker operates at 600Y/347 VAC and is HACR rated.

  • E-Frame Breaker
  • Superior overload and short circuit protection
  • Thermal-magnetic trip unit

Product Highlights

The Square D EDB36100 circuit breaker provides reliable circuit protection with thermal-magnetic tripping and clear trip indication.

Product Information

Standard Information

  • Brand: SQUARE D
  • Manufacturer Part Number: EDB36100
  • Country of Origin: Mexico
Technical Specifications
Type
Circuit-breaker
Brand
Square D
Depth
4.05 Inch
Frame
E-FRAME
Width
2.94 in
Height
5.66 Inch
Length
4.05 Inch
Voltage
347/600 VAC
Amperage
100 Amp
Material
Thermoset
Enclosure
NF PANELBOARD
Sub Brand
EDB
Trip Type
Thermal-magnetic
Net Weight
4 lb
Trip Range
2300 A
Applications
HACR rated
Mounting Type
Bolt-On
TC Connection
LUGS: (1) 14 AWG-2/0 AL OR CU
Certifications
CULus
Number of Poles
3 Pole
Interrupt Rating
18, 25 kAIC
Line Rated Current
100 A
Manufacturer
Schneider Electric
Catalog Number
EDB36100
Voltage Rating
120/240/277 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz, 600 VAC Star/347 VAC at 50/60 Hz (UL/CSA), 240/415 VAC at 50/60 Hz (IEC)
Current Rating
100 Ampere
Interrupting Rating
25 Kiloampere at 120/240 VAC, 18 Kiloampere at 480 VAC Star/277 VAC or 277 VAC (UL/CSA)
Trip Setting
1000 to 2300 Ampere
Installation
Bolt-On
Application
Lighting
Used On
Class 515 NF Series Panelboard
Approval
UL, CSA, NOM 117
Frame Type
E
Size
2.94 Inch W x 4.05 Inch D x 5.66 Inch H
Tripping Method
Thermal Magnetic
Terminal Wire Size
12 to 2/0 AWG (Aluminum), 14 to 2/0 AWG (Copper)
Family
EDB Series
Pole
3
Volt
600
Phase
3
Category
Molded Case / 3-Pole
Connection
Bolt-On
Functions
LI - Long-Time and Instantaneous
Protection
Thermal Magnetic
AIC Ratings
14 kA 600Y/347 V AC
Dimensions (HxWxD)
5.66" x 2.94" x 4.05"
Protection Type
Short-Circuit / Overload
Trip Unit Rating
875 Amp
Maximum Operating Voltage
600Y/347 V AC
Mounting Mode
Bolt-On
Product Destination
Square D NF Panelboard
Electrical Connection
Aluminum Lugs
Holding Current
270 Amp
Local Signaling
Trip Indicator
Circuit Breaker Application
HID-Rated / HACR-Rated
AWG Gauge
AWG 12...AWG 6 Aluminum | AWG 14...AWG 6 Copper
Poles
3
AMPS
100
VOLTS
600
CSA LISTED
Yes
Trip Functions
LI - Long-Time and Instantaneous
