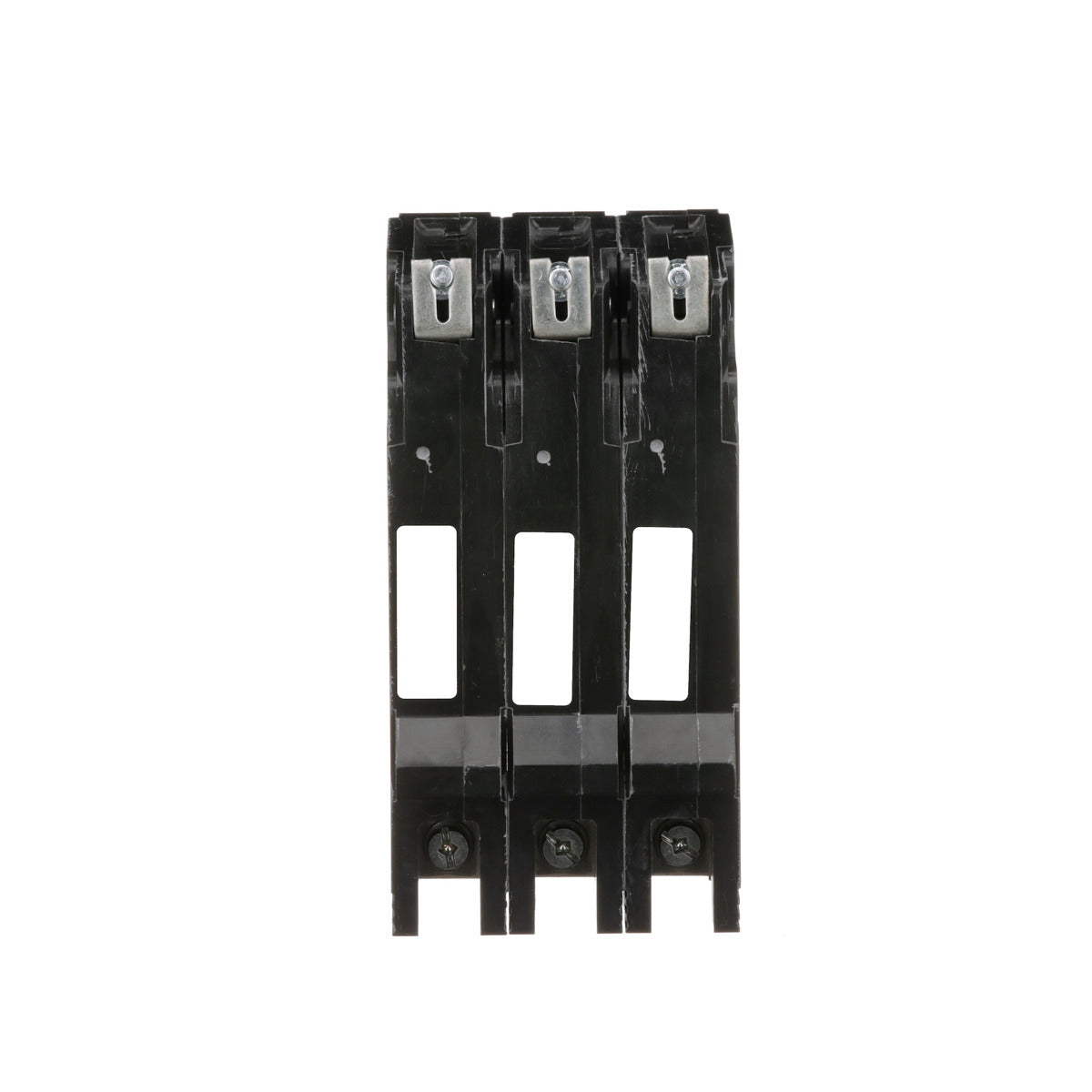

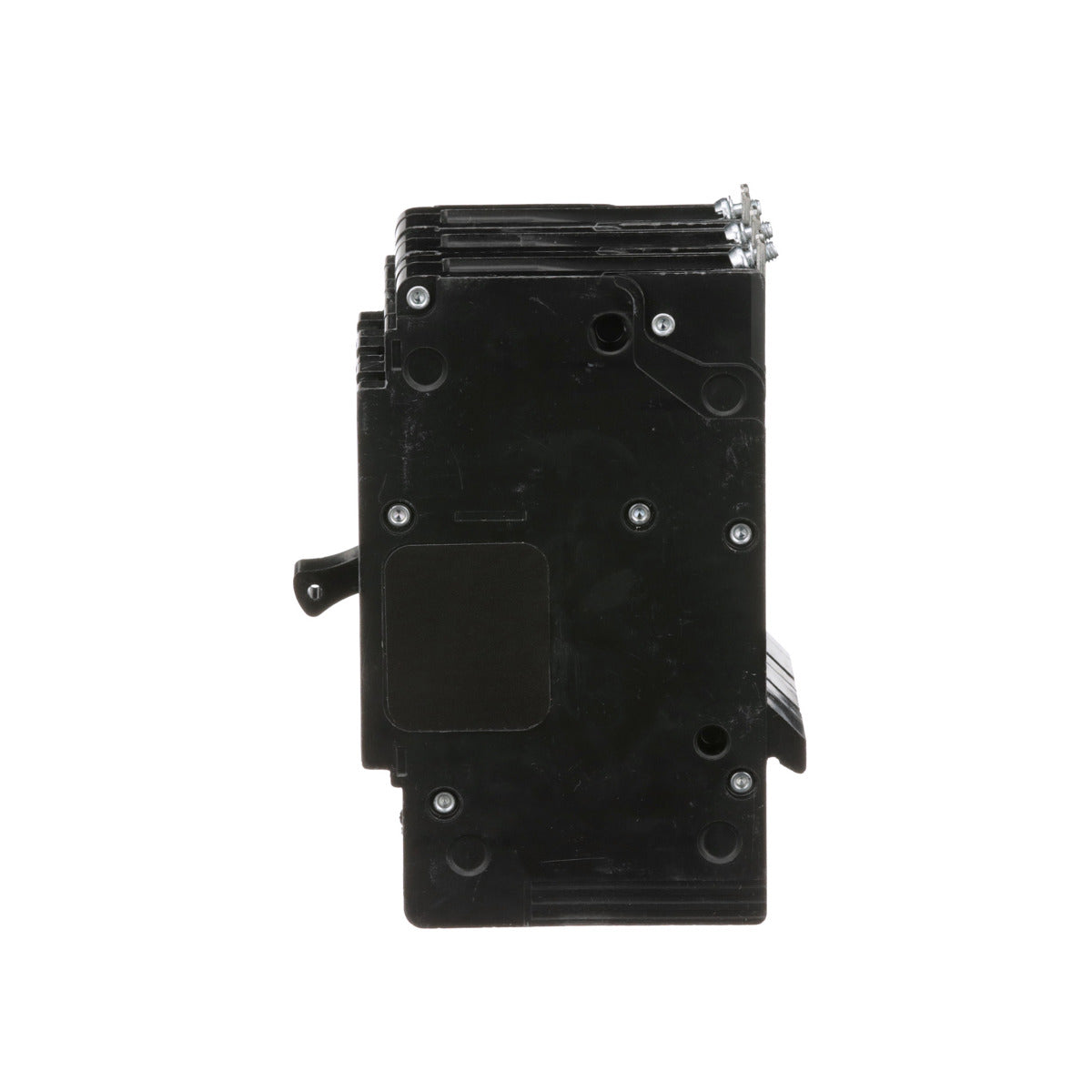

Square D EDB36060 Mini Circuit Breaker 60A 3 Pole 600Y/347VAC 25kA Max

Product Description

Square D produces the EDB36060 Mini Circuit Breaker, an essential component for electrical systems. This breaker is designed for use in Square D NF Panelboards and offers reliable protection against overloads and short circuits. The thermal-magnetic trip unit activates during fault conditions and features an indicator to show if a trip has occurred. This device operates at sixty amps with three poles, suitable for voltages up to six hundred volts Y and three hundred forty-seven volts AC. It has a maximum interrupt rating of twenty-five kA, ensuring safety in high-current situations.

• Thermal-magnetic trip unit
• Maximum voltage of 600Y/347 VAC
• HACR rated for heating, air conditioning, and refrigeration applications

Product Highlights

This circuit breaker is ideal for various electrical applications that require dependable circuit protection and can withstand significant fault levels.

Product Information

Standard Information

• Catalog Number: EDB36060
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 347/600 VAC
• Amperage: 60 Amp
• Weight: 4 lb
• Dimensions: 4.05 inches (L) x 2.94 inches (W) x 5.66 inches (H)
• Interrupt Rating: 18, 25 kAIC
• Country of Origin: Mexico
• Warranty Length: 18 months
• Mounting Type: Bolt-On
