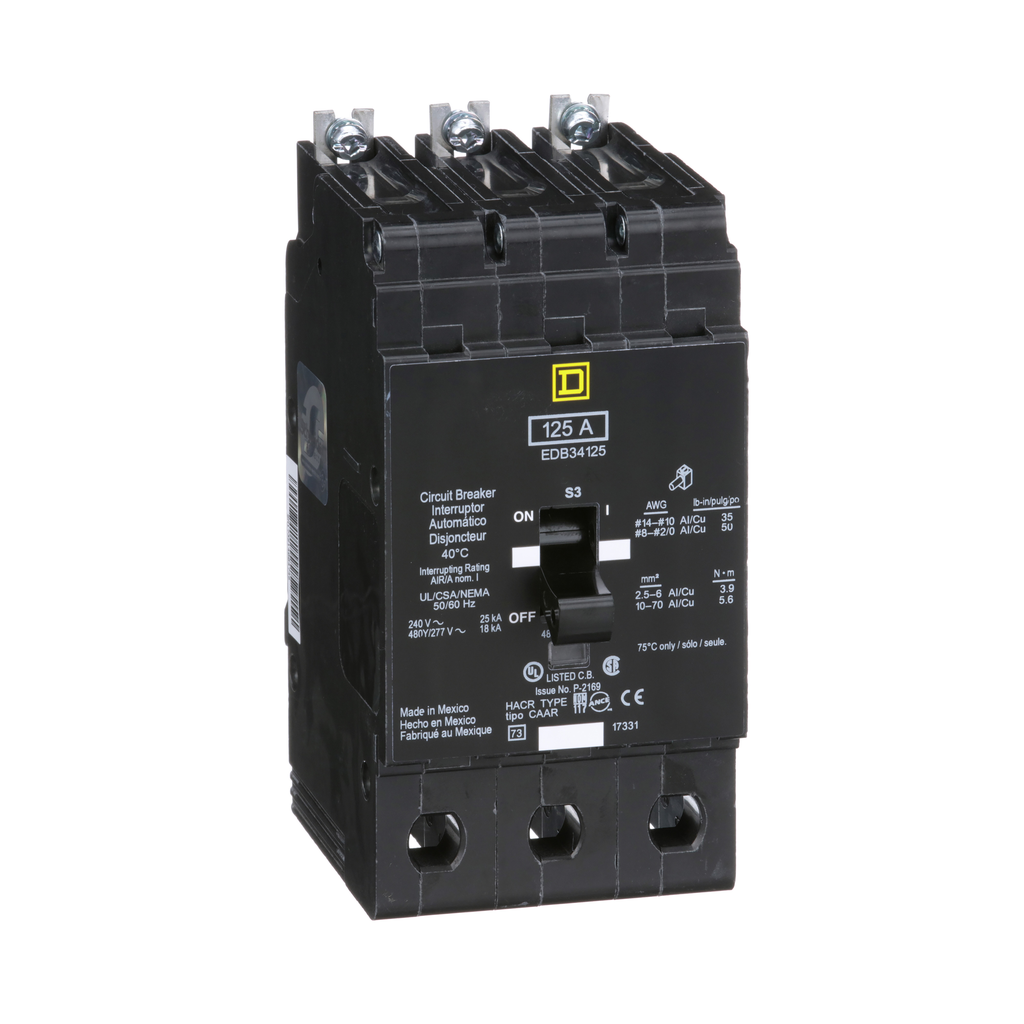

Square D EDB34125 Miniature Circuit Breaker 480Y/277 Volt 125 Amp

Product Description

The Square D EDB34125 is a miniature circuit breaker designed for efficient power distribution. Rated at 125 Amps with a system voltage of 480Y/277 VAC, this breaker ensures reliable performance in lighting panelboards. It is UL Listed and CSA rated, making it suitable for various applications.

• 3 pole bolt-on design
• Thermal-magnetic trip unit
• HACR rated for heating, air conditioning, and refrigeration circuits

Product Highlights

This circuit breaker is equipped with a signal indicator that alerts users when a trip occurs. It features aluminum lugs with a terminal rating of AWG 12 to 2/0 for aluminum and AWG 14 to 2/0 for copper. The breaking capacity is 18 kA at 480Y/277 VAC and 25 kA at 120/240 VAC.

Product Information

Standard Information

• Brand: Square D
• MPN: EDB34125

Technical Specifications

• Voltage: 480Y/277 VAC
• Amperage: 125 Amp
• Type: Miniature circuit breaker
• Depth: 4.05 inches
• Height: 5.66 inches
• Width: 2.94 inches
• Weight: 4 lb
• Number of Poles: 3 Pole
• Mounting Type: Bolt-On
• Country of Origin: Mexico
• Warranty Length: 18 months
