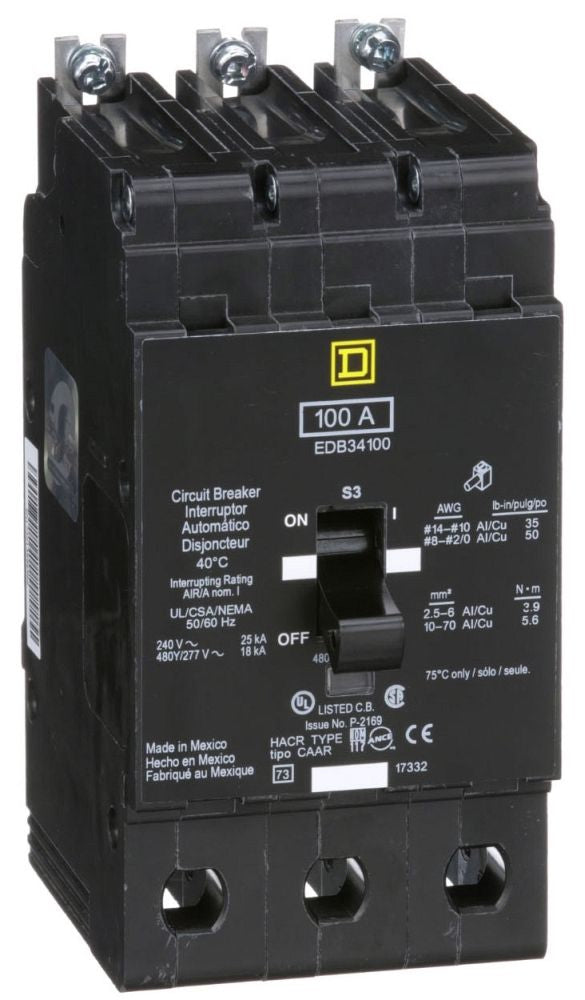

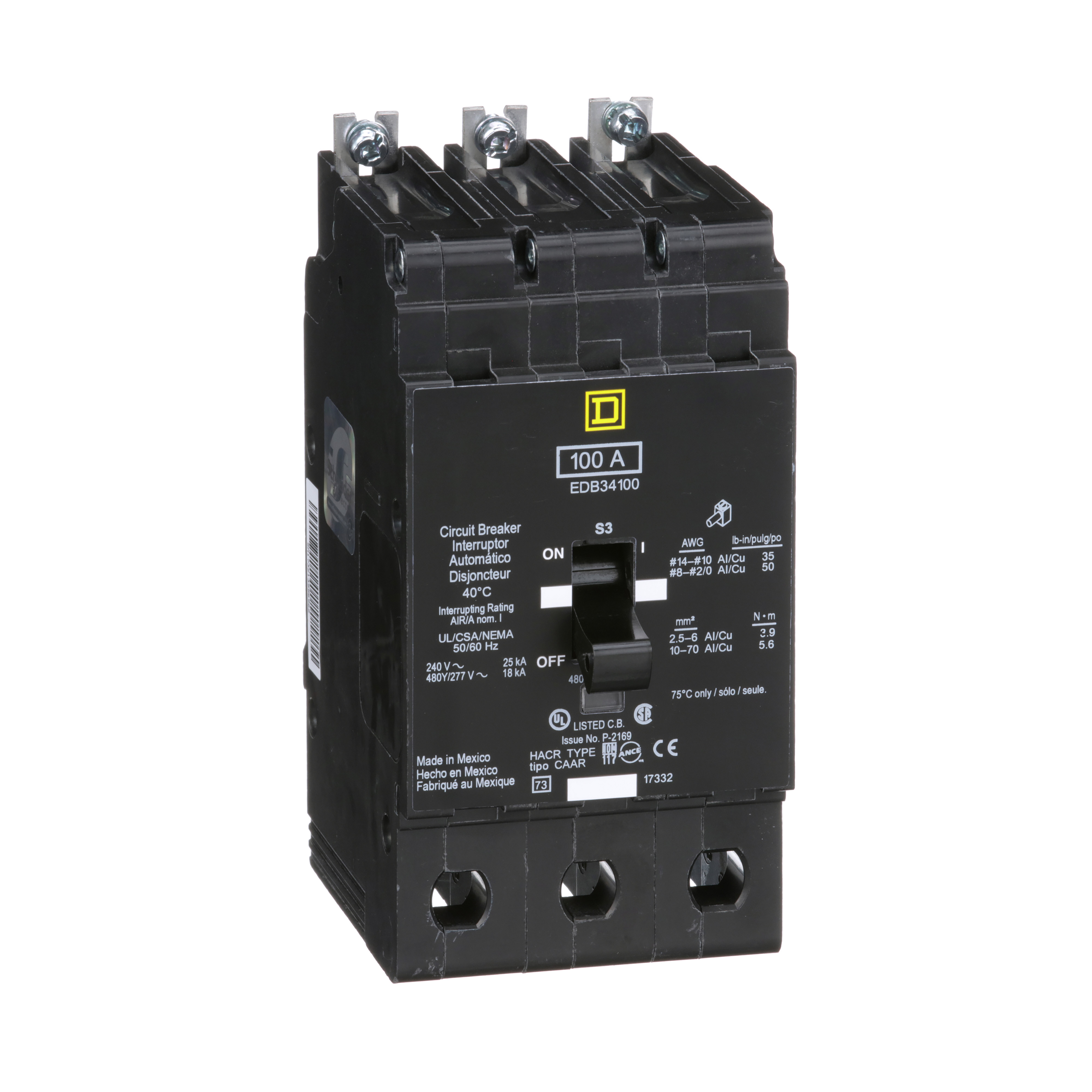

Square D EDB34100 Miniature Circuit Breaker 480Y/277 Volt 100 Amp

Product Description

The Square D EDB34100 is a miniature circuit breaker with a maximum capacity of 100 Amperes. Designed for use with 480Y/277Volt systems, it offers reliable protection against overloads and short-circuits. Ideal for integration with Square D NF panelboards, this breaker meets standards for efficiency and reliability.

• Rated for a maximum of 100 Amps
• 3 poles for diverse applications
• Capable of operating at 480Y/277 VAC

Product Highlights

This breaker incorporates HALR ratings, ensuring compatibility with HID systems. It features a hold current of 1000 Amps and a trip current of 2300 Amps, making it suitable for various applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: EDB34100
• Voltage: 277/480 VAC
• Amperage: 100 Amp
• Trip Type: Thermal-magnetic
• Interrupt Rating: 25 kA at 120 VAC
• Frame: E-Frame
• Number of Poles: 3
• Country of Origin: Mexico
