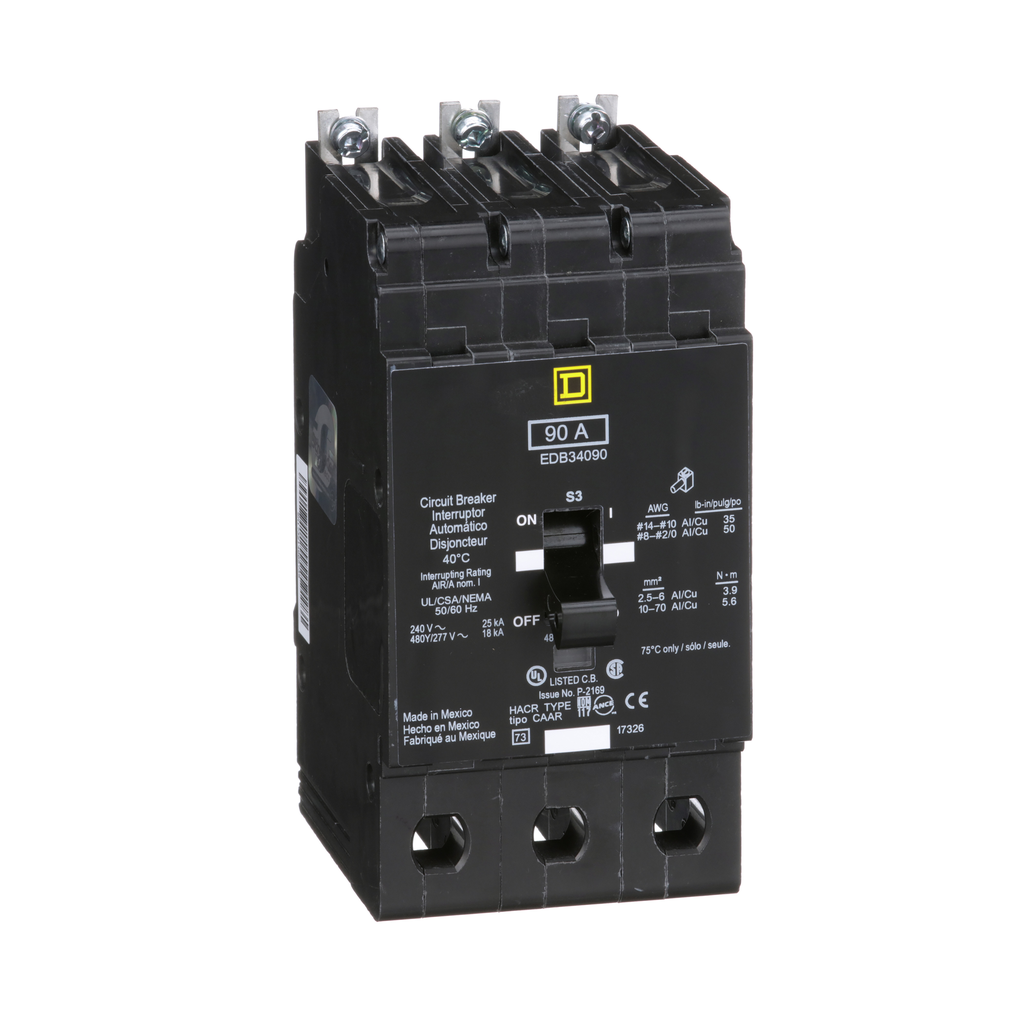

Square D EDB34090 Miniature Circuit Breaker 480Y/277 Volt 90 Amp

Product Description

The Square D EDB34090 is a miniature circuit breaker designed for reliable overload and short circuit protection in various electrical applications. This breaker features three poles and is rated for 90 amps at a voltage of 480Y/277 VAC. It includes thermal-magnetic trip technology and a signal indicator to notify when a trip occurs. The EDB34090 is HACR rated and perfect for use in Square D NF Panelboards.

• 90 amps capacity with thermal-magnetic trip unit
• HACR rated for heating, air conditioning, and refrigeration applications
• UL Listed and CSA rated for safety and compliance

Product Highlights

This E-Frame circuit breaker is engineered for bolt-on installation, making it compatible with various panelboards. The maximum interrupting capability is 25 kA at 120 VAC. The device also has a hold current of 1000 A and a trip current of 2300 A, ensuring safety in high-demand environments.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: EDB34090
• Voltage: 277/480 VAC
• Amperage: 90 A
• Number of Poles: 3
• Frame Type: E-Frame
• Width: 2.94 inches
• Height: 5.66 inches
• Depth: 4.05 inches
• Weight: 4 lb
• Warranty Length: 18 months
• Country of Origin: United States
• Certifications: CULus
• Trip Type: Thermal-magnetic
