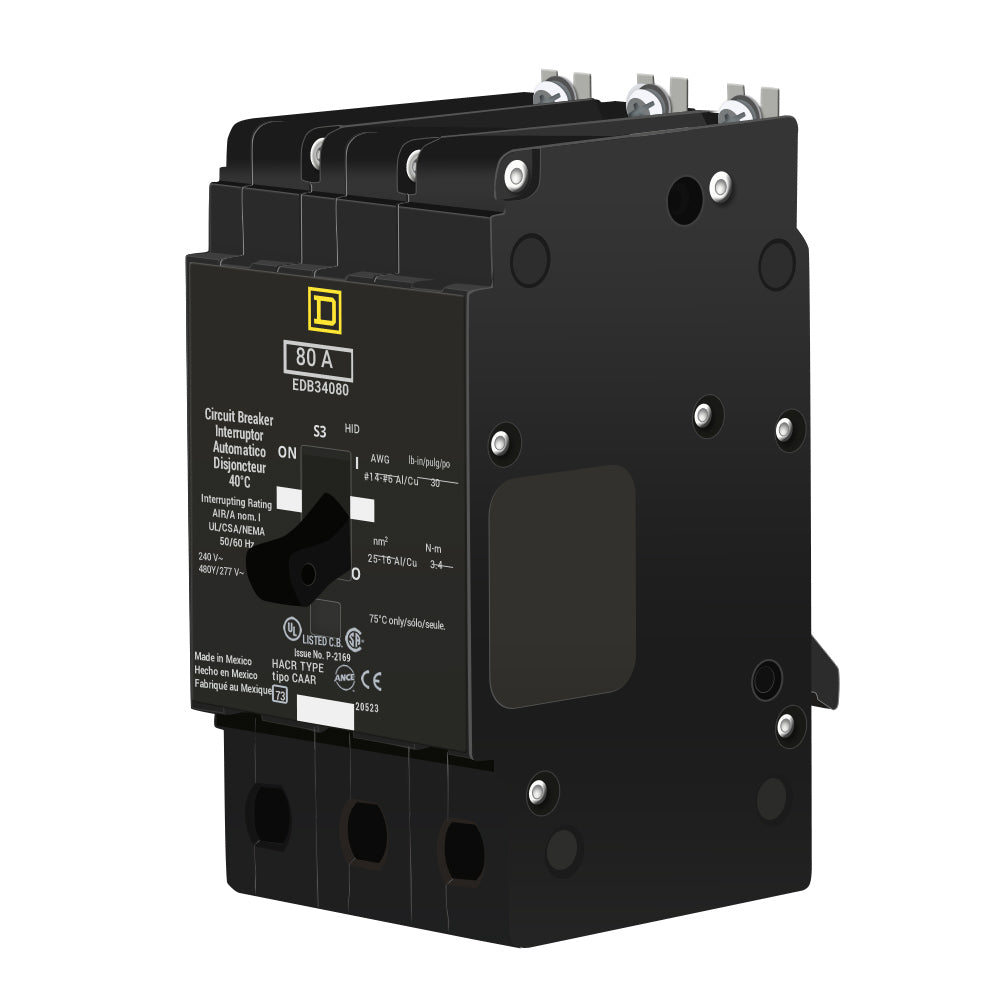

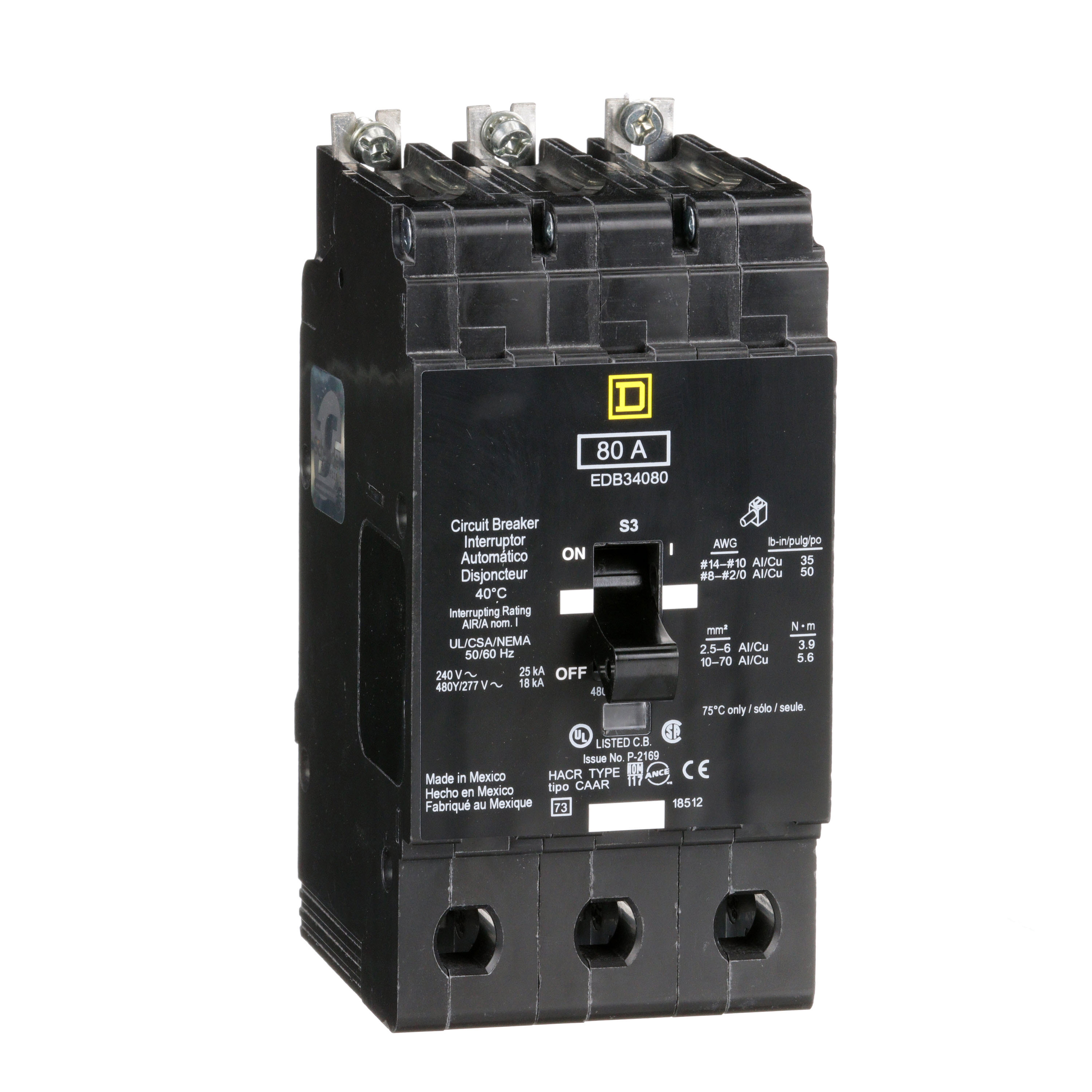

Square D EDB34080 miniature circuit breaker 80 amp 3 pole

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: EDB34080
Availability: Out Of Stock
$1,142.76
$1,142.76
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Square D EDB34080 is an E-Frame breaker designed for lighting panelboard circuits. This 3-pole, 80 Amp circuit breaker operates at 480Y/277 VAC and offers overload and short circuit protection. It features a thermal-magnetic trip unit and a signal indicator. The EDB34080 is HACR rated and calibrated for 40 degrees C.

  • E-Frame Breaker
  • Superior overload and short circuit protection
  • Thermal-magnetic trip unit

Product Highlights

Provides reliable circuit protection with thermal-magnetic trip and trip indication. Ideal for Square D NF Panelboards.

Product Information

Standard Information

  • Brand: SQUARE D
  • Manufacturer Part Number: EDB34080
  • Country of Origin: United States
Technical Specifications
Type
MOLDED CASE CIRCUIT BREAKER
Brand
Square D
Depth
4.05 Inch
Frame
E-FRAME
Width
2.94 in
Height
5.66 Inch
Length
4.05 Inch
Voltage
277/480 VAC
Amperage
80 Amp
Sub Brand
E FRAME
Trip Type
THERMAL-MAGNETIC
Trip Range
HOLD: 1000A - TRIP: 2300A
Module Type
E-Frame
Product UPC
78590187536
12-Digit UPC
785901875369
Applications
PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
Mounting Type
Bolt-On
TC Connection
LUGS #12 TO #2/0 AWG(AL) - #14 TO #2/0 AWG(CU)
Certifications
CULus
Number of Poles
3 Pole
Interrupt Rating
18 kAIC
Number of Spaces
3
Line Rated Current
80 Amp
Operating Temperature
40 Adegrees C
Manufacturer
Schneider Electric
UPC
785901875369
GTIN
00785901875369
Terminal Wire Size
12 to 2/0 AWG (Aluminum), 14 to 2/0 AWG (Copper)
Installation
Bolt-On
Application
Lighting
Used On
Class 515 NF Series Panelboard
Approval
UL, CSA, NOM 117
Tripping Method
Thermal Magnetic
Poles
3
Voltage Rating
120/240/277 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz (UL/CSA), 240 VAC at 50/60 Hz (IEC)
Current Rating
80 Ampere
Interrupting Rating
25 Kiloampere at 120/240 VAC, 18 Kiloampere at 480 VAC Star/277 VAC or 277 VAC (UL/CSA)
Trip Setting
1000 to 2300 Ampere
HACR Rated
Yes
Hold Current
1000A
Trip Current
2300A
Calibration Temperature
40 degrees C
Range Of Product
125 A Frame EDB-EGB-EJB
Product Or Component Type
miniature circuit-breaker
Trip Unit Rating
875 Amp
Device Short Name
EDB
Holding Current
270 Amp
Breaking Capacity Code
D
Product Destination
Square D NF Panelboard
Electrical Connection
Aluminum Lugs
Number Of Spaces Required
3
Mounting Mode
Bolt-On
Protection Type
Short-Circuit / Overload
Local Signalling
trip indicator
Awg Gauge
AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
Breaking Capacity
18 kA 277 V AC || 25 kA 240 V AC || 18 kA 480Y/277 V AC || 25 kA 120 V AC || 25 kA 120/240 V AC
Trip Unit Technology
thermal-magnetic
[Ue] Rated Operational Voltage
480Y/277 V AC
Product Certifications
cULus
Ambient Air Temperature For Operation
40 °C
Amp
80
Volt
480
Phase
3
Category
Molded Case / 3-Pole
Connection
Bolt-On
Functions
LI - Long-Time and Instantaneous
AIC Ratings
18kA@480V | 18kA@277V | 25kA@240V | 25kA@120V
Maximum Operating Voltage
480Y/277 V AC
Holding Current - Metric
1000 A
Line Rated Current - Metric
80 A
Family
EDB Series
Protection
Thermal Magnetic
Local Signaling
Trip Indicator
Circuit Breaker Application
HID-Rated / HACR-Rated
AWG Gauge
AWG 12...AWG 6 Aluminum | AWG 14...AWG 6 Copper
