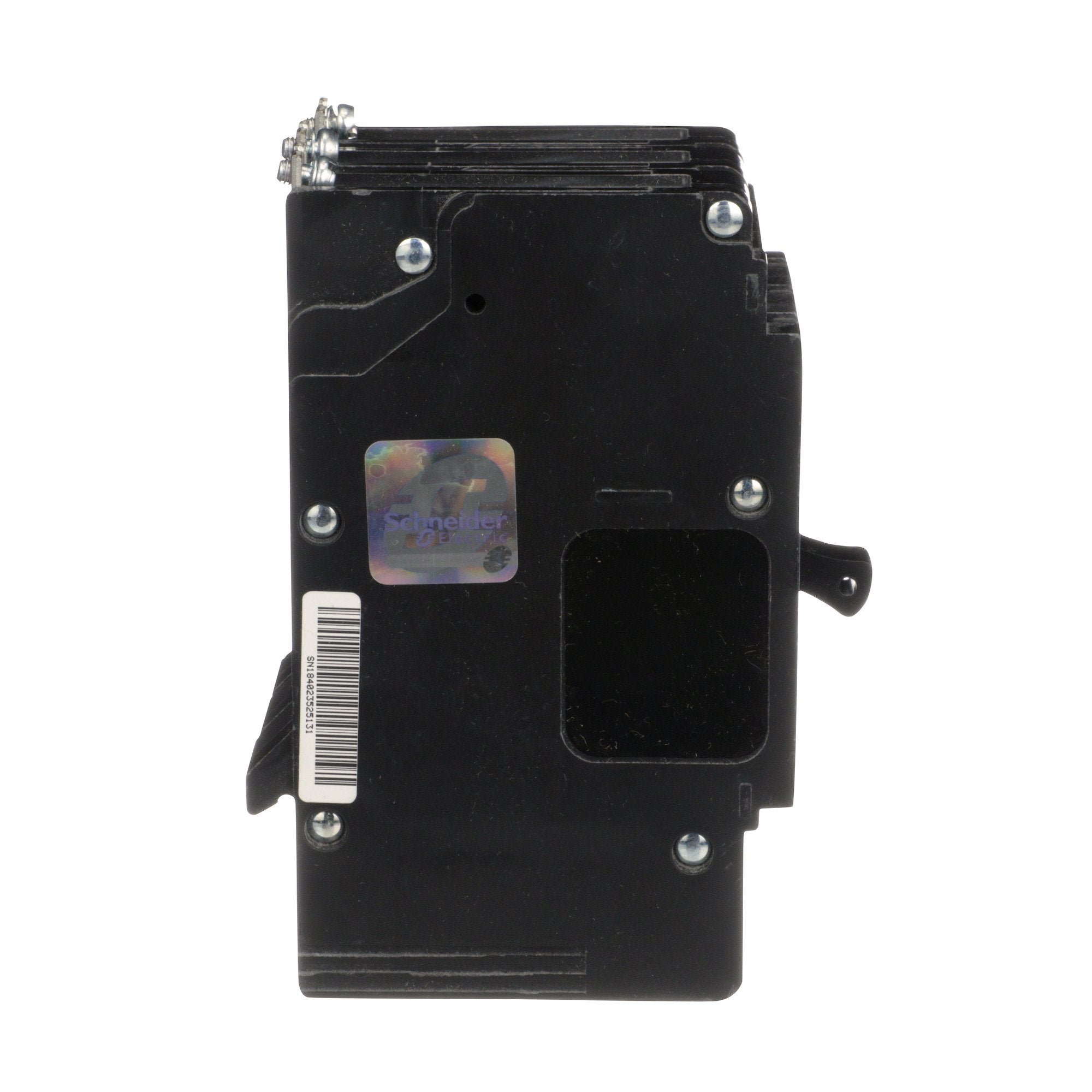

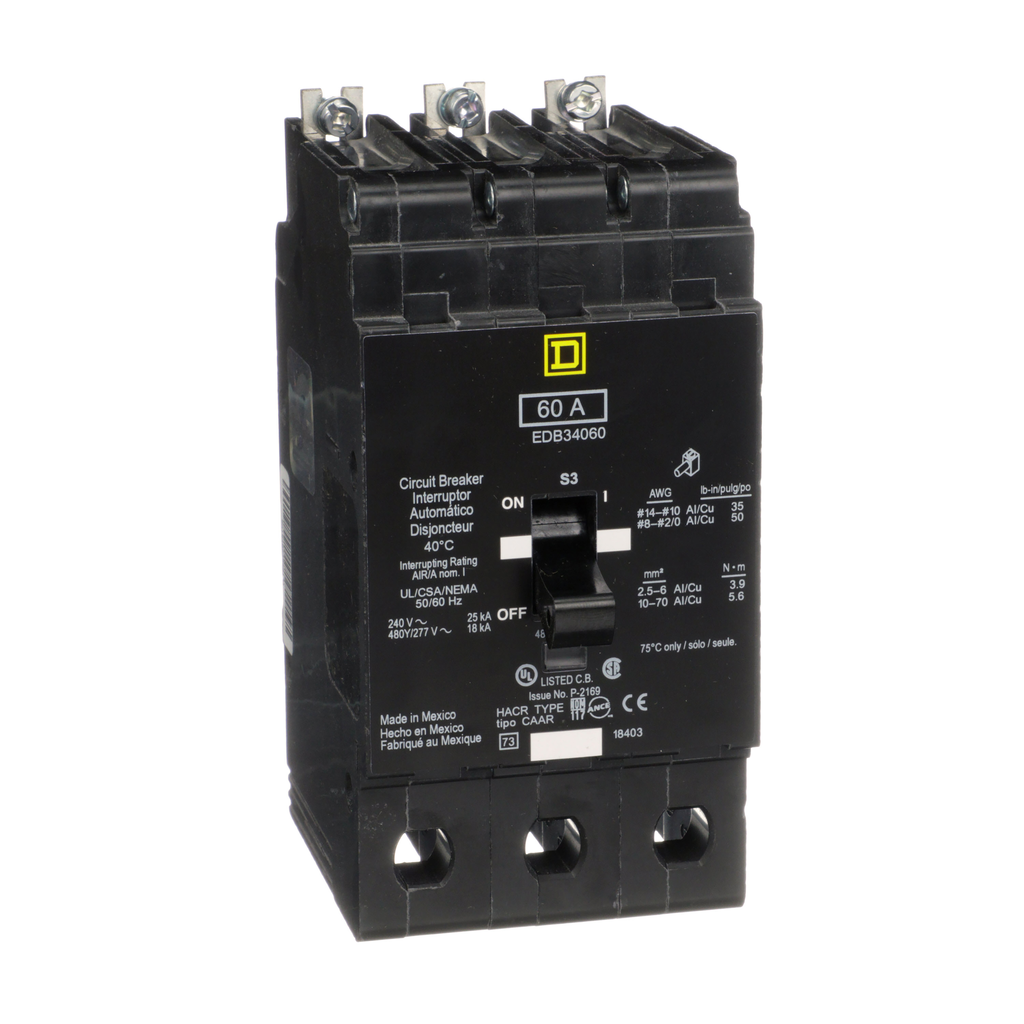

Square D EDB34060 480Y/277 Volt 60 Amp Miniature Circuit Breaker

Product Description

This Miniature Circuit Breaker, model EDB34060 from Square D, is designed for use in NF panelboards. It operates at 480Y/277 volts with a current rating of 60 amps. The circuit breaker is HACR rated, meaning it is suitable for use with heating, air conditioning, and refrigeration loads.

• Three poles for versatile circuit protection
• 25 kA maximum interrupt rating
• Thermal-magnetic trip type for reliable operation

Product Highlights

The EDB34060 breaker provides both short-circuit and overload protection. It mounts securely with bolts, ensuring safety and stability in operation. This device has a hold current of 630A and a trip current of 1800A, ensuring dependability in various electrical environments.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: EDB34060
• Voltage: 480Y/277 VAC
• Amperage: 60 Amp
• Number of Poles: 3 Pole
• Interrupt Rating: 25 kA
• Trip Type: Thermal-magnetic
• Weight: 4 lb
• Dimensions: 4.05 in x 2.94 in x 5.66 in
• Country of Origin: Mexico
