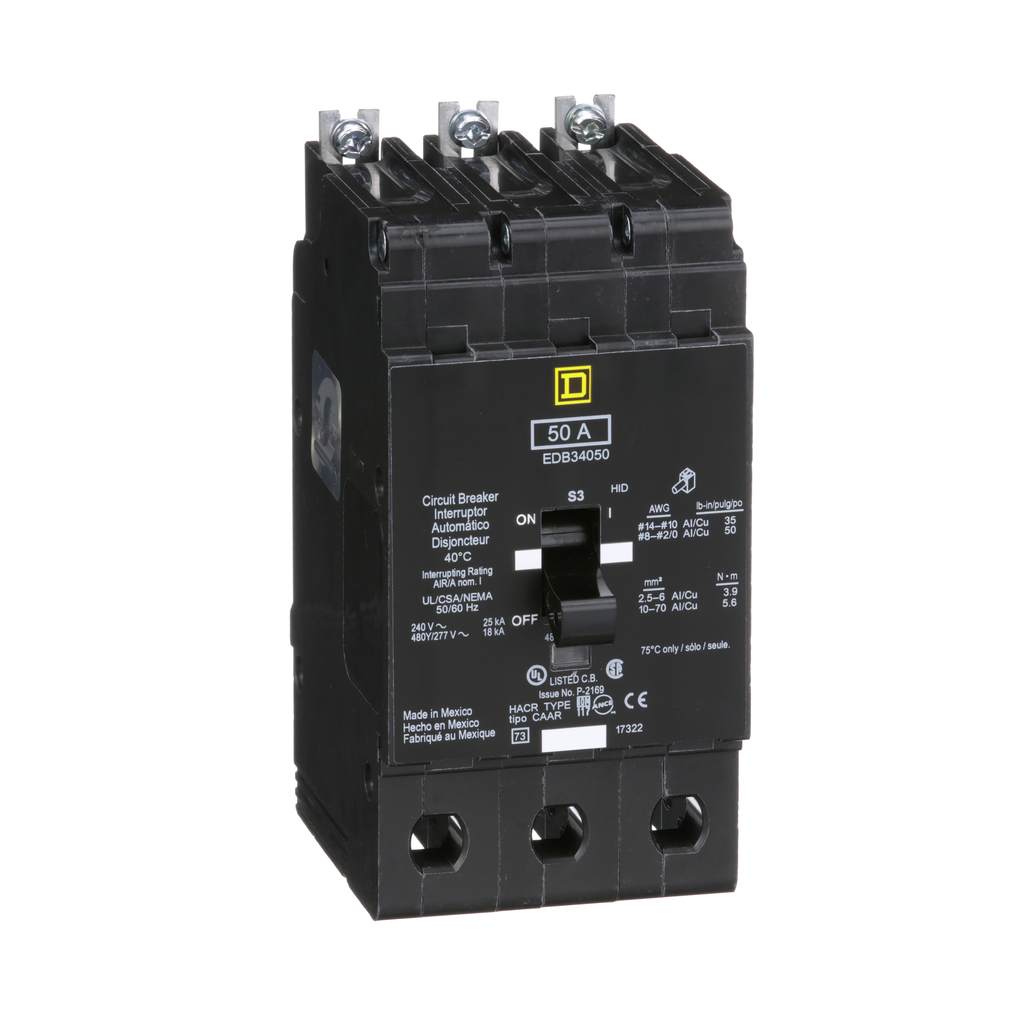

Square D EDB34050 Circuit Breaker 50 Amp Miniature 480Y/277 Volt

Product Description

The Square D EDB34050 is a reliable miniature circuit breaker designed for use in lighting panelboards. This E-Frame breaker features a three-pole, bolt-on design rated at fifty amperes, suitable for system voltage of four hundred eighty Y/two hundred seventy-seven volts AC. The device is UL Listed and CSA rated, ensuring compliance with high safety standards.

• Thermal-magnetic trip unit for effective overcurrent protection.
• Compatible with Square D NF Panelboards.
• Breaking capacity rated at eighteen kiloamperes at 480Y/277 VAC.

Product Highlights

This miniature circuit breaker not only offers a trip indicator but is also HACR and HID rated, making it appropriate for various applications in power distribution.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: EDB34050
• Voltage Rating: 480Y/277 VAC
• Amperage: 50 A
• Type: Miniature circuit-breaker
• Number of Poles: 3
• Height: 5.66 inches
• Width: 2.94 inches
• Depth: 4.05 inches
• Net Weight: 4 lb
• Trip Range: 1800 A
• Breaking Capacity: 18 kA at 480Y/277 VAC, 25 kA at 120/240 VAC
