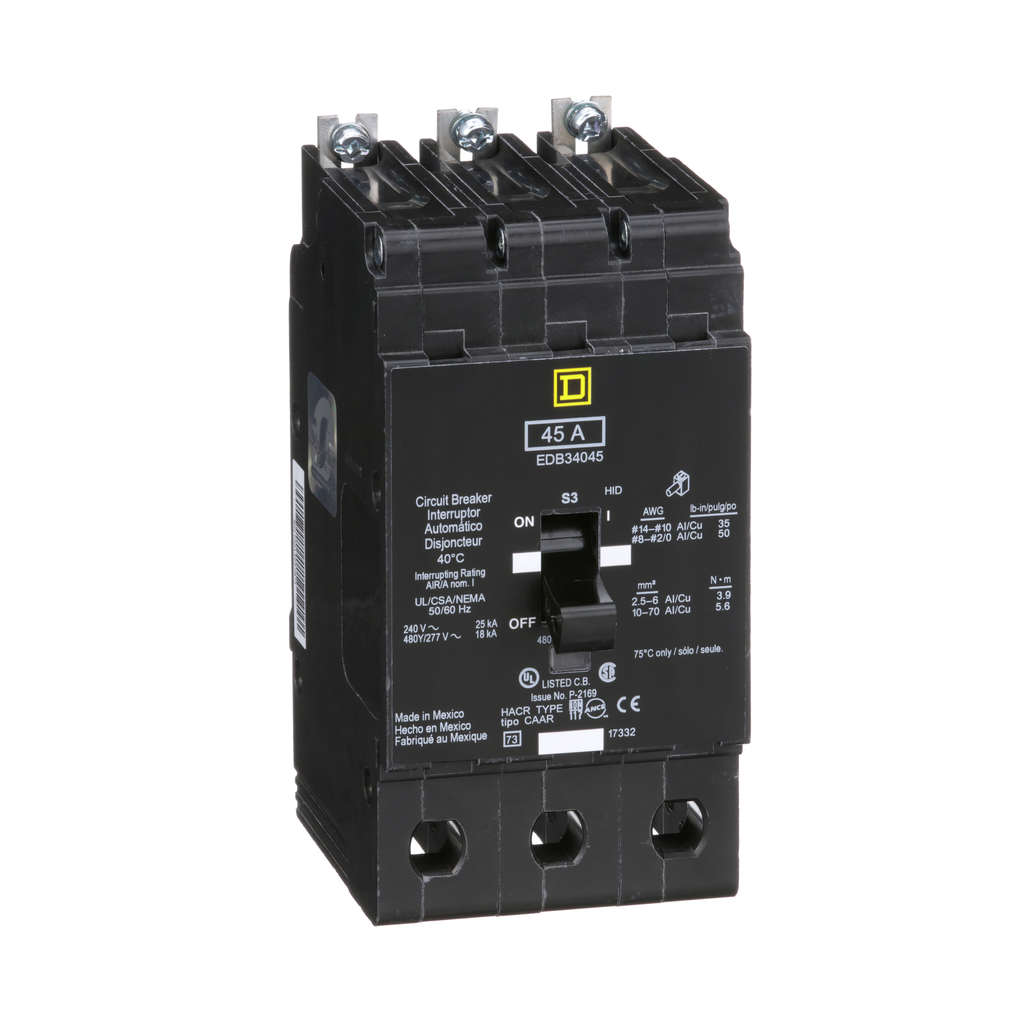

Square D EDB34045 Miniature Circuit Breaker 45 Amp 480Y/277 Volt

Product Description

The Square D EDB34045 is a miniature circuit breaker with a current rating of forty-five amps and a voltage rating of four hundred eighty Y/two hundred seventy-seven volts. This 3-pole breaker provides reliable protection and is designed for use with Square D NF panelboards. It features thermal-magnetic trip technology, ensuring quick response during overload or short circuit conditions.

• Current rating: 45 amps
• Voltage rating: 480Y/277 VAC
• UL Listed for High Intensity Discharge operations

Product Highlights

This E-frame style breaker is HID and HACR rated, making it suitable for various applications including lighting panelboards. Enhanced safety features include a trip signal indicator and a maximum interrupt rating of twenty-five kA at one hundred twenty volts AC.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: EDB34045
• Line Rated Current: 45 A
• Operating Voltage: 277/480 VAC
• Number of Poles: 3
• Trip Type: Thermal-magnetic
• Width: 2.94 inches
• Height: 5.66 inches
• Depth: 4.05 inches
• Weight: 4 lb
• Hold Current: 630 A
• Trip Current: 1800 A
• Country of Origin: United States
• Warranty Length: 18 months
