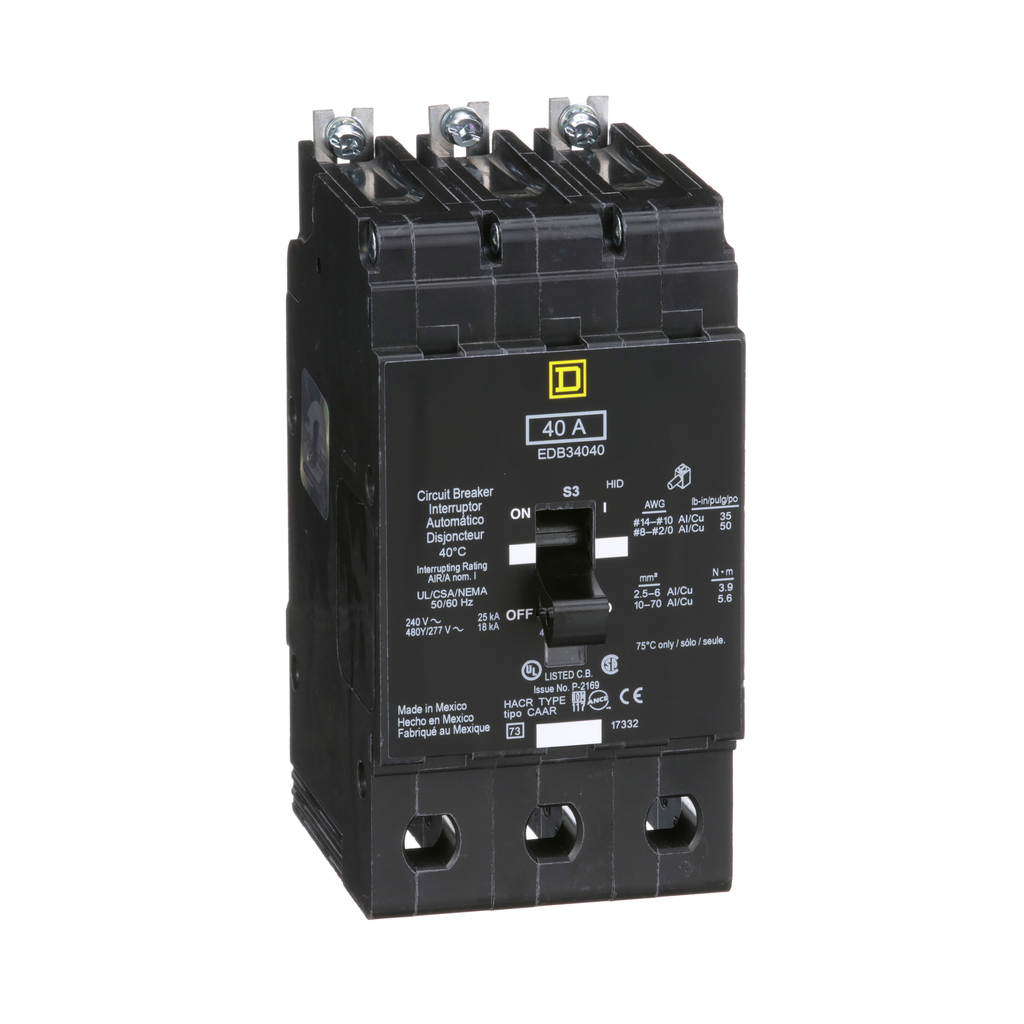

Square D EDB34040 Mini Circuit Breaker 40 Amp 480Y/277 Volt

Product Description

The Square D EDB34040 is a miniature circuit breaker designed for power distribution applications. It is rated at forty amps and operates at a voltage of 480Y/277 VAC. This three-pole bolt-on breaker is UL Listed and CSA rated, making it suitable for various applications.

• Rated at 40 amps with a voltage of 480Y/277 VAC
• Features a thermal-magnetic trip unit with a trip range of 1800 A
• Breaking capacity of 18 kA at 480Y/277 VAC

Product Highlights

The EDB34040 is ideal for use in Square D NF panelboards and is equipped with aluminum lugs. It supports a terminal lug rating of AWG twelve to two-aught for aluminum and AWG fourteen to two-aught for copper.

Product Information

Standard Information

• Catalog Number: EDB34040
• Manufacturer: Schneider Electric

Technical Specifications

• Model Type: Miniature circuit-breaker
• Frame Type: E-Frame
• Depth: 4.05 inches
• Width: 2.94 inches
• Height: 5.66 inches
• Weight: 4 lb
• Voltage: 277/480 VAC
• Amperage: 40 Amp
• Trip Type: Thermal-magnetic
• Mounting Type: Bolt-On
• Country of Origin: United States
