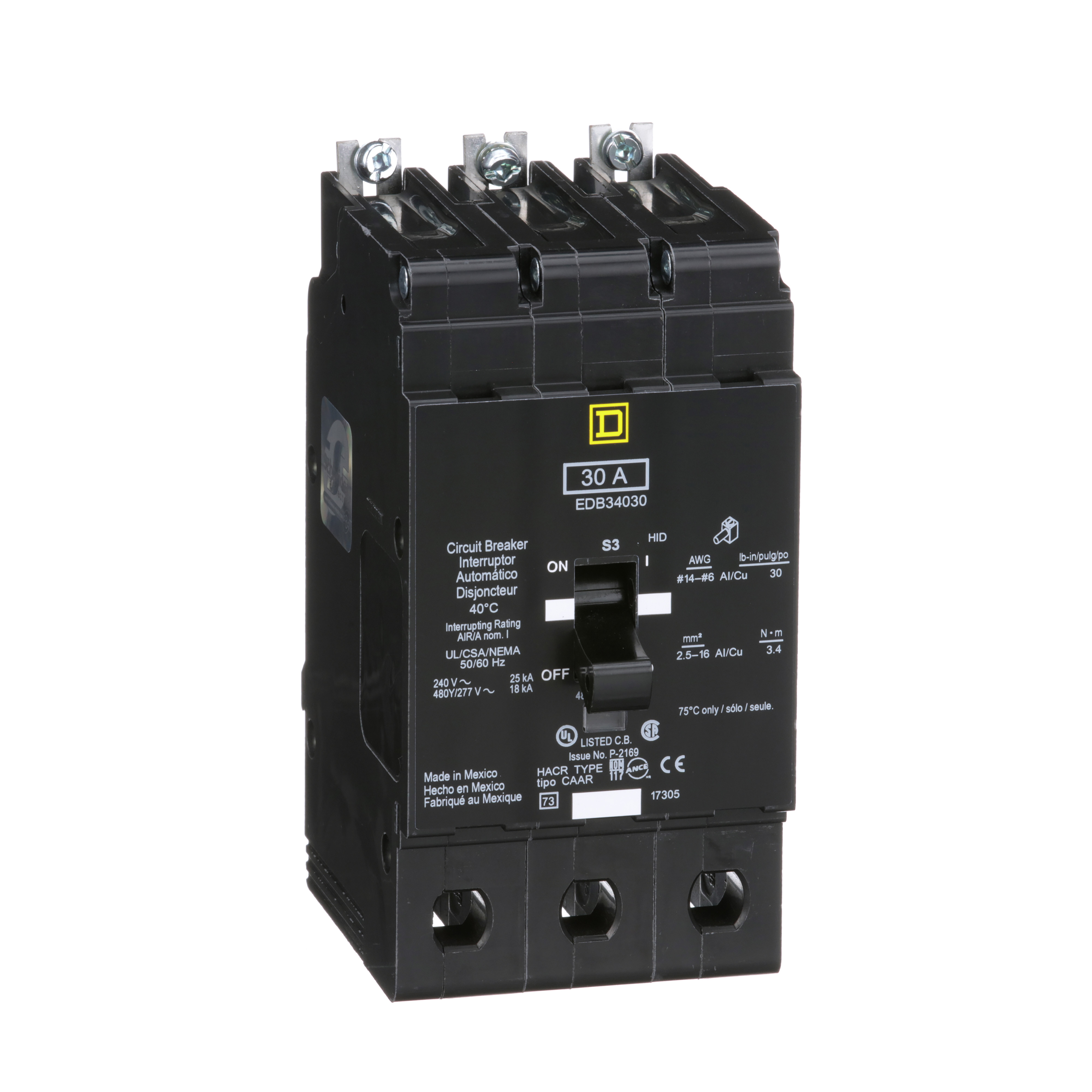

Square D EDB34030 Miniature Circuit Breaker 30 Amp 480Y/277 Volt

Product Description

Square D EDB34030 is a 30 Amp miniature circuit breaker designed for use in NF panelboards. Rated for a system voltage of 480Y/277 VAC, this product meets UL and CSA standards. The breaker features three poles and is a bolt-on type, allowing for easy installation. It utilizes a thermal-magnetic trip unit that provides reliable protection against overload and short-circuit conditions.

• Rated for up to 30 Amps at 480Y/277 VAC.
• Tested breaking capacity of 18 kA at 480Y/277 VAC and 25 kA at 120/240 VAC.
• Complies with HACR and HID requirements.

Product Highlights

This circuit breaker is designed for durability and reliability in commercial and industrial applications.

Product Information

Standard Information

• Catalog Number: EDB34030
• Manufacturer: Square D / Schneider Electric

Technical Specifications

• Voltage: 277/480 VAC
• Amperage: 30 Amp
• Breaking Capacity: 18 kA (480Y/277 VAC), 25 kA (120/240 VAC)
• Width: 2.94 inches
• Height: 5.66 inches
• Depth: 4.05 inches
• Mounting Type: Bolt-On
• Country of Origin: Mexico
