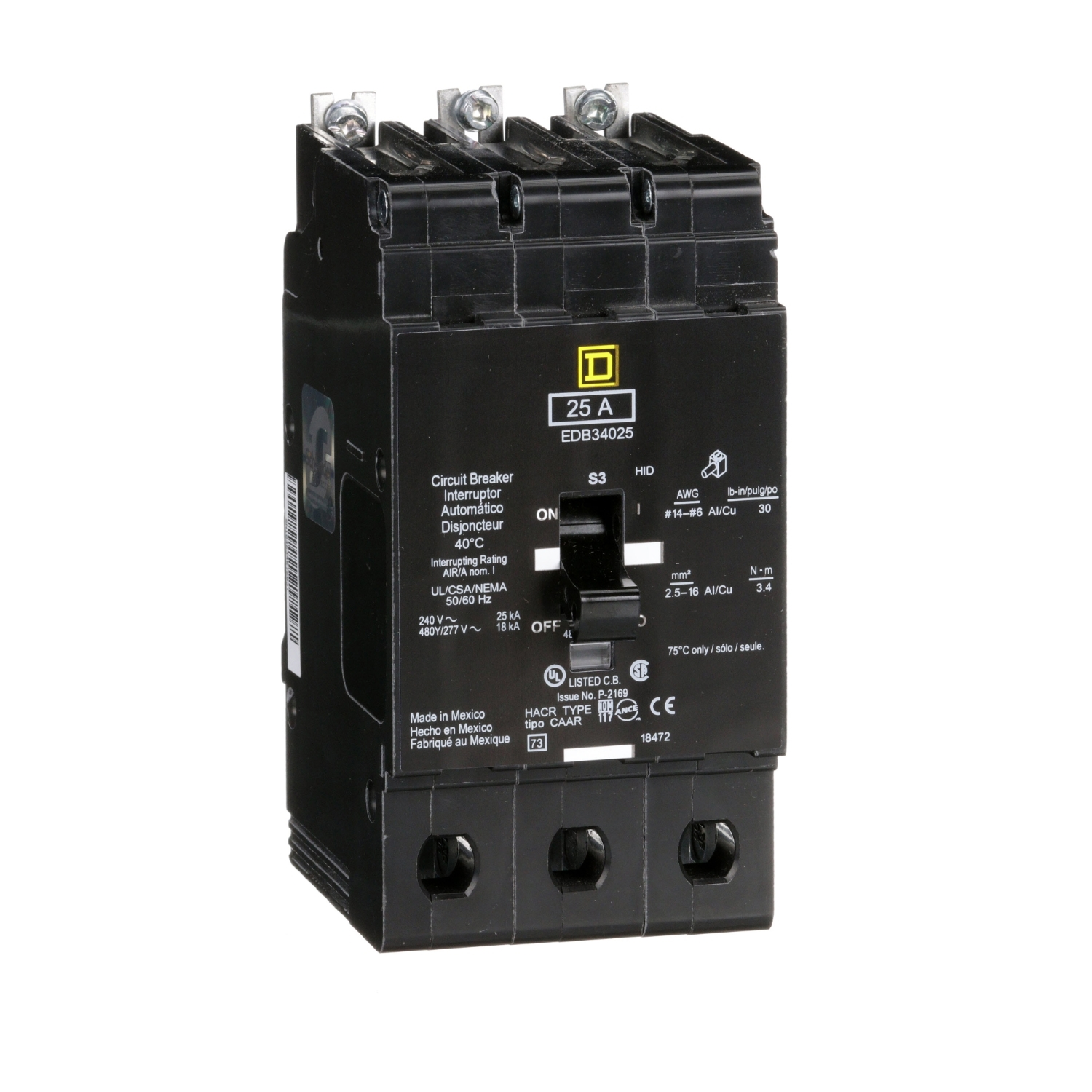

Square D EDB34025 miniature circuit breaker 25 amp

Product Description

The Square D EDB34025 is an E-Frame breaker designed for lighting panelboards, offering overload and short circuit protection. This 3-pole, bolt-on breaker is rated at 25A with an operating voltage of 480Y/277 VAC. It features a thermal-magnetic trip unit and a signal indicator. The breaker is HID and HACR rated and calibrated for 40 degrees C.

• E-Frame Breaker
• Superior overload and short circuit protection
• Thermal-magnetic trip unit

Product Highlights

Provides reliable circuit protection for Square D NF Panelboards with thermal-magnetic trip unit and signal indicator.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: EDB34025
• Country of Origin: Mexico

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• Depth: 4.05 Inch
• Frame: E-FRAME
• Width: 2.94 in
• Height: 5.66 Inch
• Length: 4.05 Inch
• Voltage: 277/480 VAC
• Amperage: 25 Amp
• Sub Brand: EDB
• Trip Type: Thermal-magnetic
• Module Type: E-Frame
• Applications: HID rated;HACR rated
• Mounting Type: Bolt-On
• TC Connection: LUGS #12 TO #6 AWG(AL) - #14 TO #6 AWG(CU)
• Certifications: CULus
• Number of Poles: 3 Pole
• Interrupt Rating: 18 kAIC
• Line Rated Current: 25 A
• Catalog Number: EDB34025
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Made in USA: No
• UPC: 785901875253
• GTIN: 00785901875253
• Tripping Method: Thermal Magnetic
• Current Rating: 25 Ampere
• Installation: Bolt-On
• Application: Lighting
• Used On: Class 515 NF Series Panelboard
• Terminal Wire Size: 12 to 6 AWG (Aluminum), 14 to 6 AWG (Copper)
• Maximum Operating Voltage: 480Y/277 V AC
• Electrical Connection: Aluminum Lugs
• Local Signaling: Trip Indicator
• Circuit Breaker Application: HID-Rated / HACR-Rated
• AWG Gauge: AWG 12...AWG 6 Aluminum | AWG 14...AWG 6 Copper
• Product Destination: Square D NF Panelboard
• Mounting Mode: Bolt-On
• Protection Type: Short-Circuit / Overload
• Breaking Capacity: 18 kA 277 V AC || 25 kA 240 V AC || 18 kA 480Y/277 V AC || 25 kA 120 V AC || 25 kA 120/240 V AC
• [Ue] Rated Operational Voltage: 480Y/277 V AC
• Ambient Air Temperature For Operation: 40 °C
