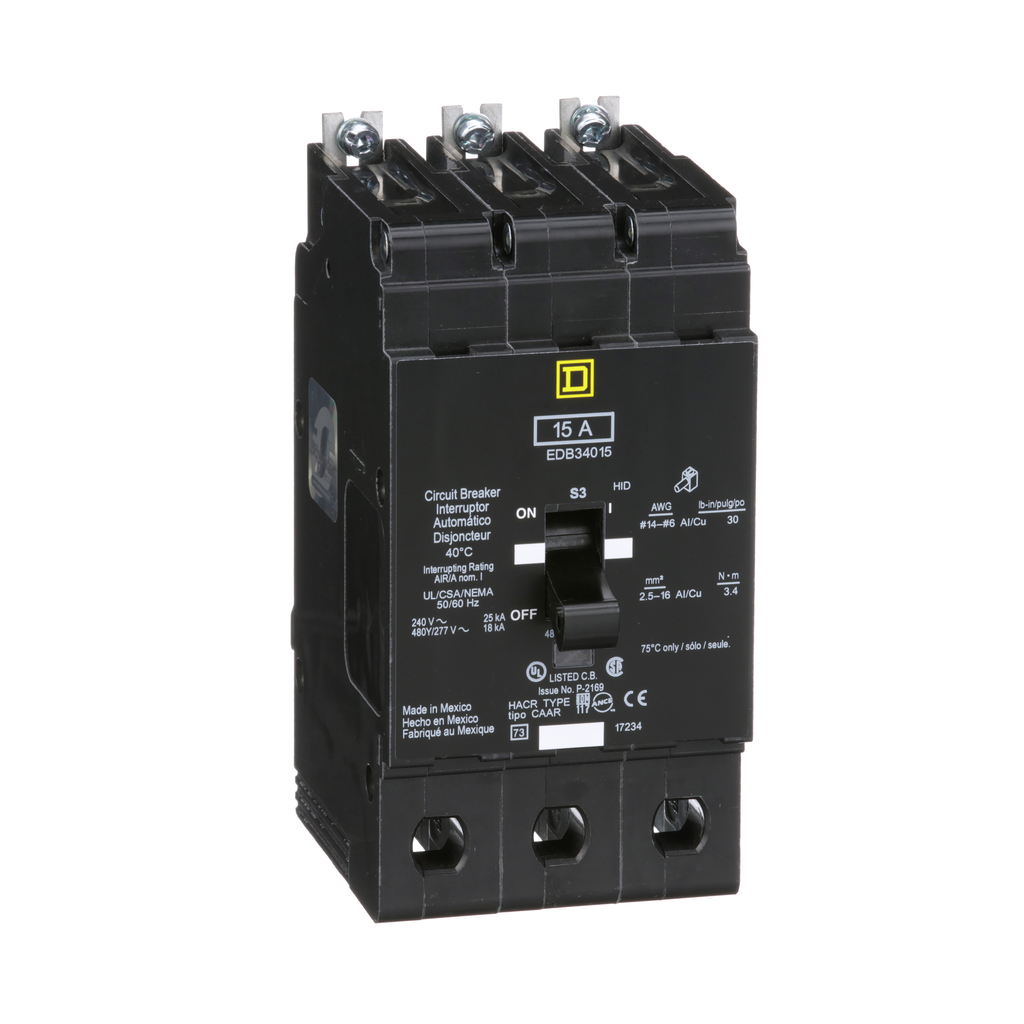

Square D EDB34015 480Y/277 Volt 15 Amp Miniature Circuit Breaker

Product Description

The Square D EDB34015 is a miniature circuit breaker with a rating of fifteen amps and designed for use at a voltage of four hundred eighty Y two hundred seventy-seven VAC. This E-frame breaker offers reliable protection and is suitable for lighting panelboard applications. It features a three-pole bolt-on configuration and is UL Listed, ensuring compliance with safety standards.

• Rated at 15 amps for 480Y/277 VAC systems
• Thermal-magnetic trip unit for reliable operation
• Breaking capacity of 18 kA at 480Y/277 VAC

Product Highlights

This circuit breaker is HACR rated and has been tested for high-intensity discharge applications. It includes a signal indicator for trip notifications and has aluminum lugs compatible with wire sizes AWG twelve to six for aluminum and AWG fourteen to six for copper. The breaker’s hold current is set at 270 A, with a trip current of 875 A.

Product Information

Standard Information

• Catalog Number: EDB34015
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Miniature circuit-breaker
• Voltage: 277/480 VAC
• Amperage: 15 A
• Depth: 4.05 inches
• Width: 2.94 inches
• Height: 5.66 inches
• Weight: 4 lb
• Number of Poles: 3
• Certification: CULus
• Country of Origin: United States
