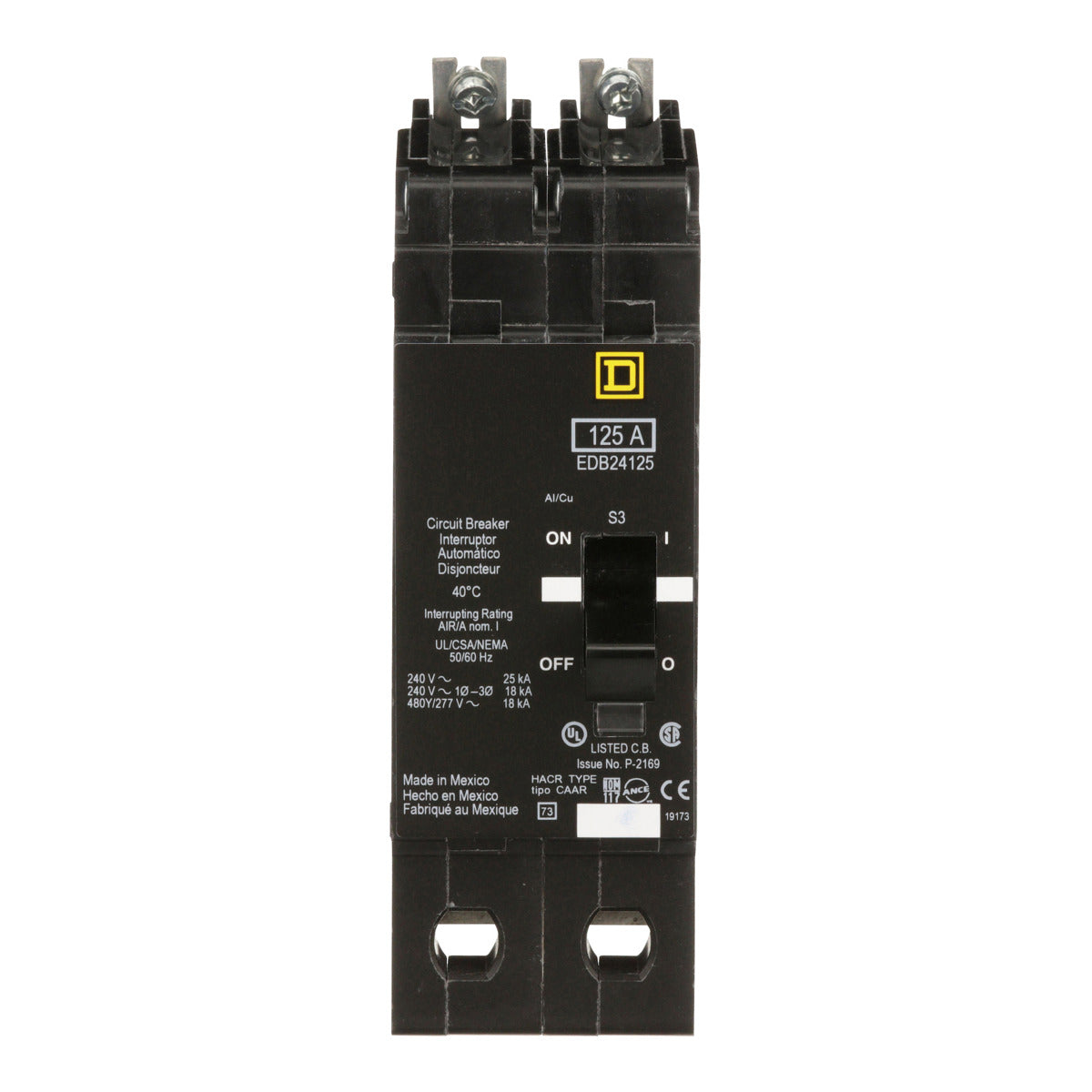

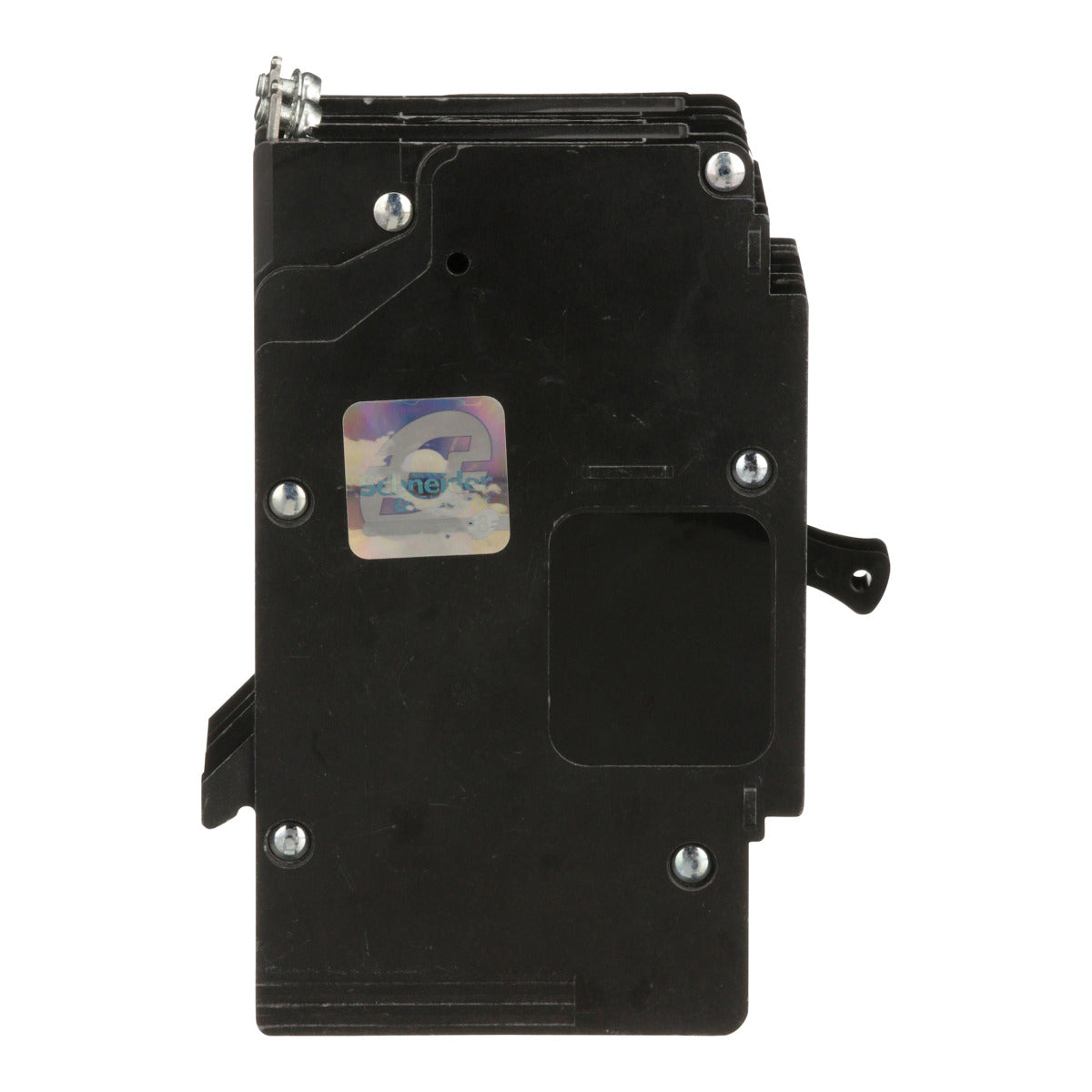

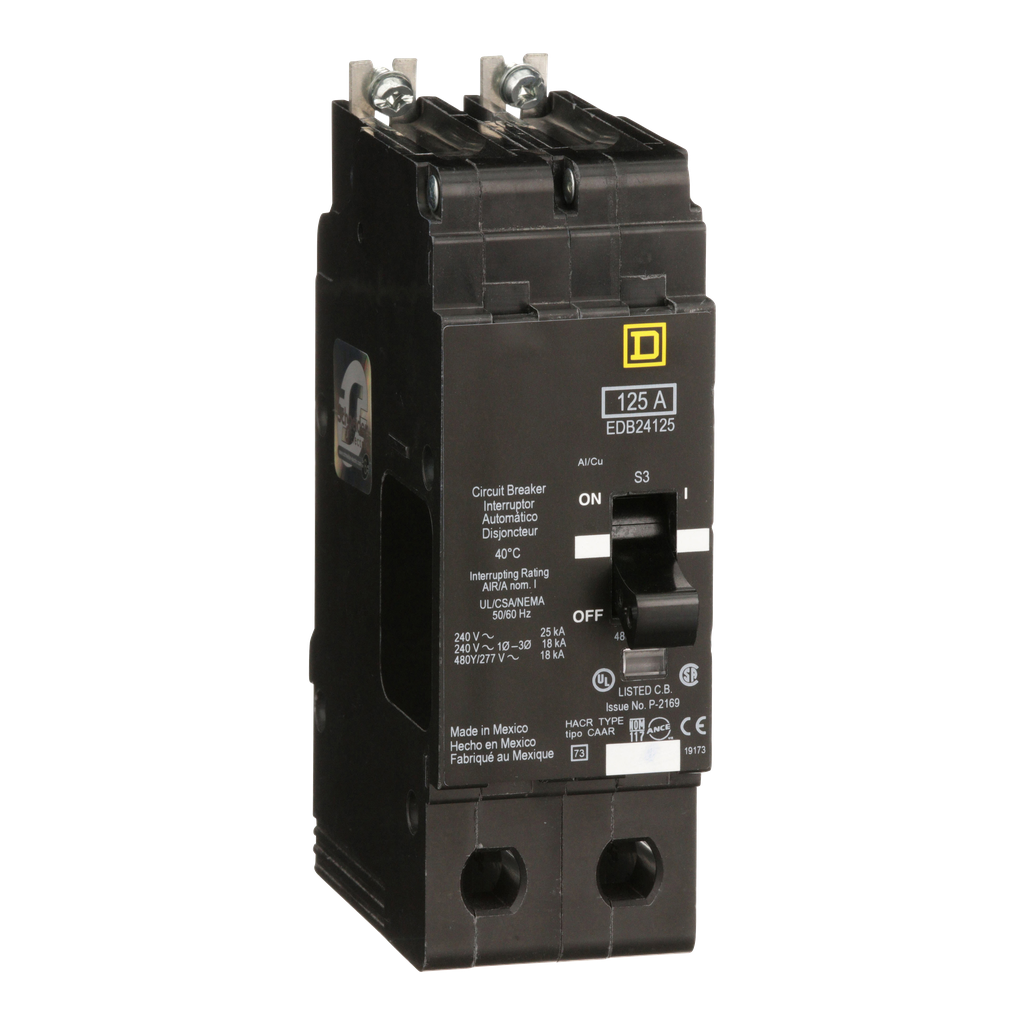

Square D EDB24125 Mini Circuit Breaker 125 Amp 480Y/277 Volt

Product Description

The Square D EDB24125 is a miniature circuit breaker with a current rating of one hundred twenty-five amps and an operating voltage of four hundred eighty volts. This device is designed for use in NF Panelboards and offers reliable overload and short circuit protection. It features a thermal-magnetic trip unit with an indicator that alerts users of any trips.

• Two poles with a maximum interrupt rating of twenty-five kA at one hundred twenty volts.
• Hold current rating of one thousand amps and a guaranteed trip at two thousand three hundred amps.
• Compatible with multiple accessories for enhanced functionality.

Product Highlights

This breaker is HACR rated and suitable for various applications. It has been calibrated for an operational temperature of forty degrees Celsius.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 277/480 VAC
• Amperage: 125 Amp
• Number of Poles: 2 Pole
• Frame Type: E-Frame
• Trip Type: Thermal-magnetic
• Certifications: CULus
• Country of Origin: Mexico
• Warranty Length: 18 months
