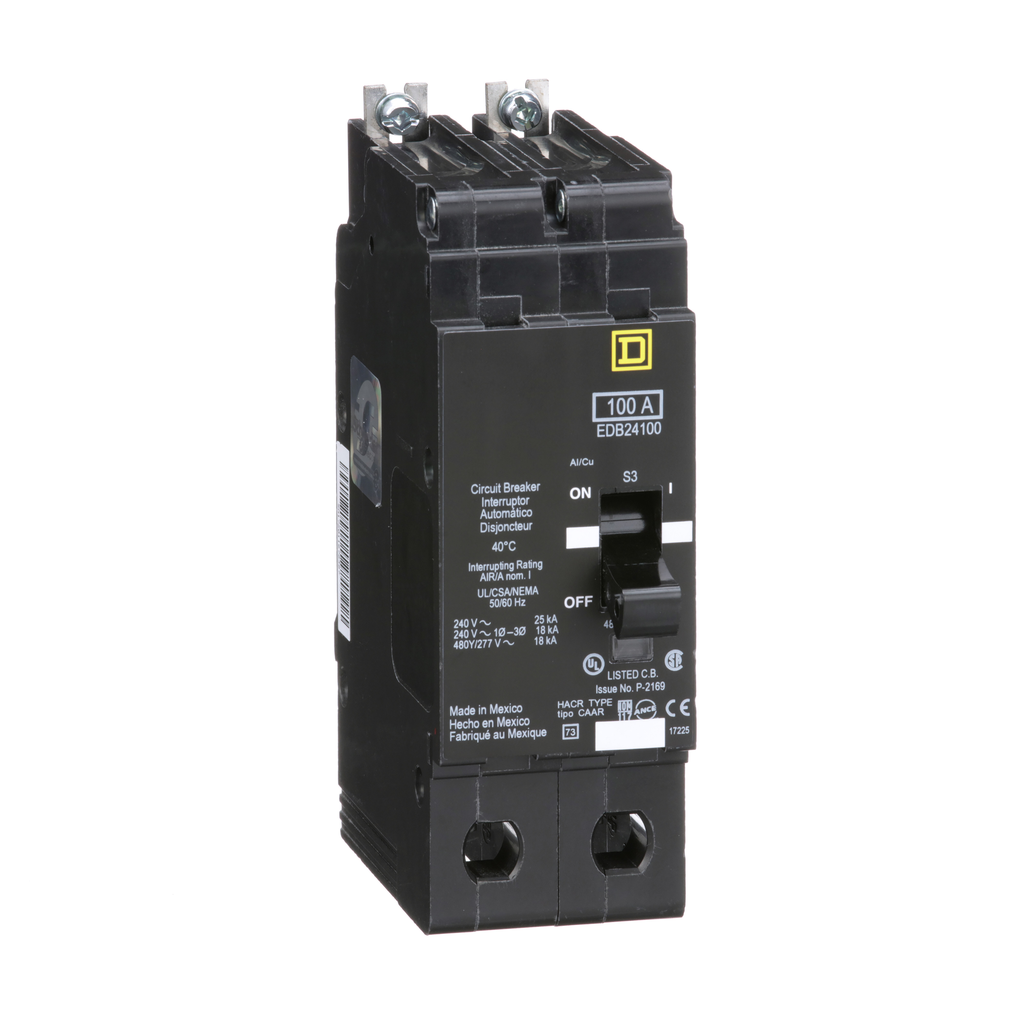

Square D EDB24100 Miniature Circuit Breaker 100 Amp 480Y/277 Volt

Product Description

The Square D EDB24100 is a miniature circuit breaker with a rated capacity of one hundred amps at 480Y/277 volts. This breaker is designed for effective protection in various electrical systems. It features a thermal-magnetic trip unit and includes a signal indicator to show when a trip has occurred. The device is HACR rated and is suited for use in NF panelboards.

• Rated at one hundred amps, two poles, with a voltage of 480Y/277 VAC
• Interrupt rating of eighteen kA at 480Y/277 VAC and twenty-five kA at 120/240 VAC
• Aluminium lugs equipped for wire sizes from AWG twelve to AWG two aught

Product Highlights

This circuit breaker is robust, providing reliable overload and short circuit protection. It has a hold current of one thousand amps and a trip current of two thousand three hundred amps, ensuring it trips under the specified conditions. The compact design allows for easy installation in electrical panels.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: EDB24100
• Voltage: 277/480 VAC
• Amperage: 100 Amp
• Number of Poles: 2
• Depth: 4.05 inches
• Width: 1.96 inches
• Height: 5.66 inches
• Weight: 3 lb
• Trip Type: Thermal-magnetic
• Maximum Interrupt Rating: 25 kA
• Mounting Type: Bolt-On
• Country of Origin: Mexico
• Warranty Length: 18 months
