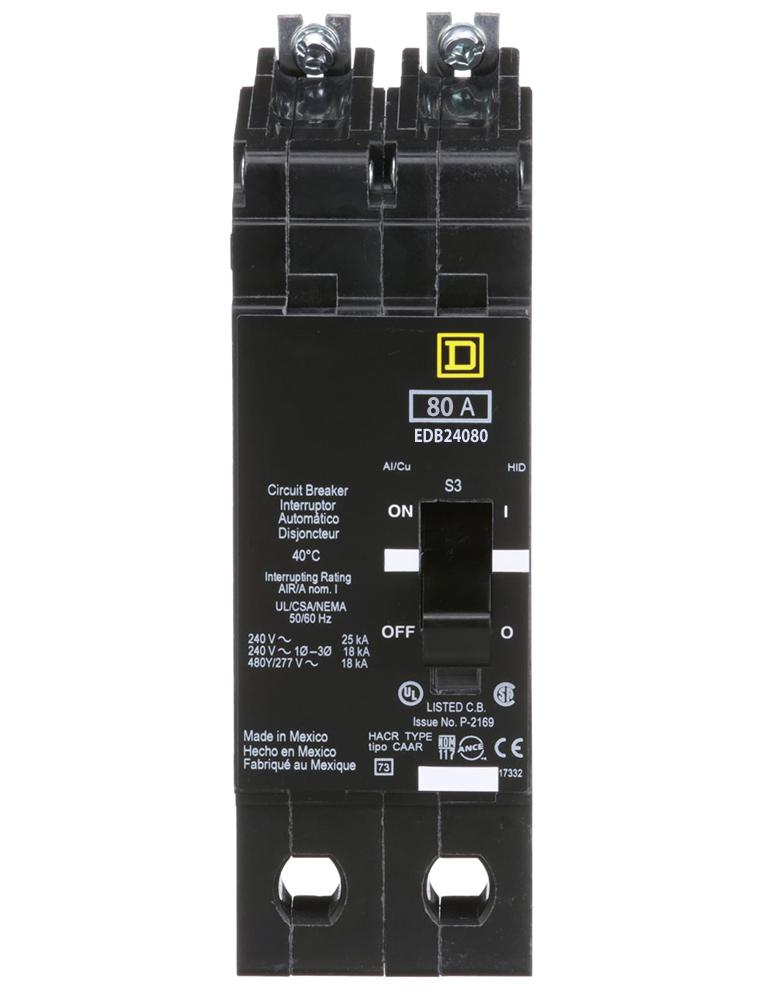

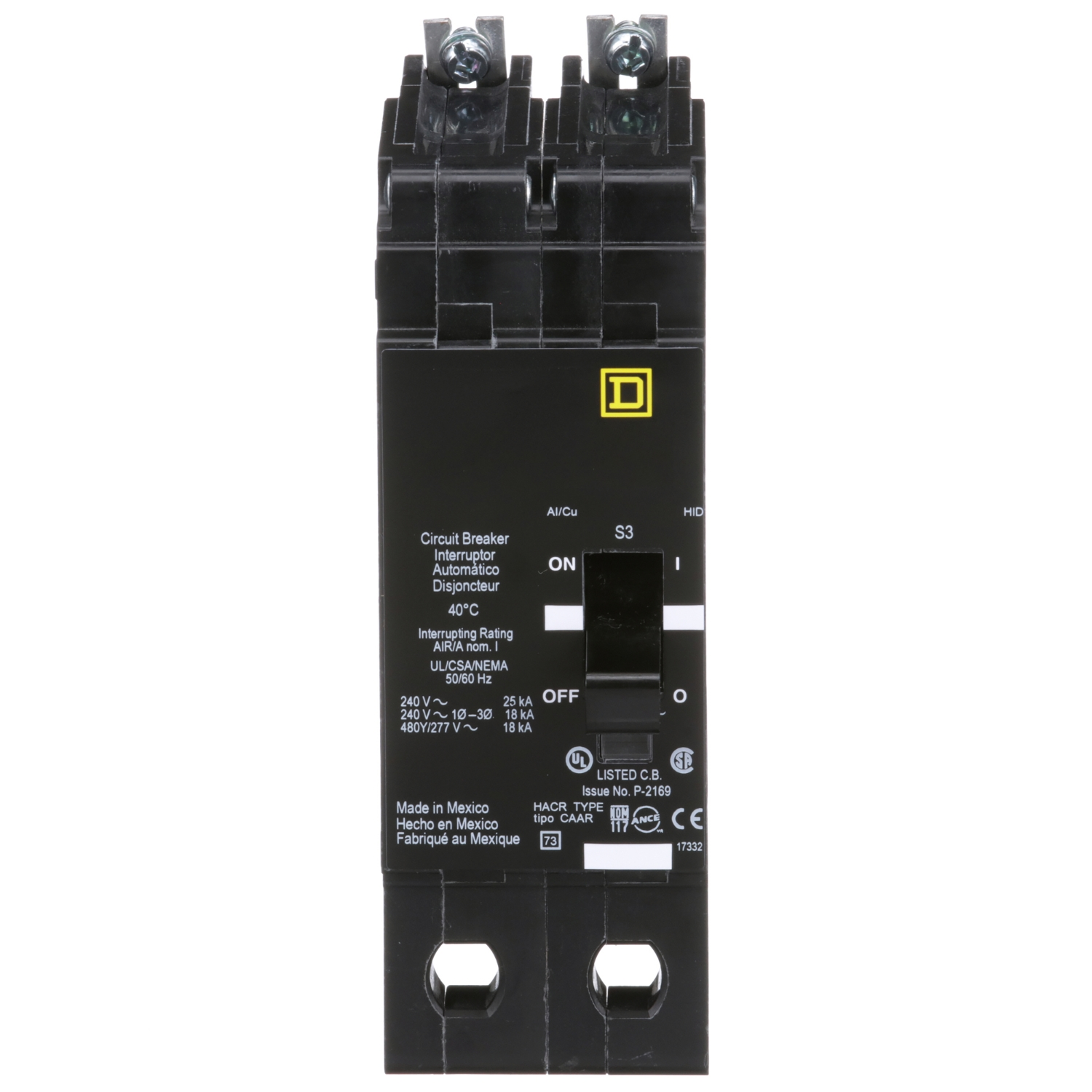

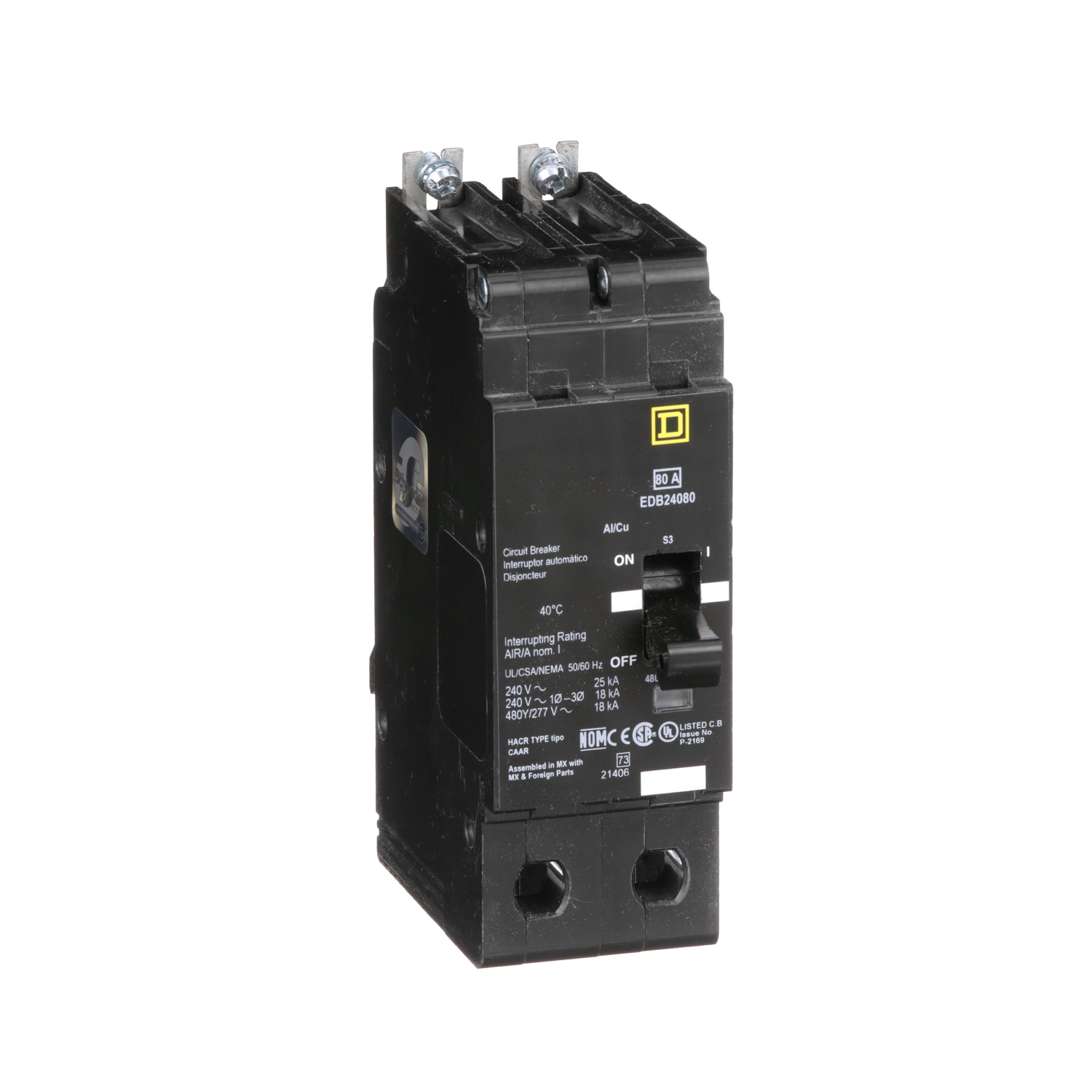

Square D EDB24080 Miniature Circuit Breaker 80 Amp

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: EDB24080
Availability: Out Of Stock
$949.18
$949.18
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The SQUARE D EDB24080 is an E-Frame breaker designed for lighting panelboard circuits, offering effective and reliable performance in Square D NF Panelboards. This miniature circuit breaker provides superior overload and short circuit protection. It features a thermal-magnetic trip unit and a signal indicator. HACR rated.

  • E-Frame Breaker
  • Superior overload and short circuit protection
  • Thermal-magnetic trip unit

Product Highlights

This SQUARE D miniature circuit breaker is ideally suited for lighting applications requiring reliable overload and short circuit protection.

Product Information

Standard Information

  • Brand: SQUARE D
  • Manufacturer Part Number: EDB24080
  • Country of Origin: United States
Technical Specifications
Type
Miniature circuit-breaker
Brand
Square D
Depth
4.05 Inch
Frame
E-FRAME
Width
1.96 in
Height
5.66 Inch
Voltage
277/480 VAC
Amperage
80 Amp
Sub Brand
EDB
Trip Type
Thermal-magnetic
Trip Range
2300 A
Applications
HACR rated
Mounting Type
Bolt-On
Number of Poles
2 Pole
Interrupt Rating
18, 25 kAIC
Line Rated Current
80 A
Manufacturer
Schneider Electric
Catalog Number
EDB24080
MPN
EDB24080
Voltage Rating
120/240/277 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz (UL/CSA), 240 VAC at 50/60 Hz (IEC)
Current Rating
80 Ampere
Interrupting Rating
25 Kiloampere at 120/240 VAC, 18 Kiloampere at 480 VAC Star/277 VAC or 277 VAC (UL/CSA)
Trip Setting
1000 to 2300 Ampere
Installation
Bolt-On
Application
Lighting
Used On
Class 515 NF Series Panelboard
Approval
UL, CSA, NOM 117
Frame Type
E
Size
1.96 Inch W x 4.05 Inch D x 5.66 Inch H
Tripping Method
Thermal Magnetic

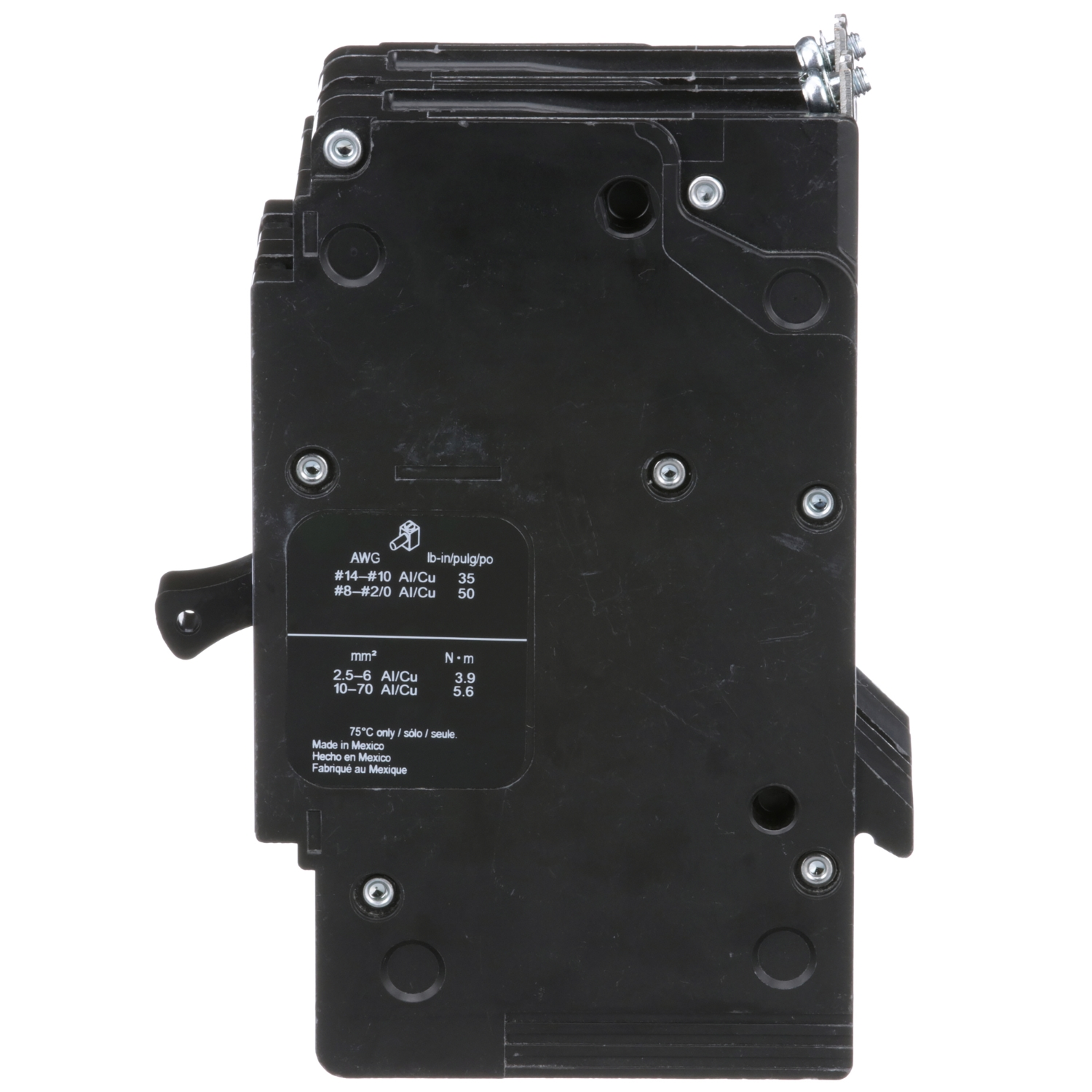

Terminal Wire Size
12 to 2/0 AWG (Aluminum), 14 to 2/0 AWG (Copper)
Range Of Product
125 A Frame EDB-EGB-EJB
Trip Unit Rating
2300-2300 A
Product Or Component Type
miniature circuit-breaker
Device Short Name
EDB
Holding Current
1000 A
Breaking Capacity Code
D
Product Destination
NF panelboard
Electrical Connection
lugs aluminium
Number Of Spaces Required
2
Circuit Breaker Application
HACR rated
Mounting Mode
bolt-on
Protection Type
overload || short-circuit
Local Signalling
trip indicator
Awg Gauge
AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
Breaking Capacity
18 kA 277 V AC || 25 kA 240 V AC || 18 kA 480Y/277 V AC || 25 kA 120 V AC || 25 kA 120/240 V AC
Trip Unit Technology
thermal-magnetic
[Ue] Rated Operational Voltage
480Y/277 V AC
Amps
80 A
AC Voltage Rating
277/480V AC
Circuit Breaker Type
Standard
DC Voltage Rating
125V DC
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Bolt On
Compatible Panelboard/Load Center Series
NF
Phase
Single
Max. AIR Rating
18kA at 277/480V AC
For Use With
Square D NF Panelboards
Terminal Connection
Lug
Frame Size
125A/EDB
Length
5.66 in
Max. Operating Temp.
104 °F
Min. Wire Size
12 AWG (Al); 14 AWG (Cu)
Max. Wire Size
2 AWG
Standards
cULus
UNSPSC
39121601
