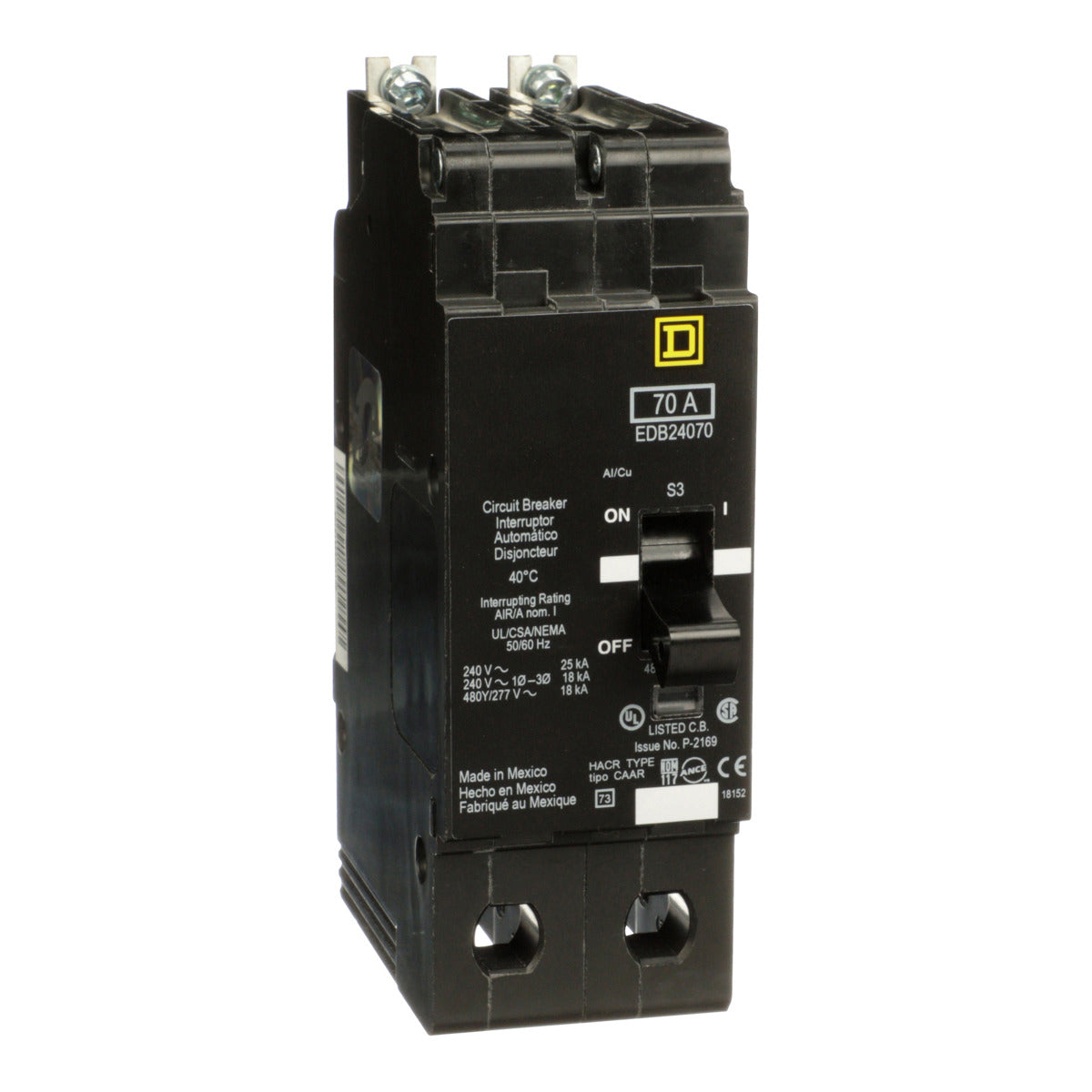

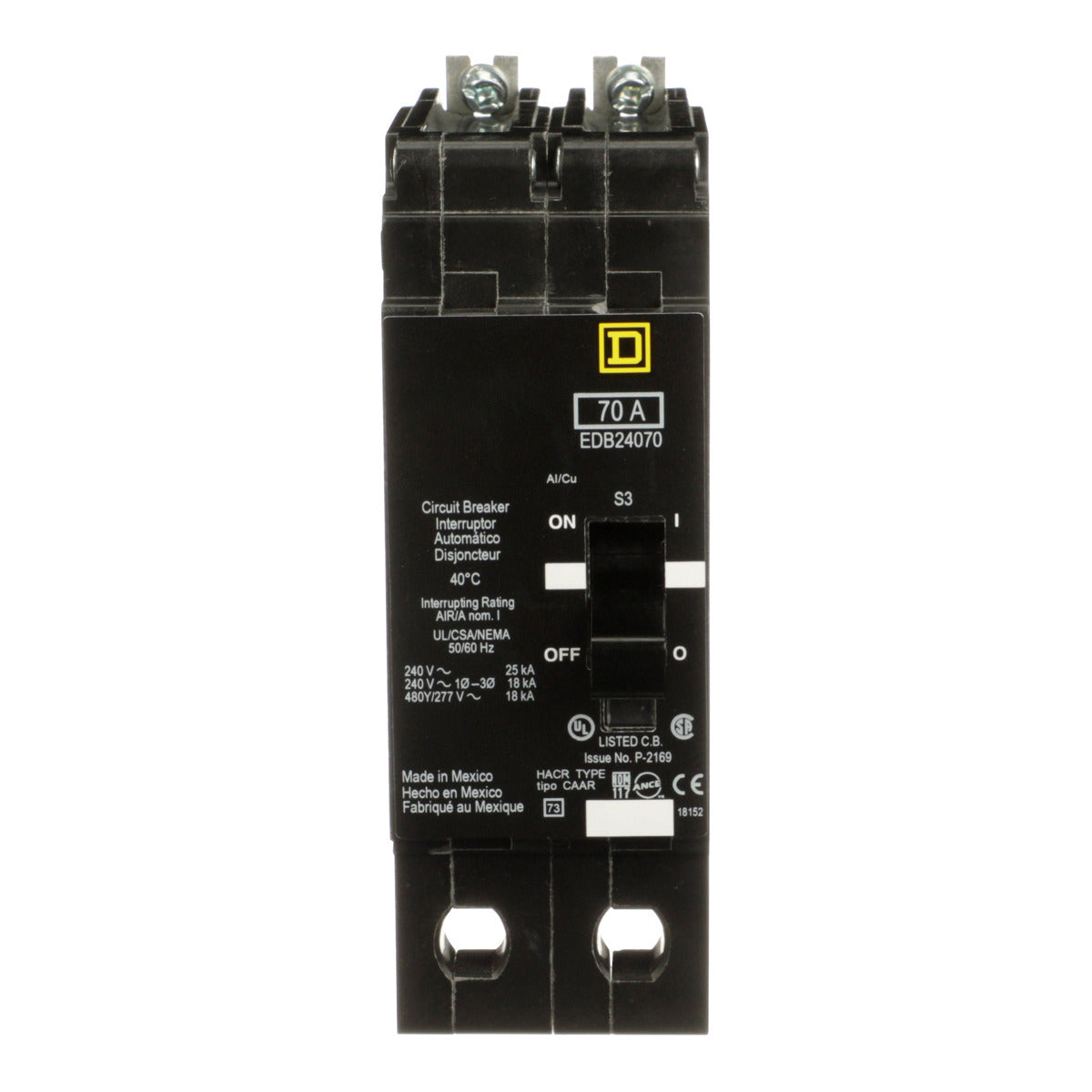

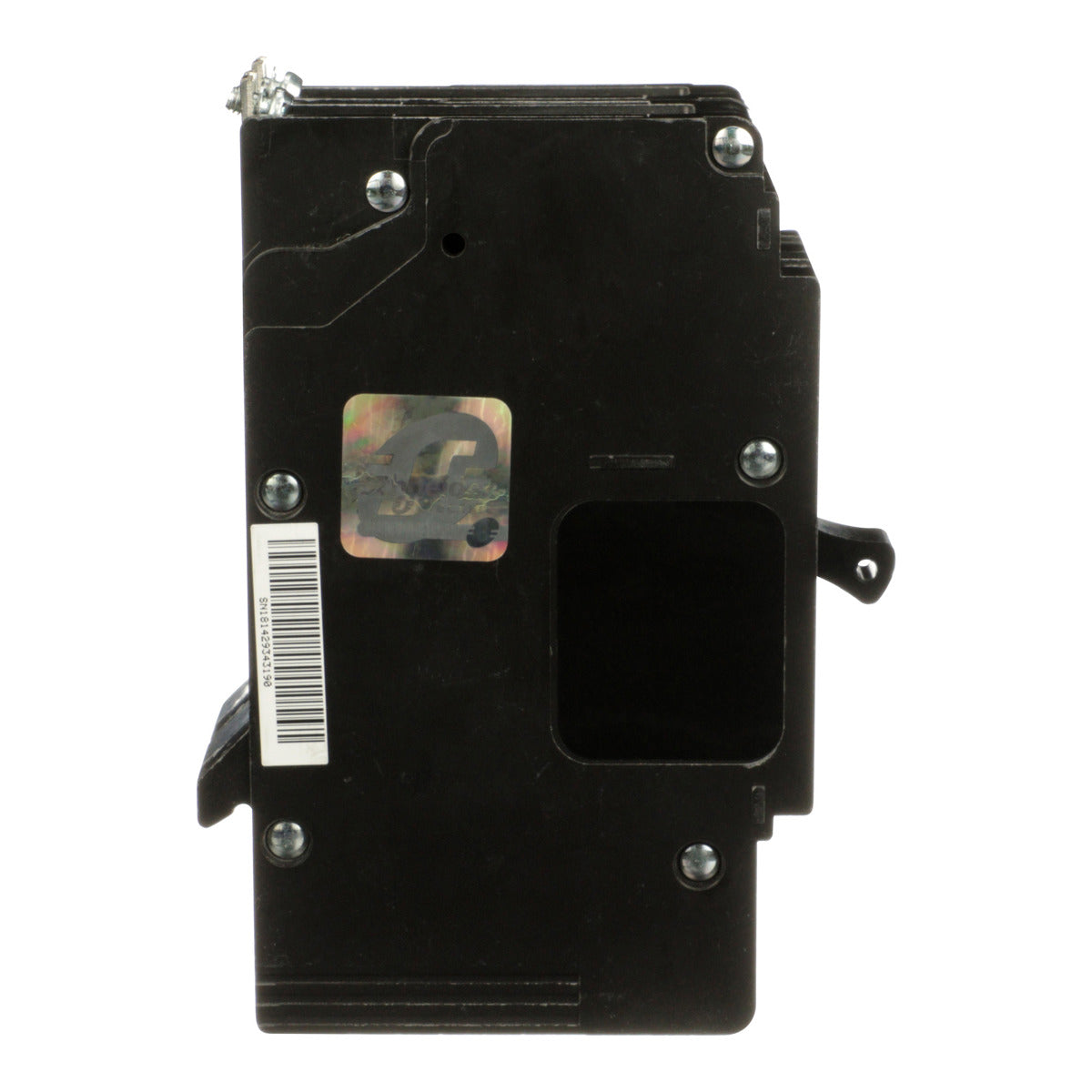

Square D EDB24070 Mini Circuit Breaker 70 Amp 480Y/277 Volt

Product Description

The Square D EDB24070 is a miniature circuit breaker designed for use in NF panelboards. This bolted unit offers effective protection against overload and short circuit conditions. It features a thermal-magnetic trip unit with a signal indicator to help track trips. The breaker has a maximum voltage rating of 480Y/277 VAC and provides a hold current of 630A, with a trip current of 1800A guaranteed to trip.

• Voltage Rating: 480Y/277 VAC
• Trip Type: Thermal-magnetic
• Interrupt Rating: 18 kA

Product Highlights

This circuit breaker is HACR rated and comes with versatile mounting options, suitable for various installations.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: EDB24070
• Number of Poles: 2
• Depth: 4.05 inches
• Width: 1.96 inches
• Height: 5.66 inches
• Weight: 3 lbs
• Trip Unit Technology: Thermal-magnetic
• Breaking Capacity: 25 kA max

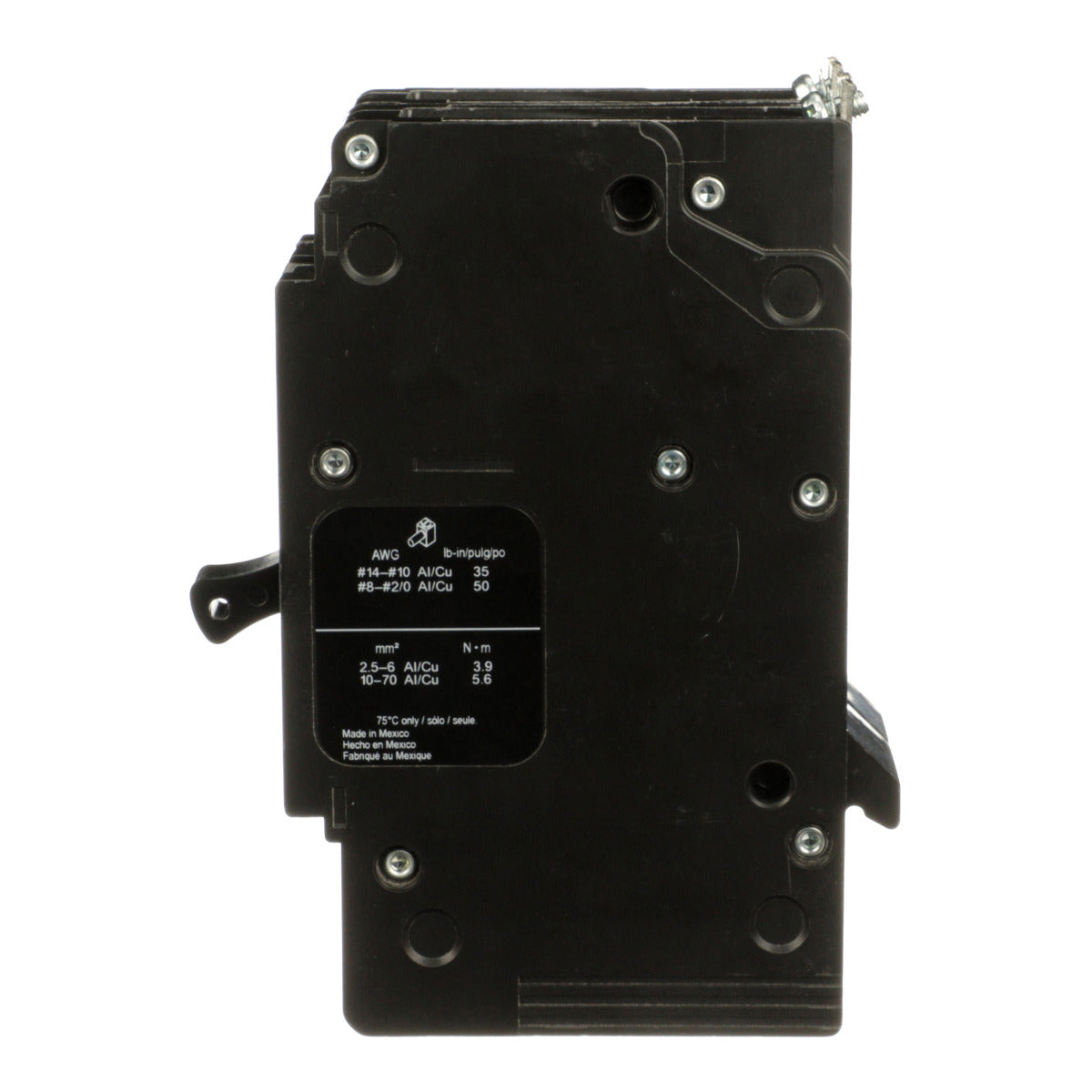

• Electrical Connection: Lugs for AWG 12 to 2/0 aluminum and AWG 14 to 2/0 copper
