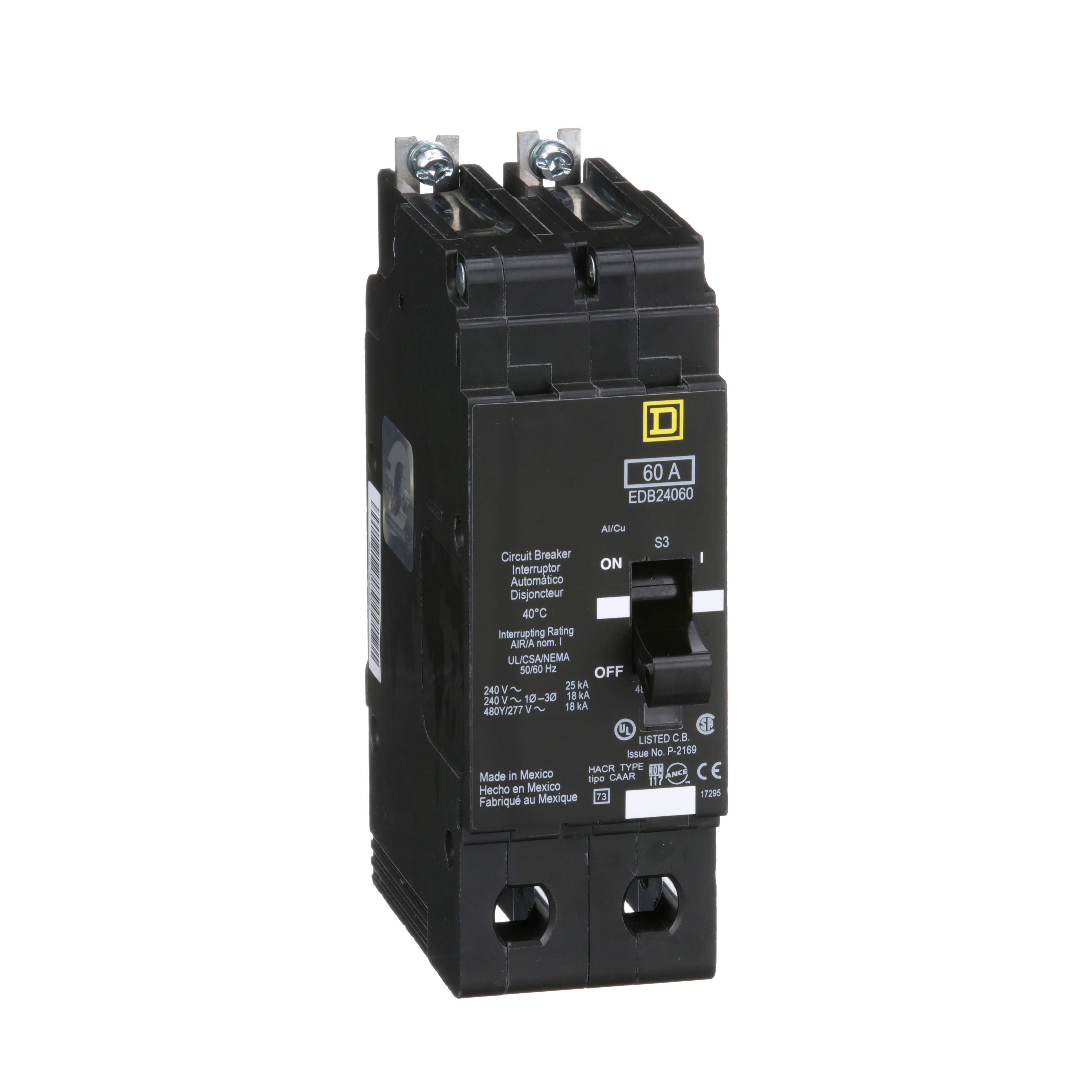

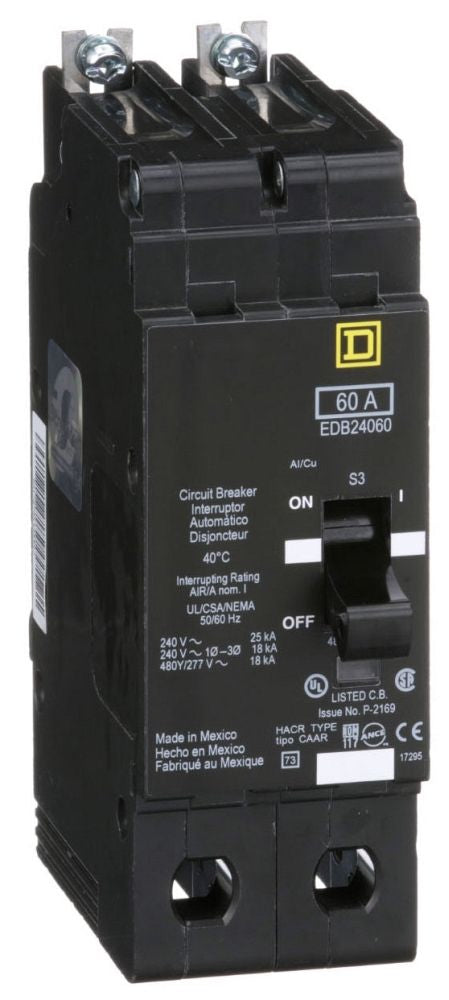

Square D EDB24060 2-Pole 60 Amp 480 Star/277 Volt Thermal Magnetic Miniature Circuit Breaker

Product Description

The Square D EDB24060 is a two-pole, sixty amp thermal magnetic miniature circuit breaker designed for use in NF panelboards. It operates at a voltage of four hundred eighty Y to two hundred seventy-seven VAC. This device features a thermal-magnetic trip unit for reliable overload and short-circuit protection.

• Rated current: 60 amps
• Rated voltage: 480Y/277 VAC
• Breaking capacity: 25 kA max at 120 VAC

Product Highlights

This circuit breaker includes a sign indicator that alerts when a trip has occurred. The EDB24060 is HACR rated, meaning it is suitable for heating, air conditioning, and refrigeration applications. The use of aluminum lugs allows connections for AWG 12 to 2/0 aluminum and AWG 14 to 2/0 copper wires.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: EDB24060
• Frame Type: E-Frame
• Number of Poles: 2
• Weight: 4 lb
• Height: 5.66 in
• Width: 3.92 in
• Depth: 4.05 in
• Holding Current: 630 A
• Trip Current: 1800 A
• Ambient Temperature Rating: 50 degrees C
