Square D EDB24050 E-Frame Mini Circuit Breaker, 50A, 2-Pole, 480Y/277 VAC

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: EDB24050
Availability: Out Of Stock
$674.42
$674.42
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

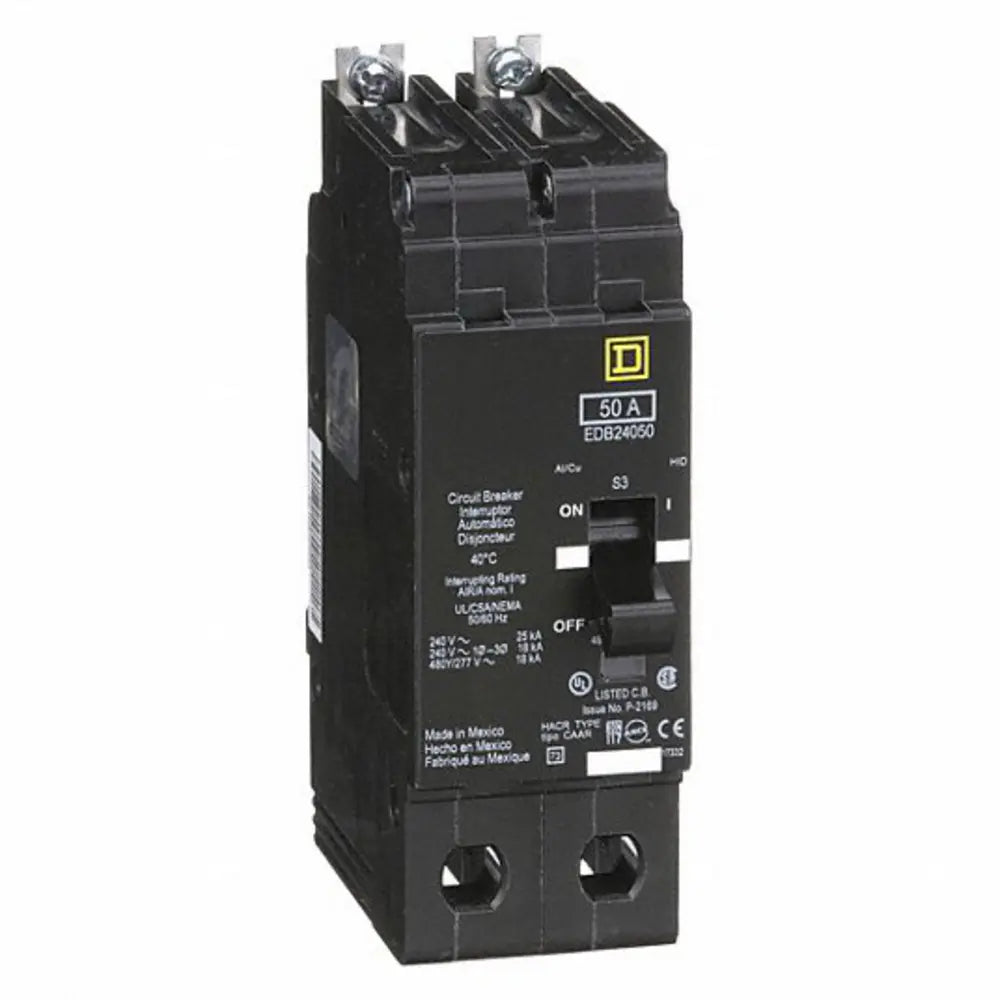

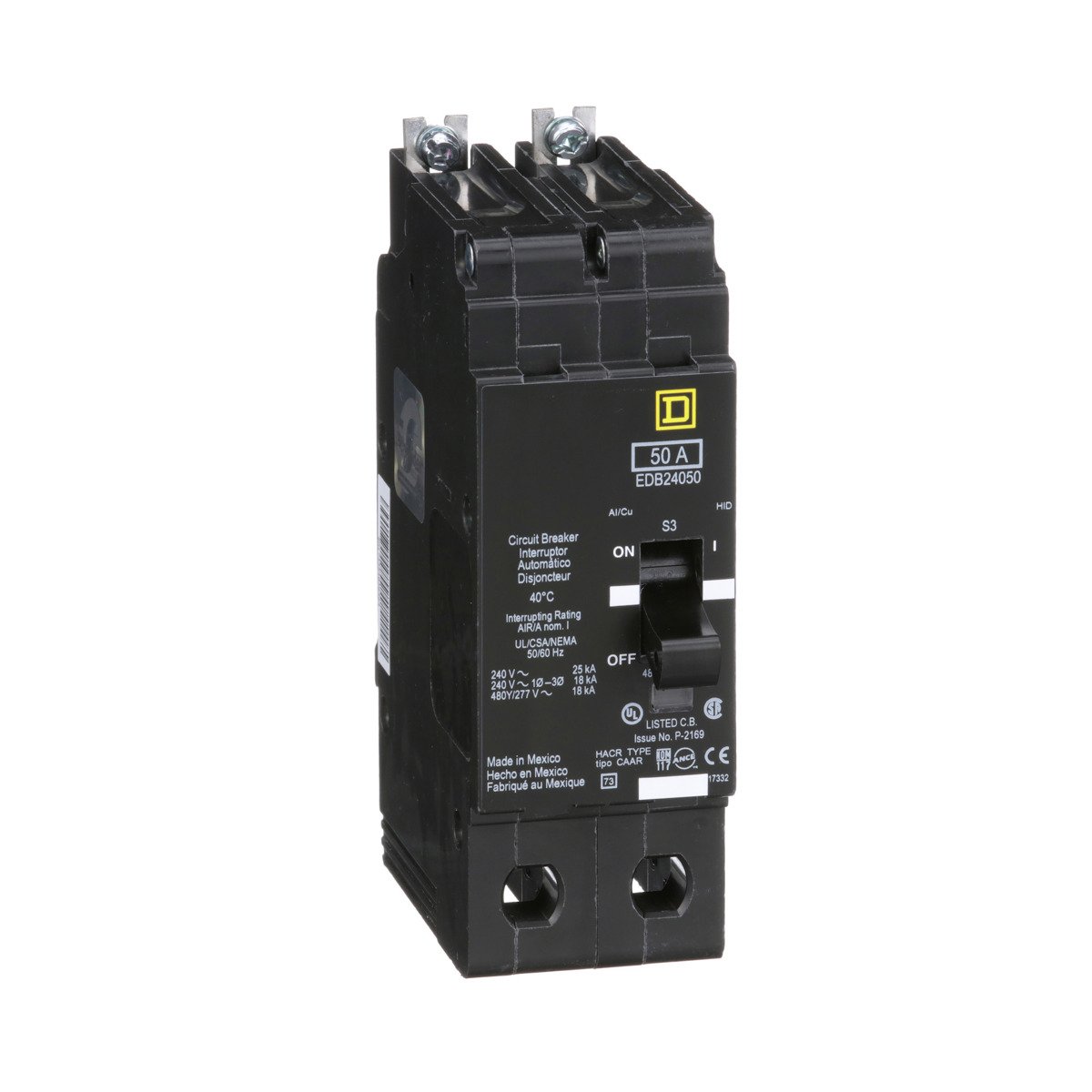

The Square D EDB24050 E-Frame mini circuit breaker is a reliable lighting panelboard circuit breaker designed for Square D NF Panelboards. This 2-pole breaker offers overload and short circuit protection with a thermal-magnetic trip unit and signal indicator. It has a voltage rating of 480Y/277 VAC and an amperage rating of 50A.

  • Provides overload and short circuit protection
  • Features a thermal-magnetic trip unit and signal indicator
  • HACR and HID rated

Product Highlights

This Square D EDB24050 is ideal for use in Square D NF Panelboards, offering robust features and reliable performance.

Product Information

Standard Information

  • Brand: SQUARE D
  • Manufacturer Part Number: EDB24050
  • Country of Origin: Mexico
Technical Specifications
Type
Bolt On - Standard Trip
Depth
4.05 Inches
Width
1.96 Inches
Height
5.66 Inches
Material
Thermoplastic
Standard
cULus
Trip Type
Thermal Magnetic
Connection
Screw terminal
Voltage Rating
120/240/277 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz (UL/CSA), 240 VAC at 50/60 Hz (IEC)
Amperage Rating
50 Amperes
Number Of Poles
2-Pole
Interrupt Rating
25 kAIC
Frame
E-FRAME
Voltage
277/480 VAC
Sub Brand
EDB
Trip Range
1800 A
Module Type
E-Frame
Applications
HACR rated;HID rated
Mounting Type
Bolt-On
TC Connection
LUGS #12 TO #2/0 AWG(AL) - #14 TO #2/0 AWG(CU)
Certifications
CULus
Number of Spaces
2
Line Rated Current
50 A
Operating Temperature
40 Adegrees C
Application
Lighting
Used On
Class 515 NF Series Panelboard
Approval
UL, CSA, NOM 117
Tripping Method
Thermal Magnetic
Terminal Wire Size
12 to 2/0 AWG (Aluminum), 14 to 2/0 AWG (Copper)
Manufacturer
Schneider Electric
Current Rating
50 Ampere
Interrupting Rating
25 Kiloampere at 120/240 VAC, 18 Kiloampere at 480 VAC Star/277 VAC or 277 VAC (UL/CSA)
Trip Setting
630 to 1800 Ampere
Frame Type
E
Holding Current
630 A
Tightening Torque
3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
Breaking Capacity Code
D
Product Destination
NF panelboard
Electrical Connection
Aluminum Lugs
Number of Spaces Required
2
Protection Type
overload || short-circuit
Local Signalling
trip indicator
AWG Gauge
AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
Breaking Capacity
18 kA 277 V AC || 25 kA 240 V AC || 18 kA 480Y/277 V AC || 25 kA 120 V AC || 25 kA 120/240 V AC
Trip Unit Technology
thermal-magnetic
[Ue] rated_operational_voltage
480Y/277 V AC
Ambient Air Temperature For Operation
40 °C
IGCC
4897
Family group
DISTRIBUTION EQUIPMENT
Mounting Mode
Bolt-on
Special Features
Trip indicator
Holding Current - Metric
630 A
Trip Unit Rating - Metric
1800 A
Line Rated Current - Metric
50 A
Part Number
EDB24050
Family
EDB Series
Pole
2
Amp
50
Volt
480
Phase
1
Category
Molded Case / 2-Pole
Functions
LI - Long-Time and Instantaneous
AIC Ratings
18kA@480V | 18kA@277V | 25kA@240V | 25kA@120V
Maximum Operating Voltage
480Y/277 V AC
Trip Unit Rating
875 Amp
product_or_component_type
miniature circuit-breaker
trip_unit_rating
1800-1800 A
device_short_name
EDB
breaking_capacity
18 kA 277 V AC || 25 kA 240 V AC || 18 kA 480Y/277 V AC || 25 kA 120 V AC || 25 kA 120/240 V AC
ambient_air_temperature_for_operation
40 °C
range_of_product
125 A Frame EDB-EGB-EJB
