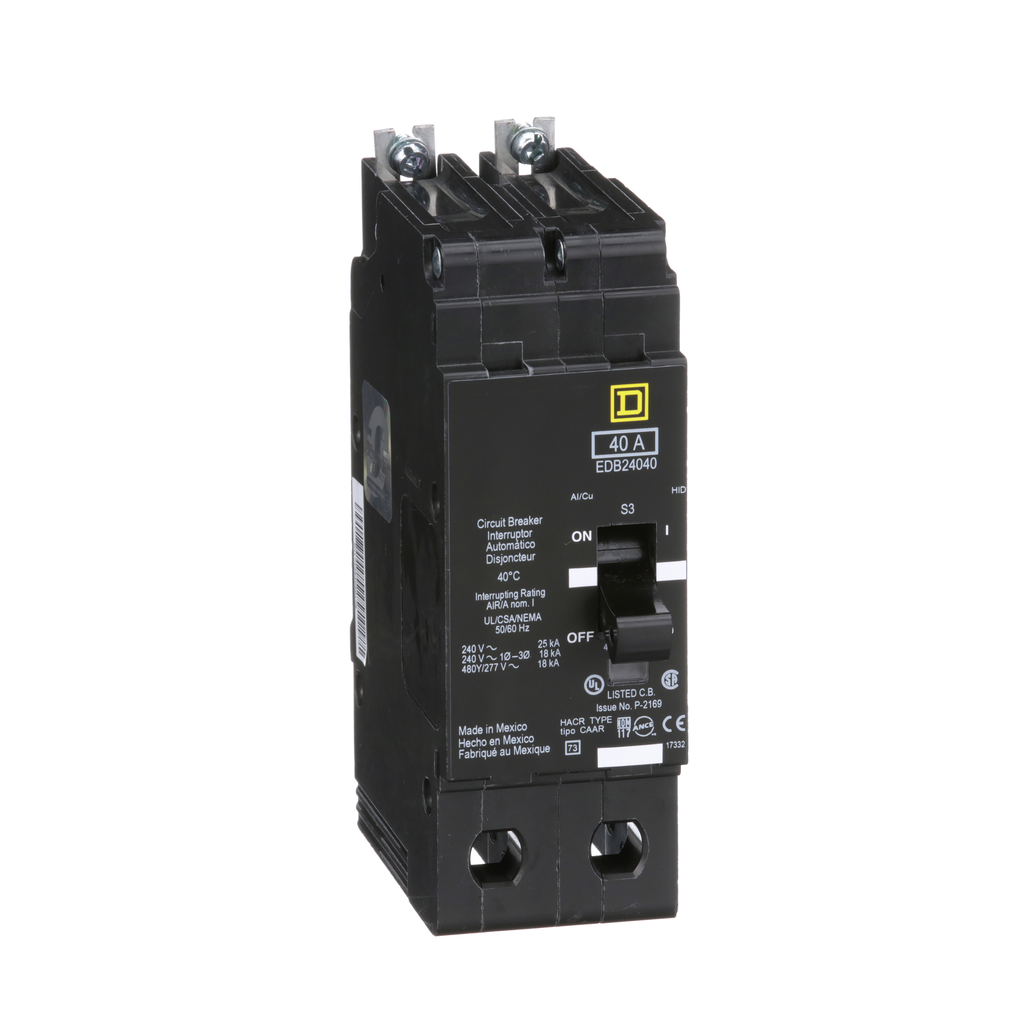

Square D EDB24040 Miniature Circuit Breaker 40 Amp 480Y/277 Volt EDB24040

Product Description

Square D EDB24040 is a 40 Amp miniature circuit breaker designed for 480Y/277 Volt applications. This breaker is suitable for use in lighting panelboards and offers reliable overload and short circuit protection. The EDB24040 features a thermal-magnetic trip unit and a signal indicator to show when a trip occurs.

• Rated for two poles and operates at 40 Amps.
• UL Listed with a maximum interrupt rating of 25 kA at 120/240 VAC.
• Includes aluminum lugs compatible with various wire gauges.

Product Highlights

This circuit breaker is HACR and HID rated, making it ideal for specific applications. It has a hold current of 630 Amps and a trip current of 1800 Amps, providing a secure operational threshold. Designed for mounting in NF panelboards, this device helps to enhance safety and reliability in electrical systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: EDB24040
• Voltage Rating: 277/480 VAC
• Amperage: 40 Amp
• Number of Poles: 2 Pole
• Weight: 3 lb
• Dimensions: 5.66 in height, 1.96 in width, 4.05 in depth
• Trip Type: Thermal-magnetic
• Country of Origin: Mexico
• Warranty Length: 18 months
