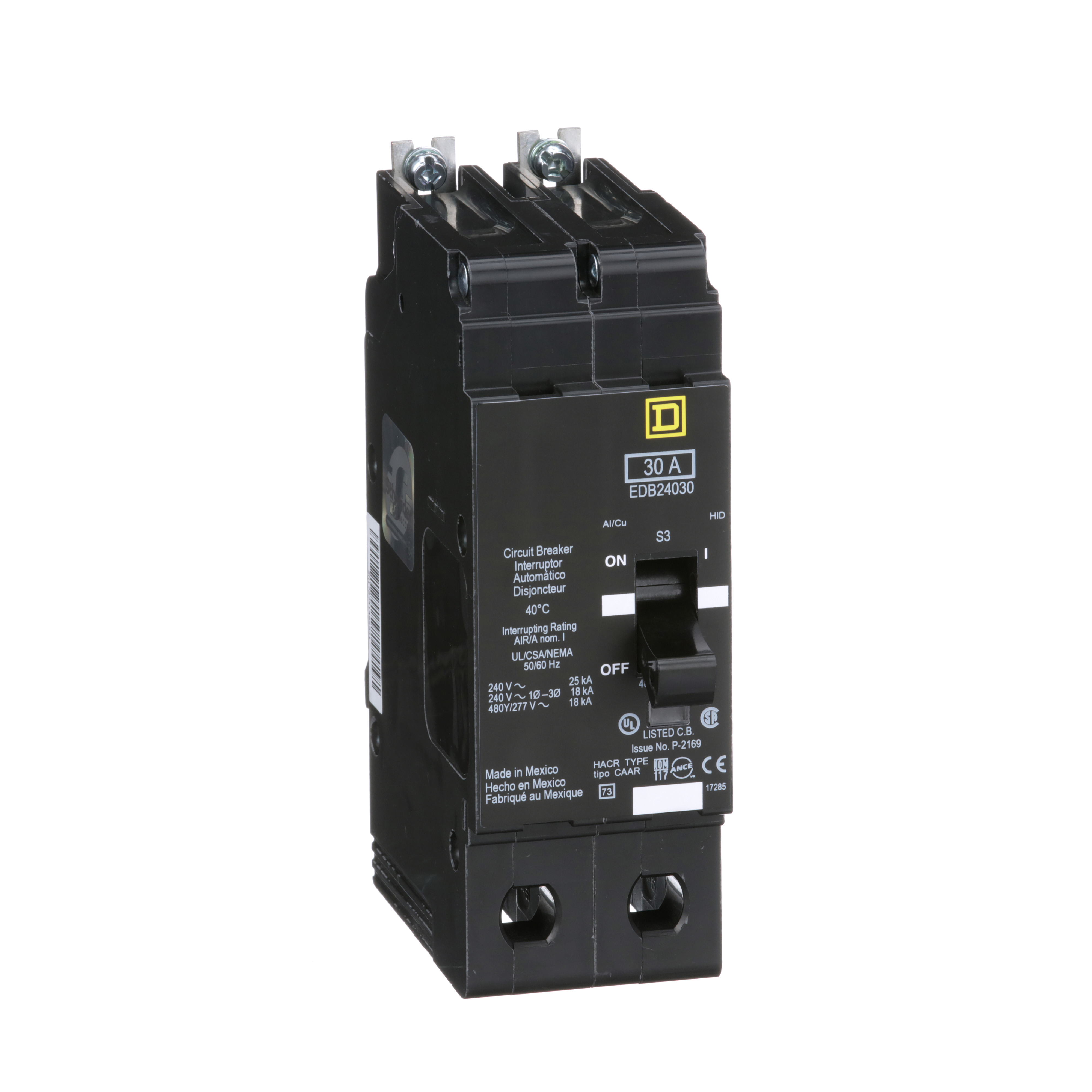

Square D EDB24030 2-Pole 30 Amp 480Y/277 Volt Thermal Magnetic Miniature Circuit Breaker

Product Description

The Square D EDB24030 is a 2-pole, 30 Amp thermal magnetic miniature circuit breaker designed for use in 480Y/277 VAC systems. This circuit breaker features an E-frame design and is UL listed, making it suitable for high-intensity discharge applications. It incorporates a thermal-magnetic trip unit that provides reliable overload and short-circuit protection while indicating trip status. Ideal for Square D NF Panelboards, it is calibrated for operation at a temperature of 40 degrees Celsius.

• Rated at 30 Amps with a voltage of 480Y/277 VAC
• Features a 25 kA maximum interrupt rating at 120/240 VAC
• Thermal-magnetic trip unit ensures reliable operation and protection

Product Highlights

This circuit breaker is designed to be mounted bolt-on for easy installation. With a breaking capacity of 18 kA at 480Y/277 VAC, it can handle significant electrical loads. The device includes aluminum lugs that accommodate wire sizes from AWG 12 to AWG 6.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: EDB24030
• Voltage: 277/480 VAC
• Amperage: 30 Amp
• Trip Type: Thermal-magnetic
• Width: 1.96 inches
• Height: 5.66 inches
• Depth: 4.05 inches
• Weight: 3 lb
• Number of Poles: 2
• Breaking Capacity (Max): 25 kA
• Operating Temperature: 40 degrees C
• Country of Origin: Mexico
• Warranty: 18 months
• Applications: HID rated, HACR rated
• Mounting Type: Bolt-On
• Line Rated Current: 30 A
