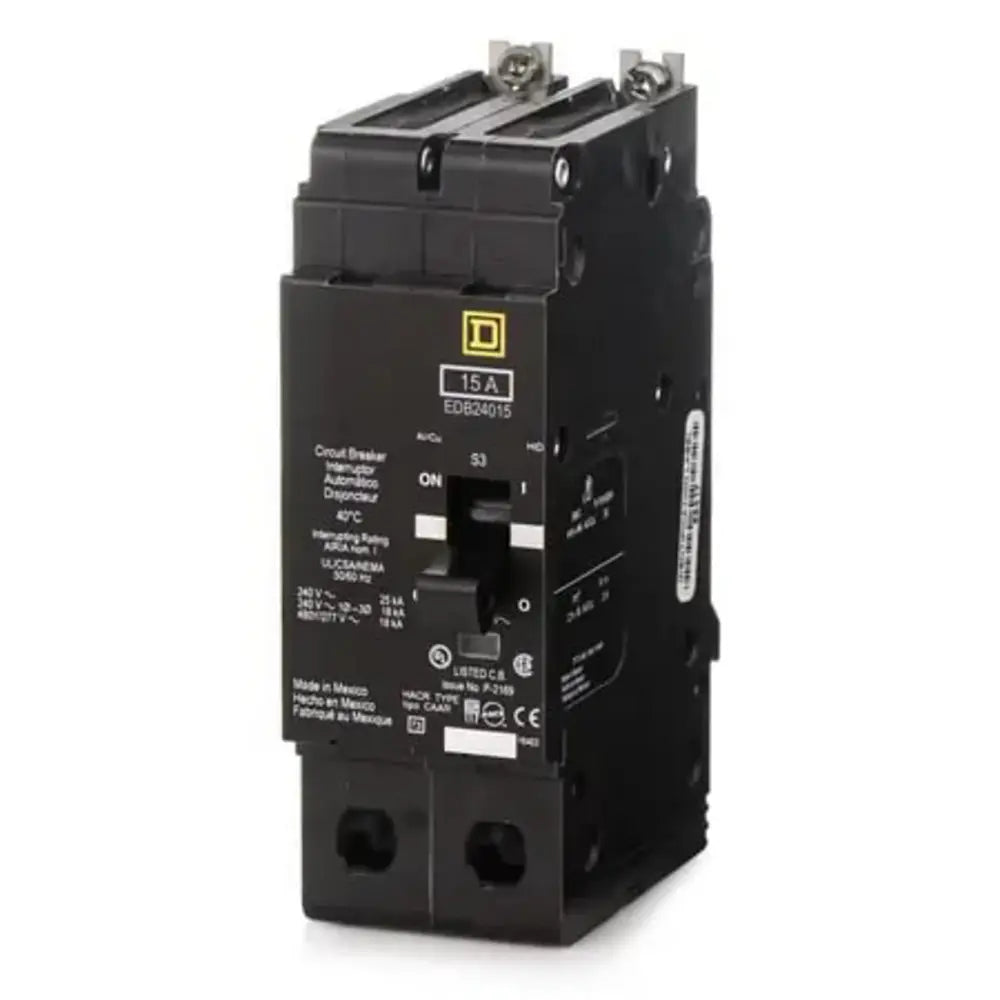

Square D EDB24015 E-Frame Mini Circuit Breaker 15A, 2-Pole, 480Y/277 VAC

Product Description

Square D EDB24015 is an E-Frame mini circuit breaker designed for reliable use in lighting panelboards. This product is rated at 15 Amperes and operates at a voltage of 480Y/277 VAC. The breaker is UL Listed and CSA certified for safety and compliance.

• Two pole configuration with thermal-magnetic trip unit.
• HACR and HID rated for use in various applications.
• Breaking capacity of 18 kA at 480Y/277 VAC and 25 kA at 120/240 VAC.

Product Highlights

This mini circuit breaker offers superior overload and short circuit protection, making it ideal for installation in Square D NF panelboards.

Product Information

Standard Information

• Amperage Rating: 15 Amperes
• Number Of Poles: 2-Pole

Technical Specifications

• Voltage Rating: 480Y/277 VAC
• Interrupt Rating: 25 kAIC
• Height: 5.66 inches
• Width: 1.96 inches
• Depth: 4.05 inches
• Weight: 3 lbs
• Material: Thermoplastic
• Country of Origin: Mexico
