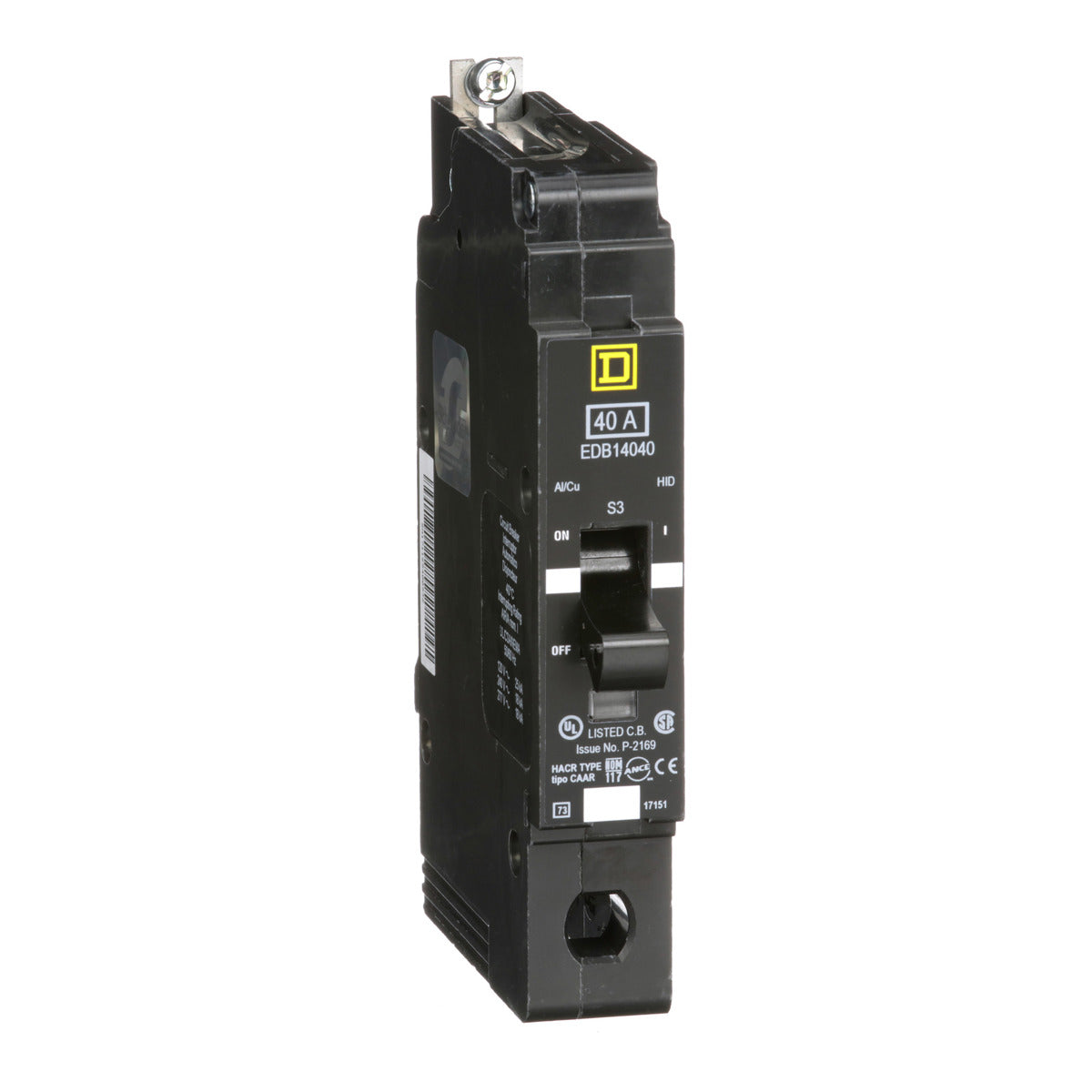

Square D EDB14040 1-Pole 40 Amp 277 Volt Thermal Magnetic Miniature Circuit Breaker

Product Description

The Square D EDB14040 is a 1-pole, 40 Amp, 277 VAC thermal-magnetic miniature circuit breaker designed for Square D NF Panelboards. This E-Frame breaker provides overload and short circuit protection with a signal indicator for trip events. It is HID and HACR rated and features aluminum lugs with a terminal lug rating of AWG 12...AWG 2/0 (aluminum) and AWG 14...AWG 2/0 (copper).

• E-Frame Breaker for Lighting Panelboards
• Thermal-magnetic trip unit with signal indicator
• Suitable for bolt-on installation

Product Highlights

This Square D miniature circuit breaker is UL Listed, CSA rated, and calibrated for 40 degrees C.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: EDB14040
• Country of Origin: Mexico

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• Frame: E-FRAME
• Voltage: 277 VAC
• Amperage: 40 Amp
• Sub Brand: EDB
• Trip Type: Thermal-magnetic
• Applications: HACR rated;HID rated
• Mounting Type: Bolt-On
• Number of Poles: 1 Pole
• Interrupt Rating: 18 kAIC
• Line Rated Current: 40 A
• Catalog Number: EDB14040
• Manufacturer: Schneider Electric
• UPC: 785901878957
• GTIN: 00785901878957
• Voltage Rating: 120/240/277 VAC at 50/60 Hz (UL/CSA), 240/415 VAC at 50/60 Hz (IEC)
• Current Rating: 40 Ampere
• Installation: Bolt-On
• Application: Lighting
• Used On: Class 515 NF Series Panelboard
• Approval: UL, CSA, NOM 117
• Tripping Method: Thermal Magnetic
• Terminal Wire Size: 12 to 2/0 AWG (Aluminum), 14 to 2/0 AWG (Copper)
• Standards: Trade Agreements Act (TAA)
• Rated Voltage: 277V ac
• Torque: 3.9-3.9 N.m
