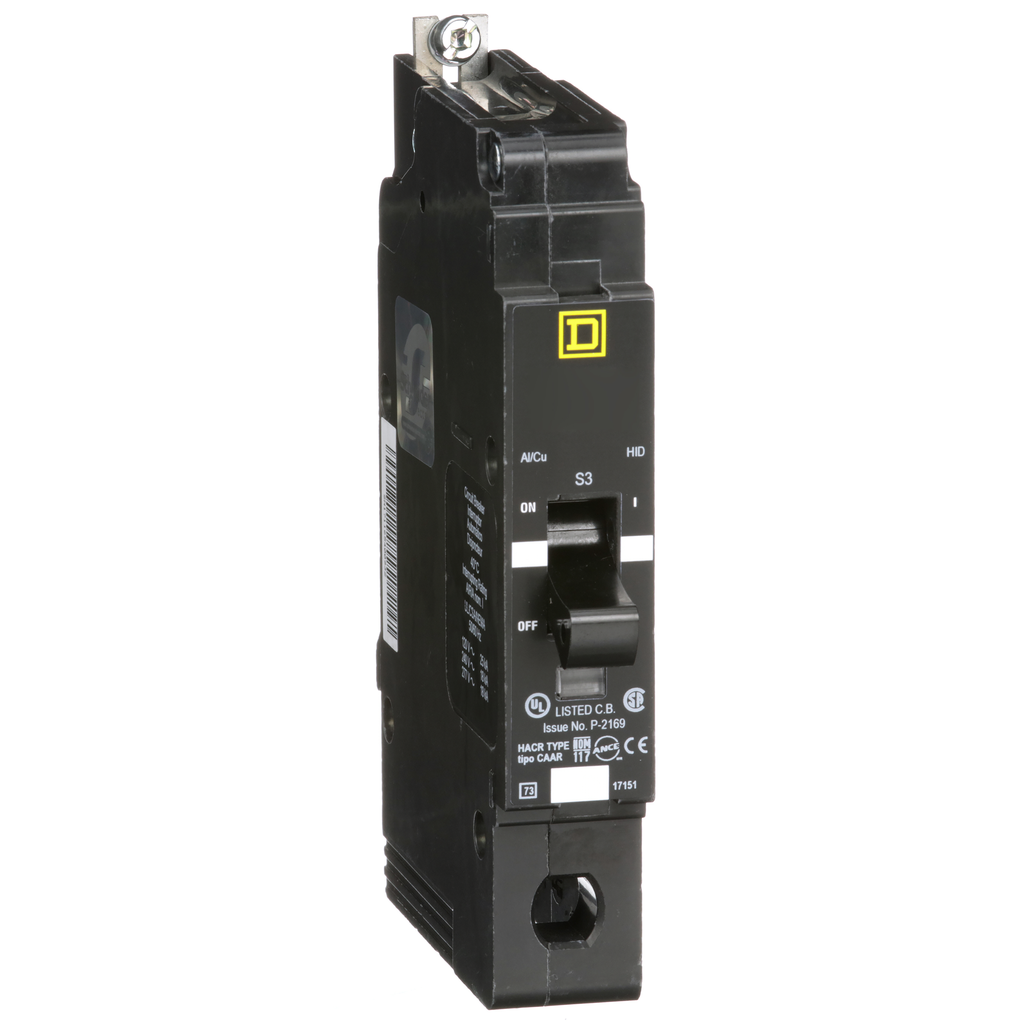

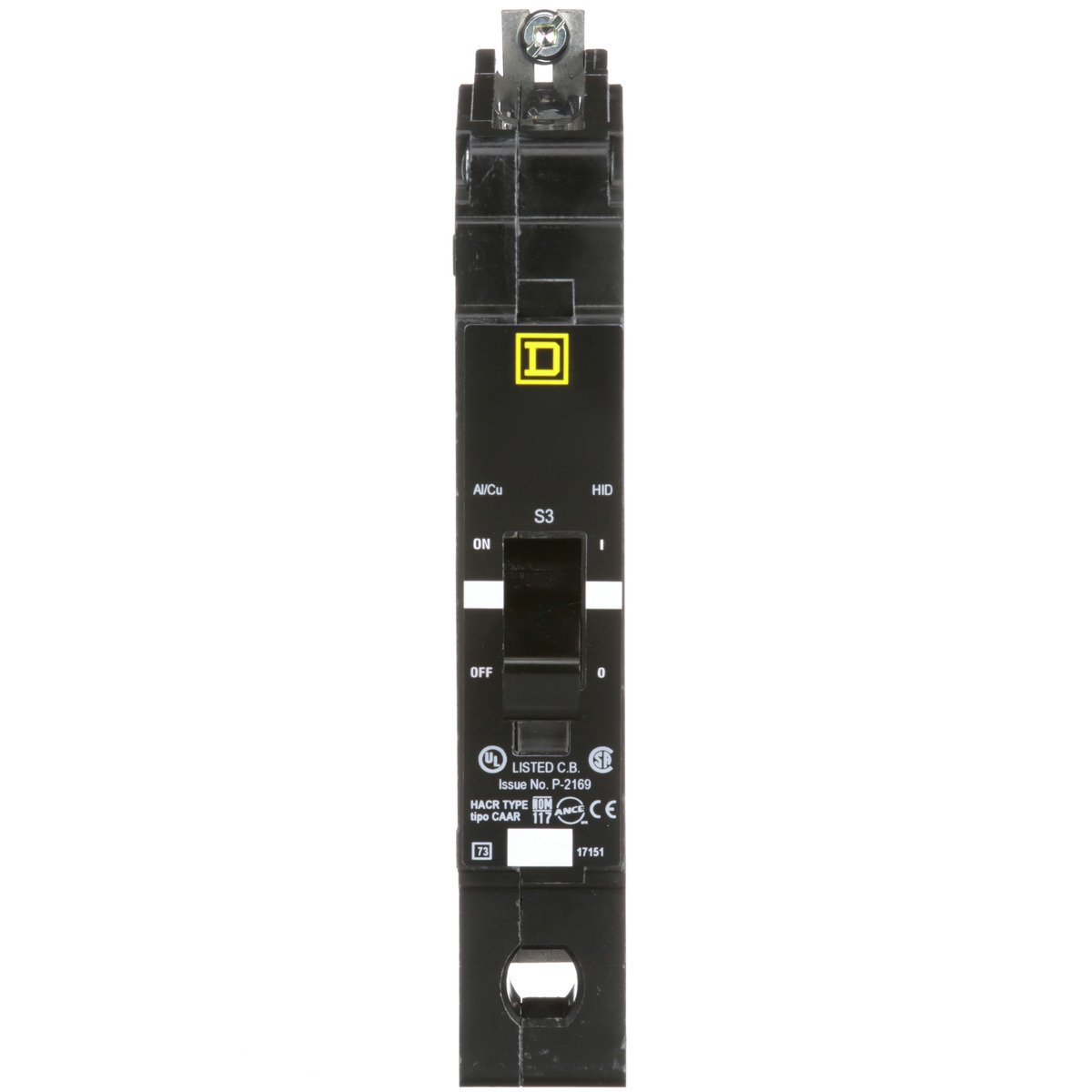

Square D EDB14030 Miniature Circuit Breaker 30 Amp 277 Volt

Product Description

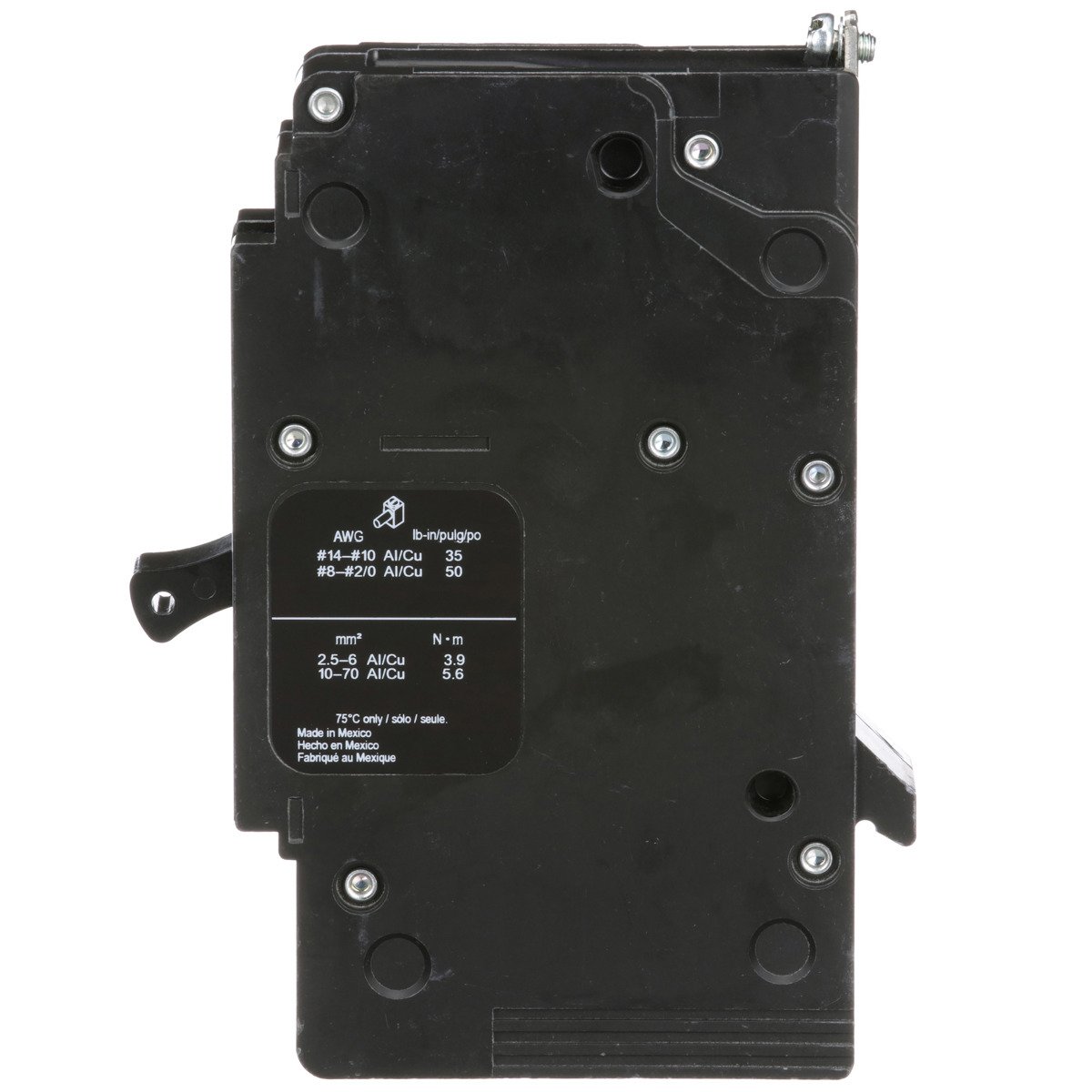

The Square D EDB14030 is a miniature circuit breaker designed to provide reliable overload and short circuit protection. This breaker operates at thirty amps and supports a maximum voltage of two hundred seventy-seven volts. It is UL listed for high intensity discharge applications and is suitable for various lighting panelboard setups. The breaker features a thermal-magnetic trip unit along with an indicator to show when a trip has occurred. It includes aluminum lugs for wire connections ranging from AWG twelve to six for aluminum and AWG fourteen to six for copper.

• One pole breaker with a maximum interrupt rating of twenty-five kA at one hundred twenty VAC.
• Hold current rated at two hundred seventy A ensures it will trip under load.
• Operable at a maximum ambient temperature of forty degrees Celsius.

Product Highlights

Ideal for NF panelboards, this breaker is HACR rated and includes numerous accessories for installation.

Product Information

Standard Information

• Catalog Number: EDB14030
• Brand: Square D
• Country of Origin: Mexico

Technical Specifications

• Voltage: 277 VAC
• Amperage: 30 Amp
• Frame Type: E-Frame
• Width: 0.98 inches
• Height: 5.66 inches
• Depth: 4.05 inches
• Weight: 2 lb
• Trip Type: Thermal-magnetic
• Breaking Capacity: 25 kA max
• Trip Current: 875 A
• Hold Current: 270 A
• Number of Poles: 1
• Warranty Length: 18 months
