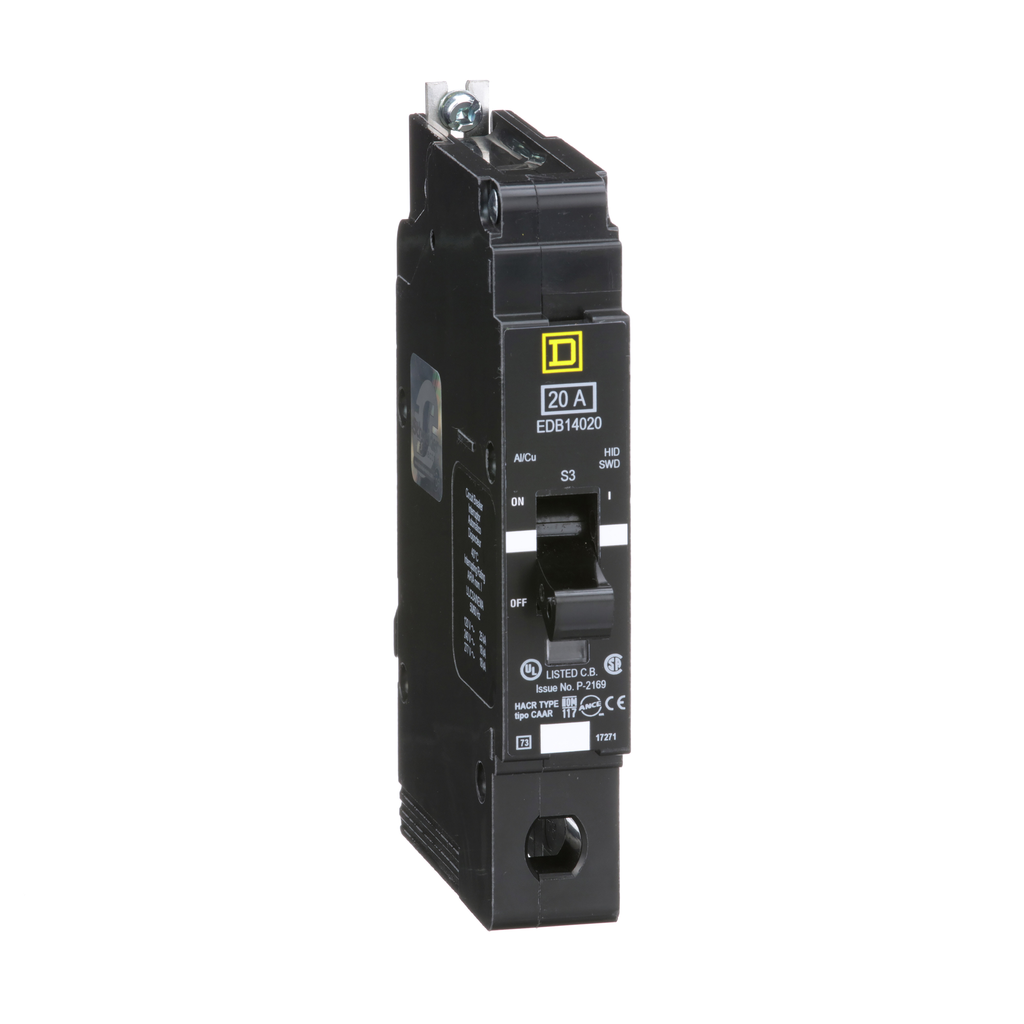

Square D EDB14020 1-Pole 20 Amp 277 Volt Thermal Magnetic Miniature Circuit Breaker

Product Description

Square D EDB14020 is a reliable 1-pole, 20 amp, 277 volt thermal magnetic miniature circuit breaker. It is designed specifically for use in Square D NF Panelboards. This breaker features a thermal-magnetic trip unit and includes an indicator for tripping events. It meets UL and CSA standards, ensuring safety and performance.

• Voltage rating: 277 VAC
• Tested breaking capacity of 25 kA at 120 VAC
• Hold current capacity of 270 A

Product Highlights

This circuit breaker is listings as HID rated, Switching Duty rated, and HACR rated. It has aluminum lugs designed to accommodate various wire sizes from AWG 12 to AWG 6 for aluminum and AWG 14 to AWG 6 for copper connections. The height is five point six six inches, width is point nine eight inches, and depth is four point zero five inches.

Product Information

Standard Information

• Catalog Number: EDB14020
• Manufacturer: Schneider Electric
• Country of Origin: Mexico

Technical Specifications

• Weight: 2 lb
• Trip Type: Thermal-magnetic
• Trip Range: 875 A
• Frame Type: E-Frame
• Mounting Type: Bolt-On
• Operating Temperature: 40 degrees C
• Certifications: CULus, IEC
