SCHNEIDER ELECTRIC DU325 RELAYS & SWITCHES

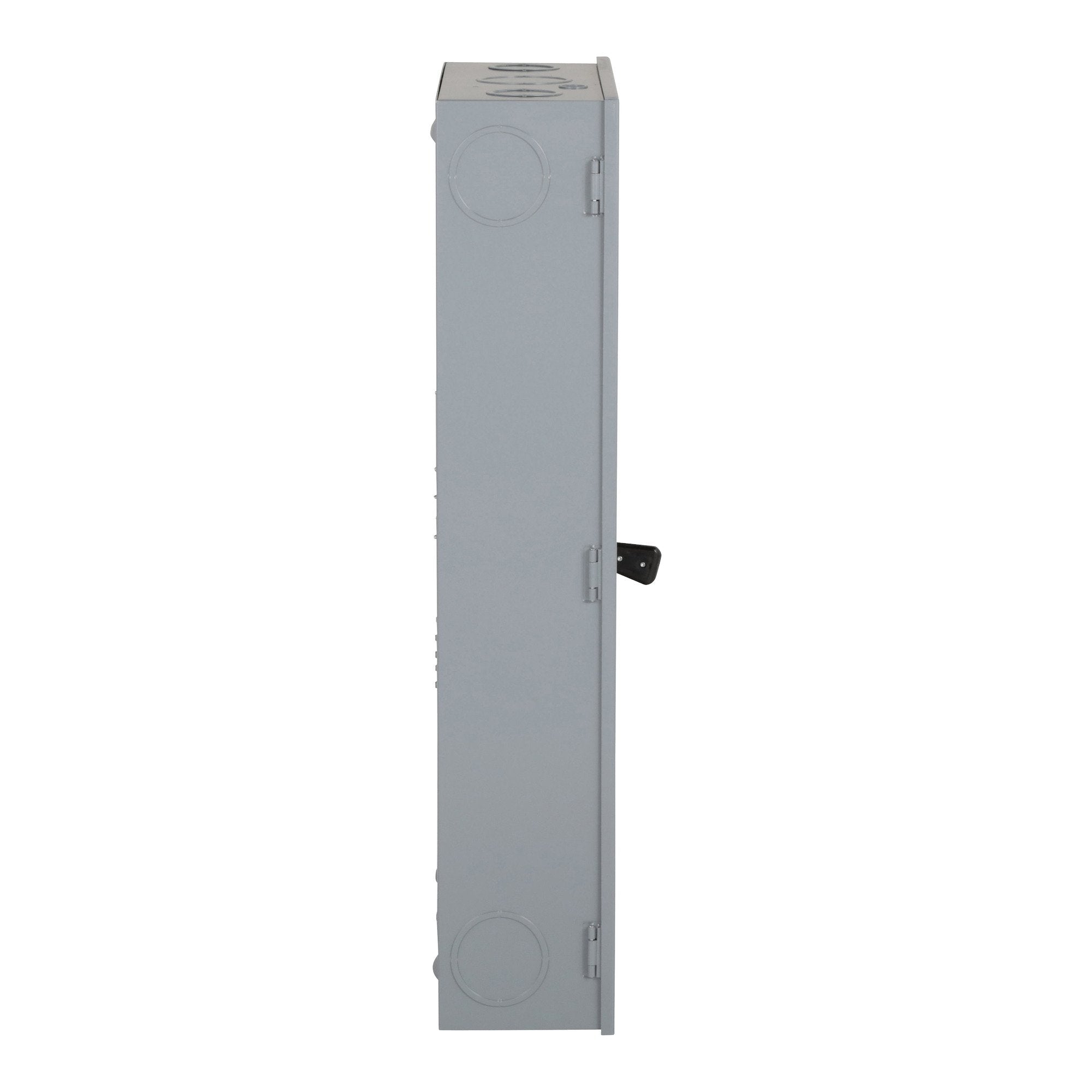

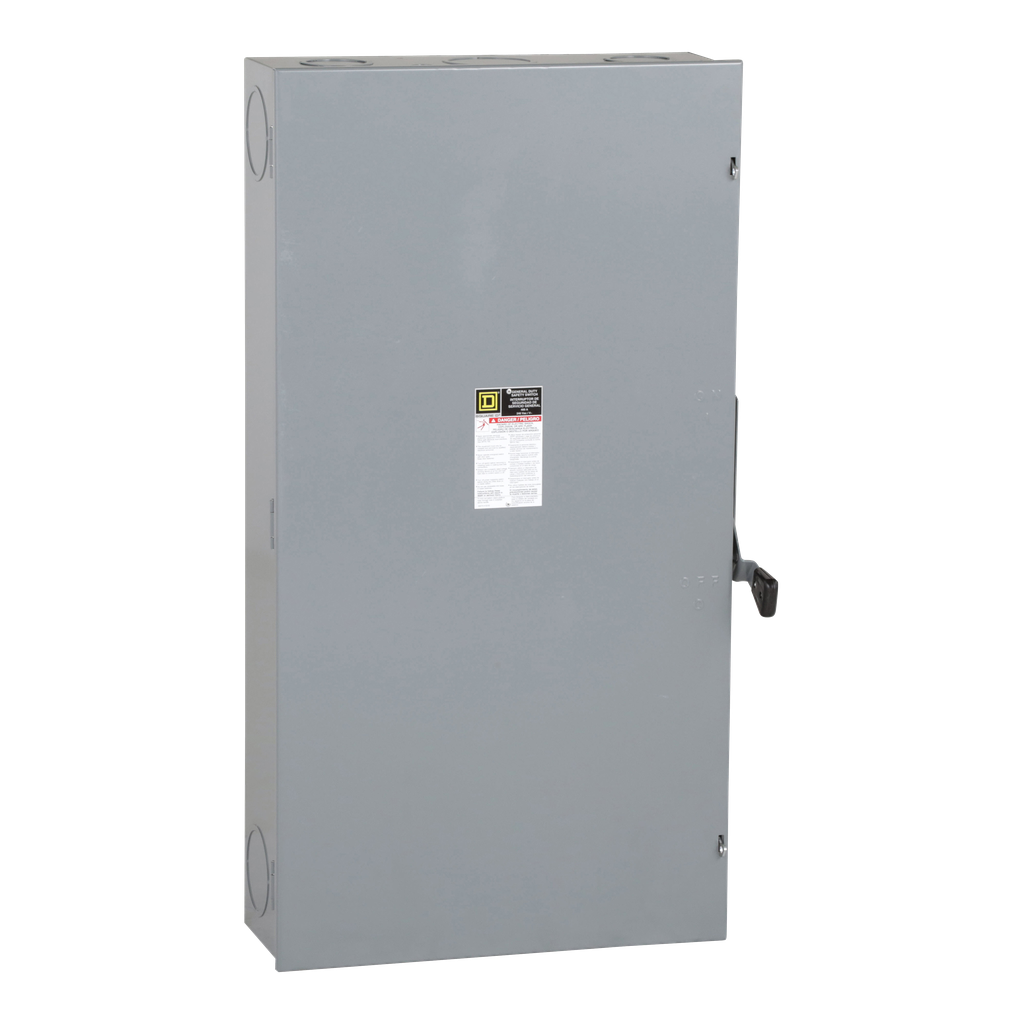

Square D DU325 Safety Switch Not-Fusible GD 240V 400A 3P NEMA-1

SCHNEIDER ELECTRIC
SKU: DU325
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Call for Pricing
Call for Pricing
Manuals:
LTL Delivery

This product weighs 114 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Square D DU325 is a safety switch designed for both residential and commercial applications. This general duty switch features a non-fusible disconnect with a current rating of four hundred amps and operates at two hundred forty volts. It is ideal for loads such as lighting, air conditioning, and appliances.

  • UL Listed and meets or exceeds NEMA Standard KS1.
  • Surface mounted with a NEMA-1 enclosure for indoor use.
  • Accepts AWG 1/0 to 600 kcmil for copper and aluminum connections.

Product Highlights

The DU325 features a three-pole design and short circuit rating of one hundred kA. It is built for durability and can be modified with accessories for enhanced performance.

Product Information

Standard Information

  • Brand: Square D
  • Manufacturer: Schneider Electric

Technical Specifications

  • Catalog Number: DU325
  • Type: Non-fusible disconnect switch; Single Throw Safety Switch
  • Voltage: 240 Volt
  • Current: 400 Amp
  • Number of Poles: 3
  • Height: 45.12 inches
  • Width: 24.88 inches
  • Depth: 8.88 inches
  • Weight: 114.64 pounds
  • Enclosure Rating: NEMA 1
  • Wire Size: AWG 1/0 to 600 kcmil aluminum/copper; 2 x AWG 1/0 to 2 x 300 kcmil aluminum/copper
  • Warranty: 18 months
