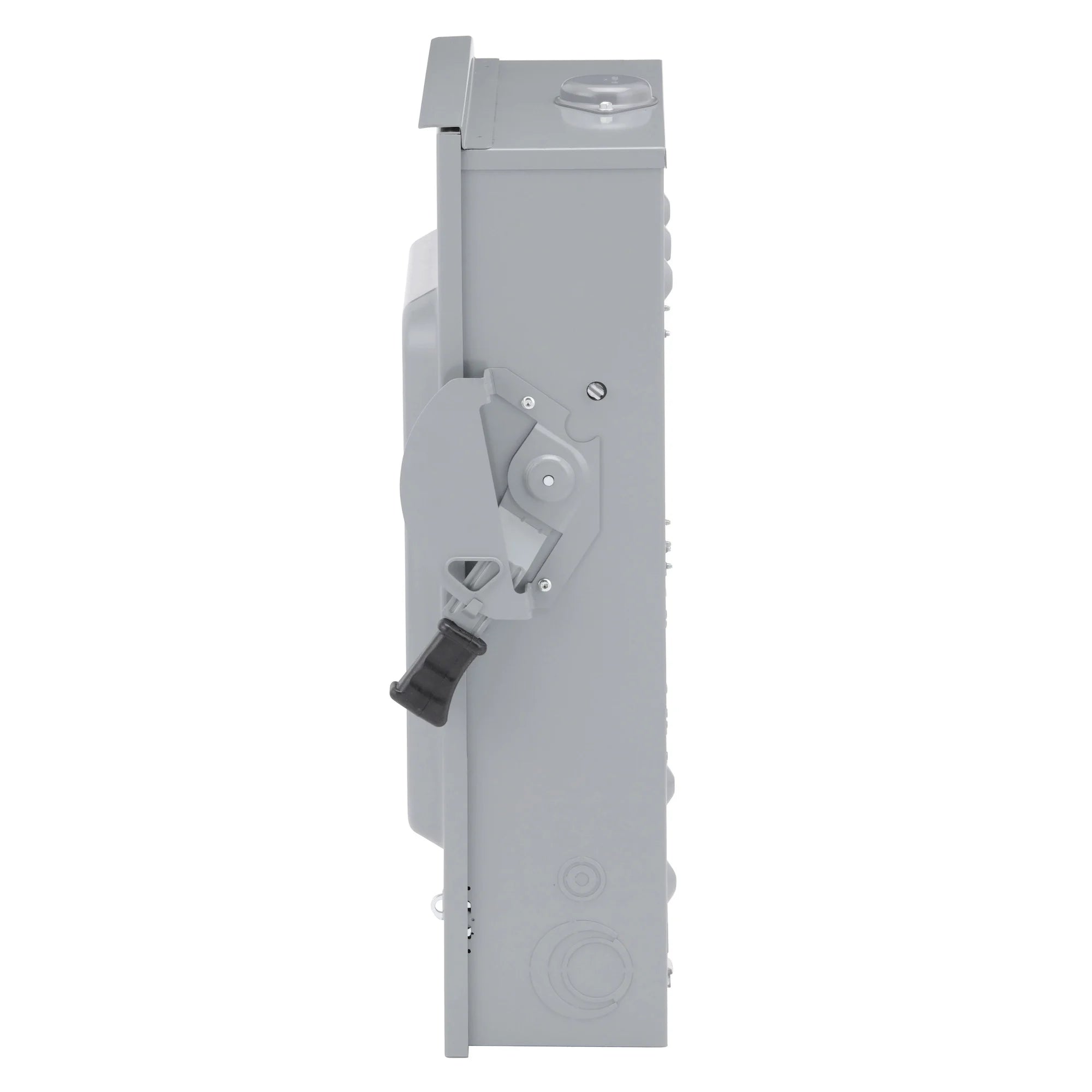

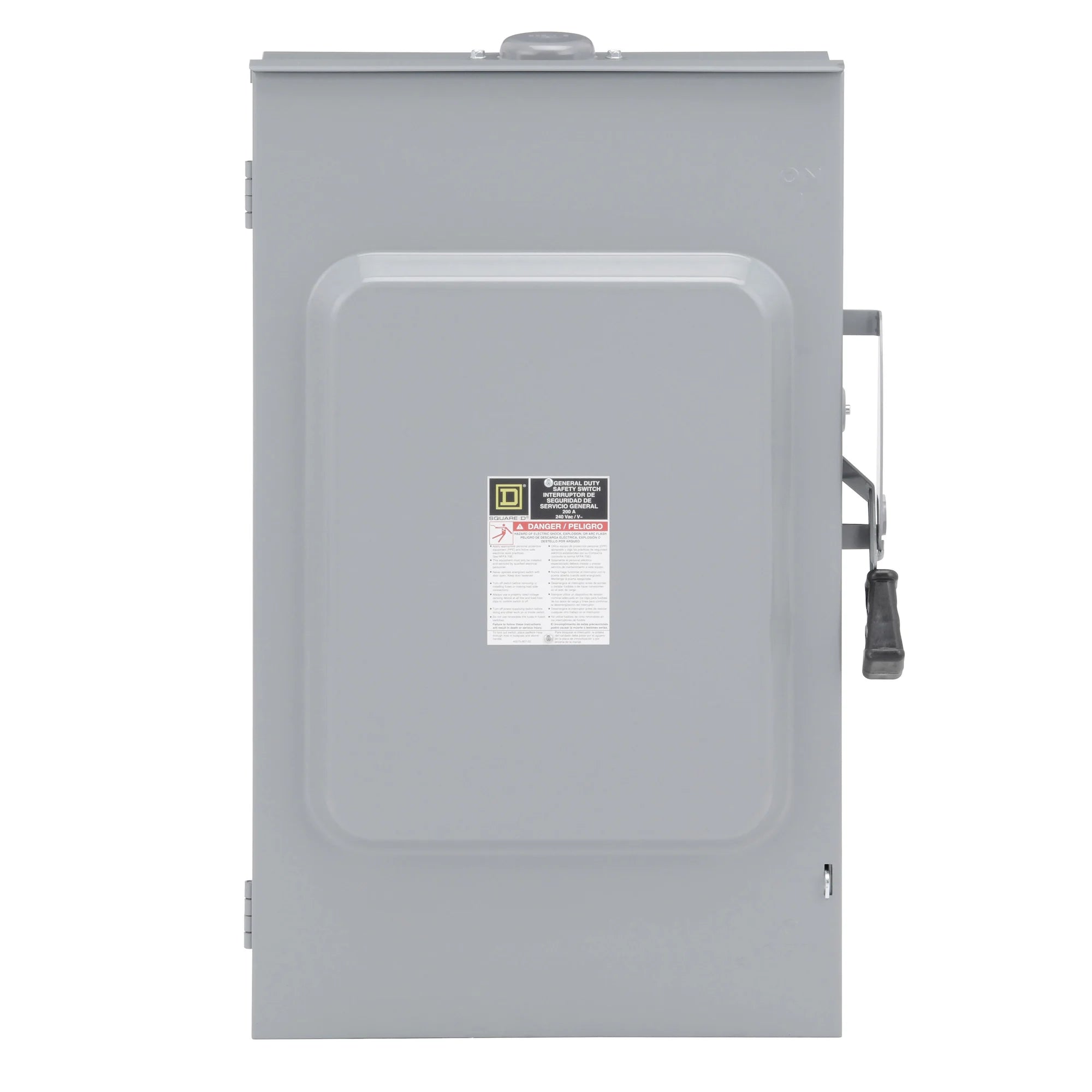

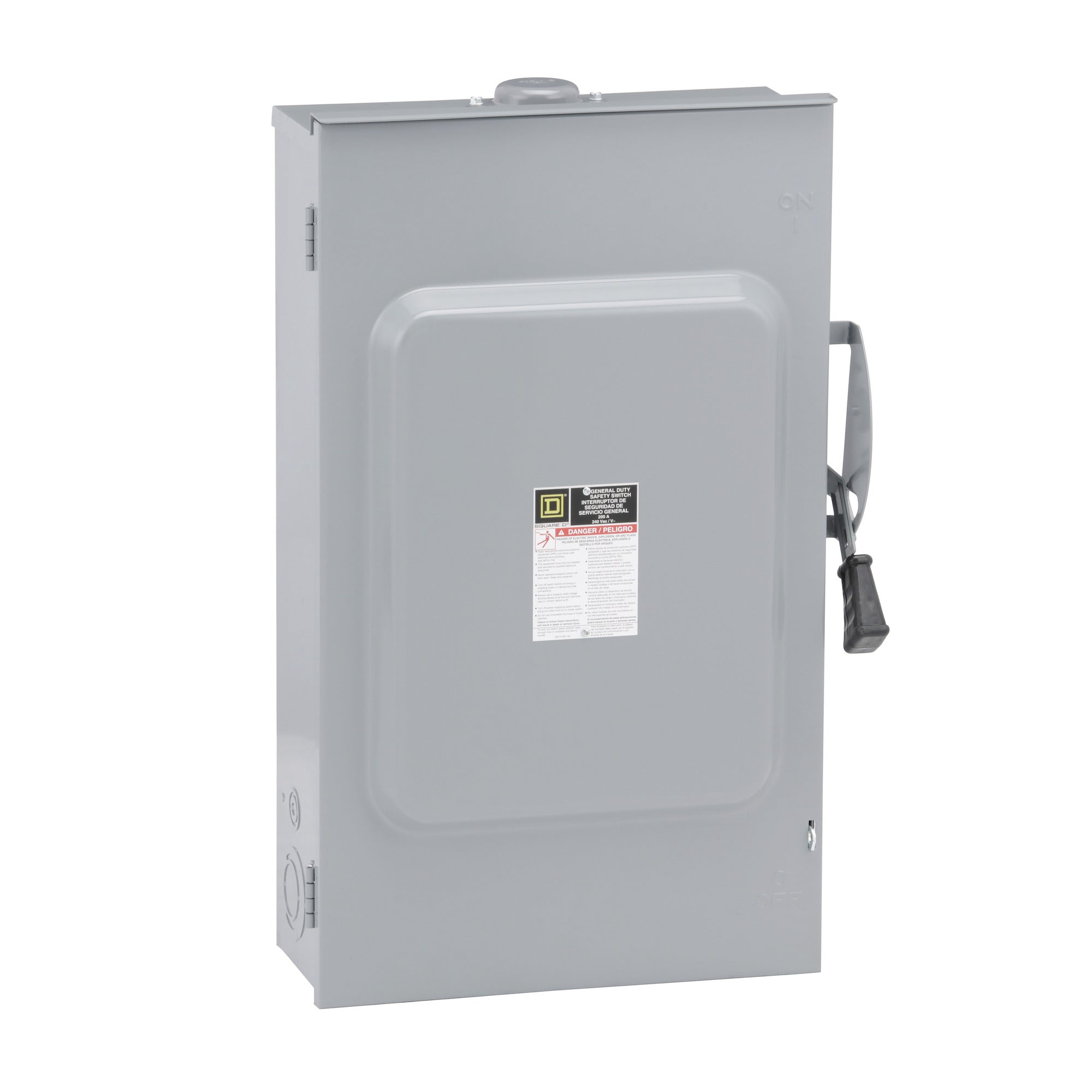

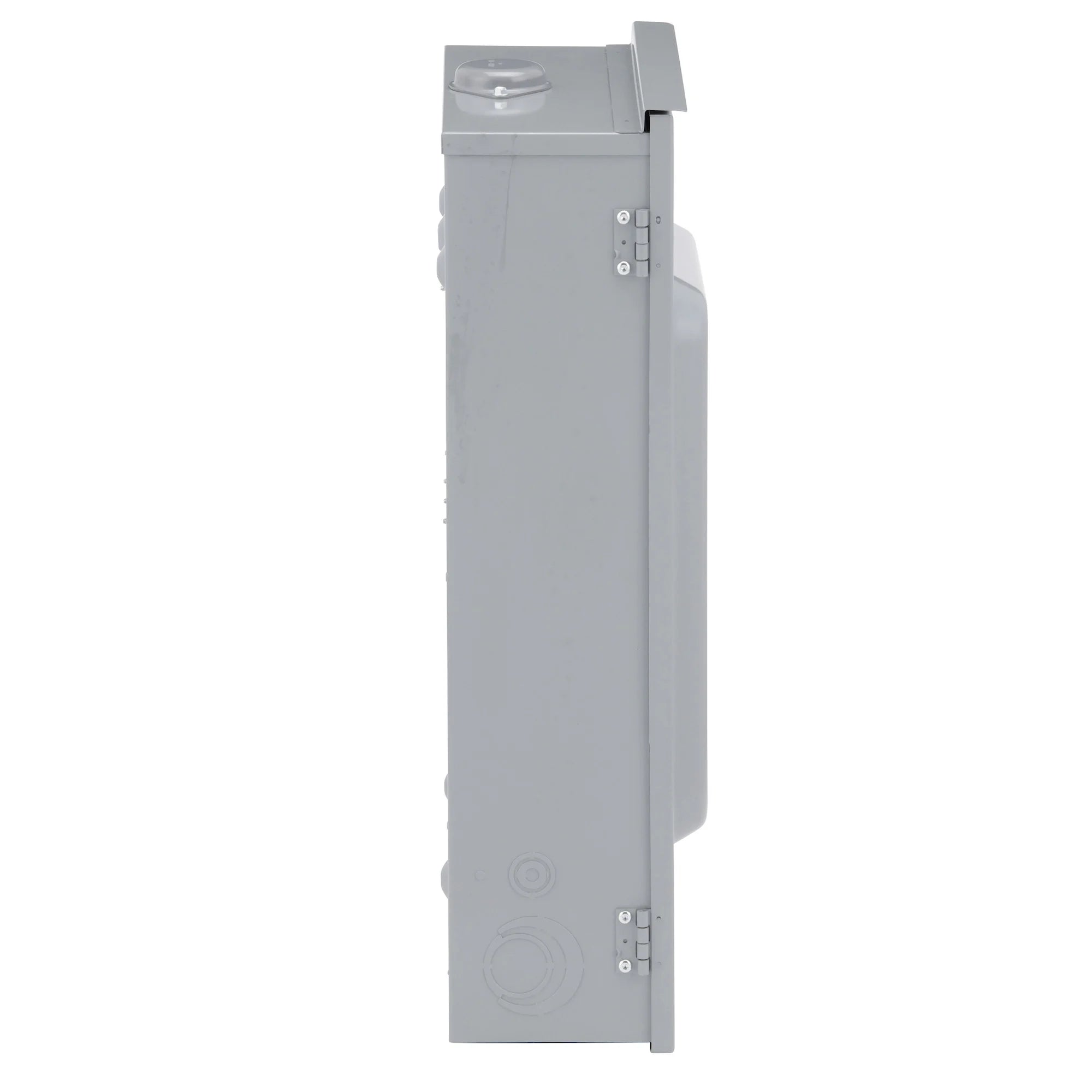

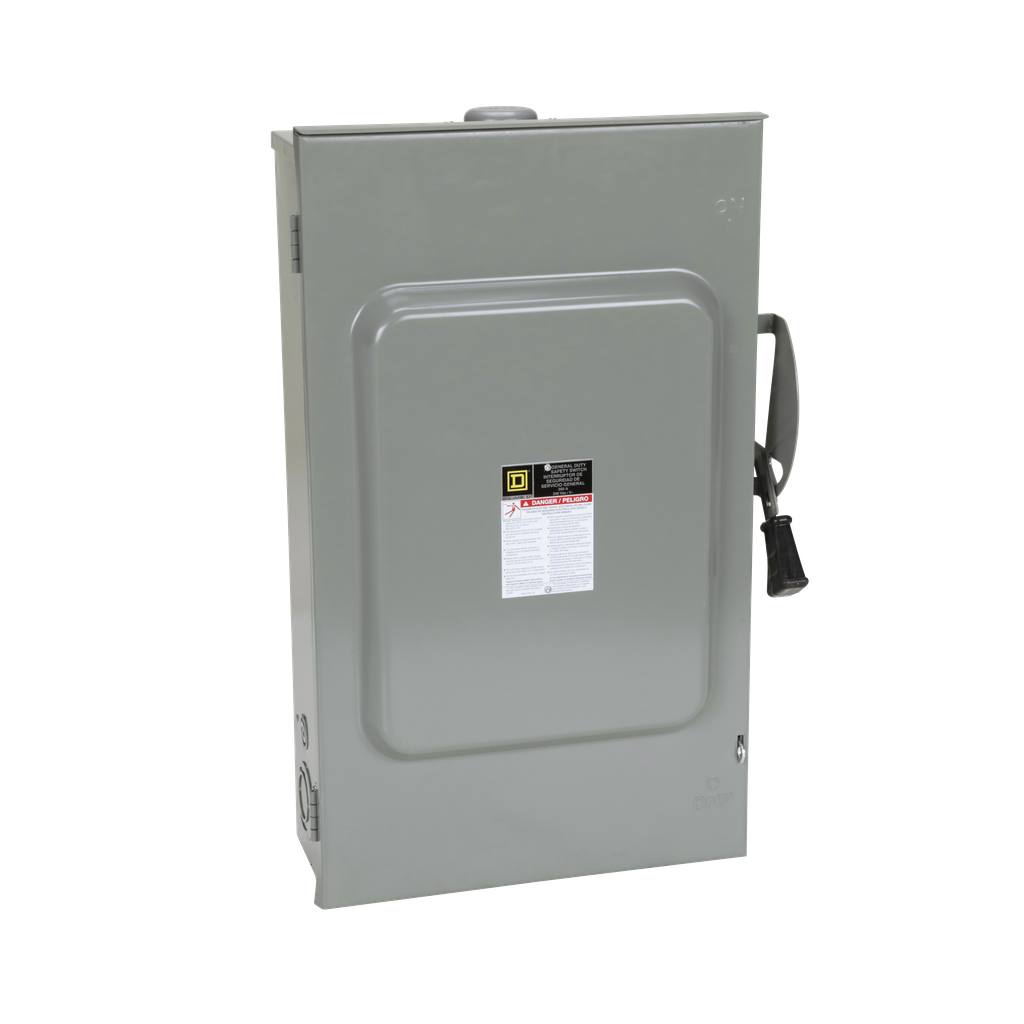

Square D DU324RB Safety Switch Non-Fusible GD 240V 200A 3P NEMA-3R

Product Description

Square D DU324RB is a safety switch designed for general duty applications. It operates at two hundred amps, three phase and two hundred forty volts. This safety switch is suitable for both residential and commercial settings involving lighting, appliances, and air conditioning. It features NEMA 3R enclosure protection, preventing exposure to rain and ice, making it ideal for outdoor installations.

• Current rating: 200 amps
• NEMA type: 3R
• Voltage: 240VAC, three-pole

Product Highlights

This safety switch is UL Listed and certified, ensuring compliance with industry standards for safety. It comes with an eighteen-month warranty. The switch is designed for surface mounting and includes lugs for electrical connections that accept AWG six to two hundred fifty kcmil wires.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: DU324RB
• Voltage: 240 Volt
• Current: 200 Amp
• Number of Poles: 3 Pole
• Enclosure Rating: NEMA 3R
• Dimensions: 29 inches (H) x 19 inches (W) x 8.25 inches (D)
• Weight: 53.00 lb
• Country of Origin: USA
