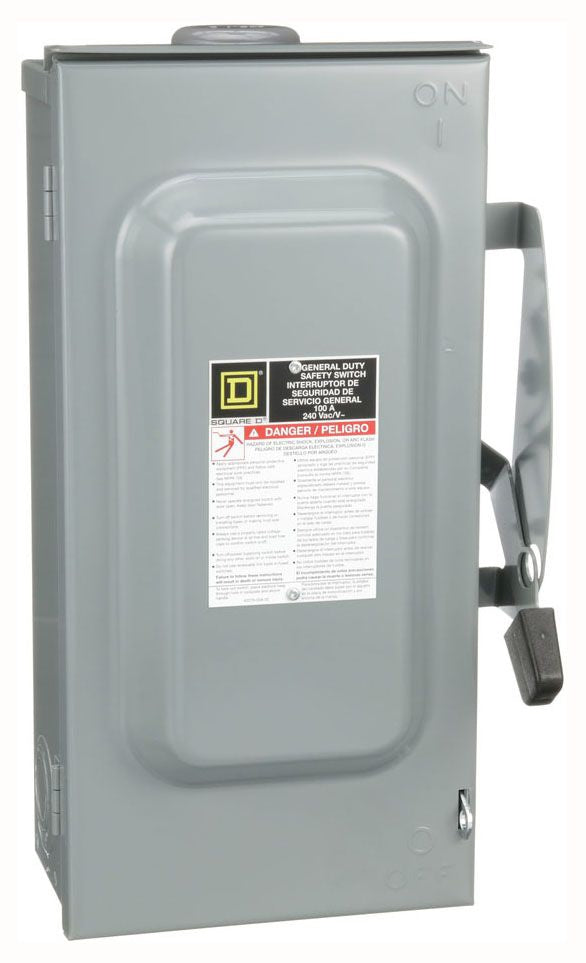

Square D DU323RB Switch Nonfusible GD 240V 100A 3P NEMA3R

Product Description

The Square D DU323RB is a non-fusible safety switch for use in electrical systems. This switch is designed for general duty applications, ensuring reliability and safety. It features a NEMA 3R enclosure for added protection against the elements.

• Single throw operation with bolted hub for connection.
• Rated 100 amps with capabilities for 15 HP at 240 Volt AC 1-Phase and 30 HP at 240 Volt AC 3-Phase.
• UL listed, ensuring compliance with safety standards.

Product Highlights

This safety switch is suitable for residential and commercial applications, protecting circuits and allowing safe disconnection of power supply.

Product Information

Standard Information

• Brand: Square D Co.
• Manufacturer: Square D Co.

Technical Specifications

• UPC: 78590149182
• Enclosure: NEMA 3R
• Size: 8.5 inches Width x 6.5 inches Depth x 17.5 inches Height
• Approval: UL
• Catalog Number: DU323RB
• Type: General Duty
• AC Voltage Rating: 240 Volt
• Current Rating: 100 Amp
• Power Rating: 15 HP at 240 Volt AC 1-Phase, 30 HP at 240 Volt AC 3-Phase
• Number of Poles: 3
• Number of Wires: 3
• Fuse Provision: Non-Fusible
• Full Technical Description: Single Throw, General Duty, Bolt-on Hub Type; 10.5 inches Width X 6.5 inches Depth X 17.5 inches Height; 3 Wires; UL Approval; NEMA 3R Enclosure; 100 Amp Rating; Non-Fusible Fuse Provision
