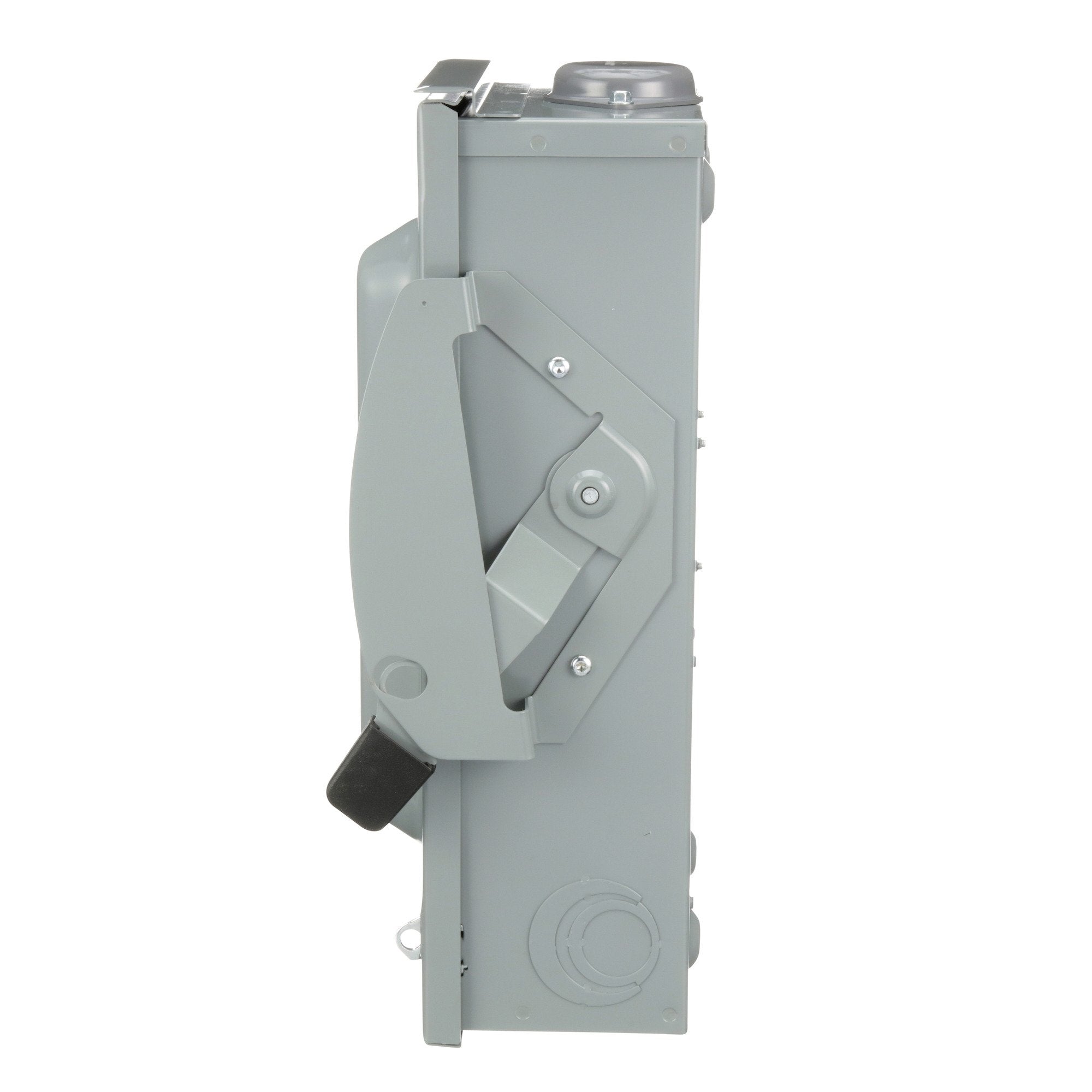

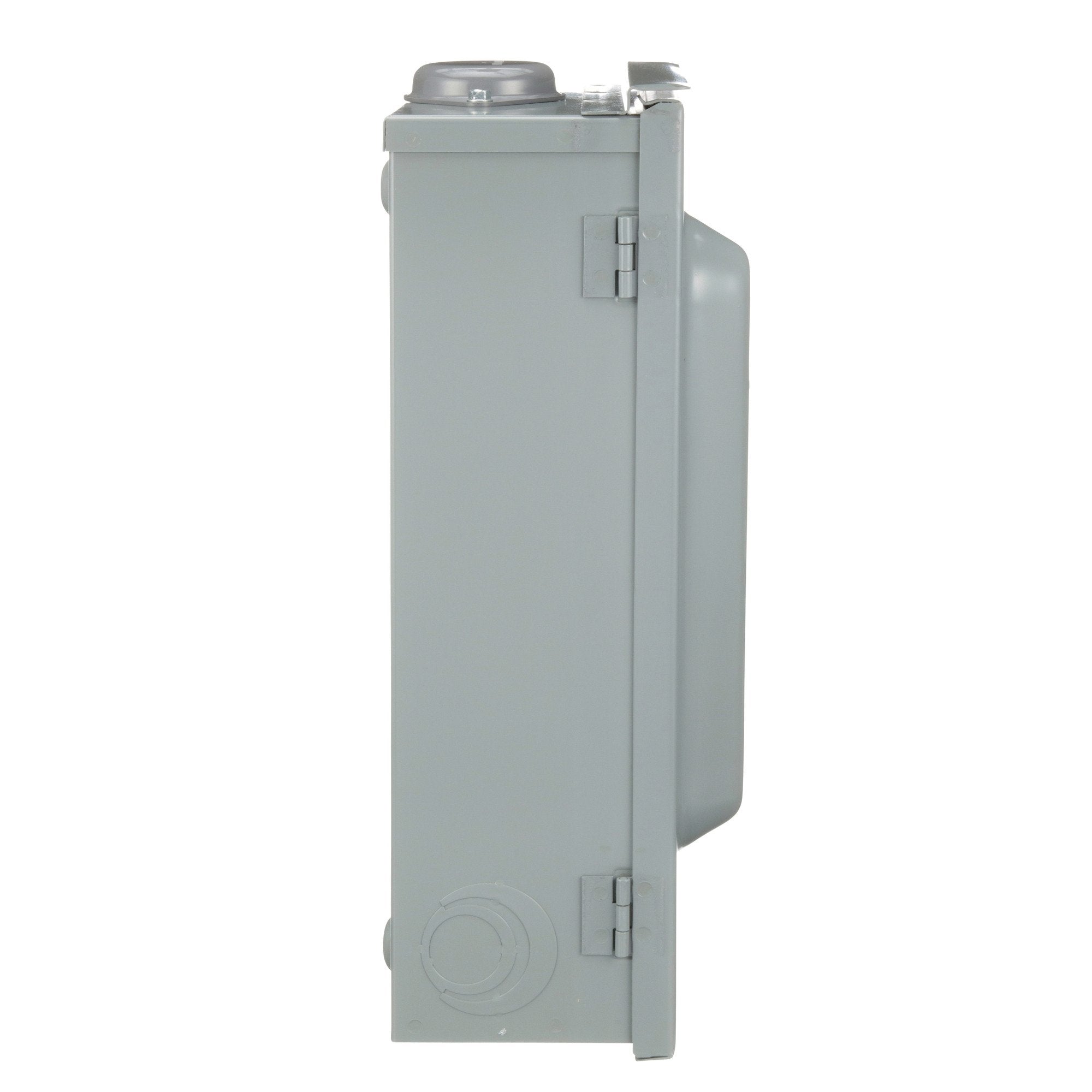

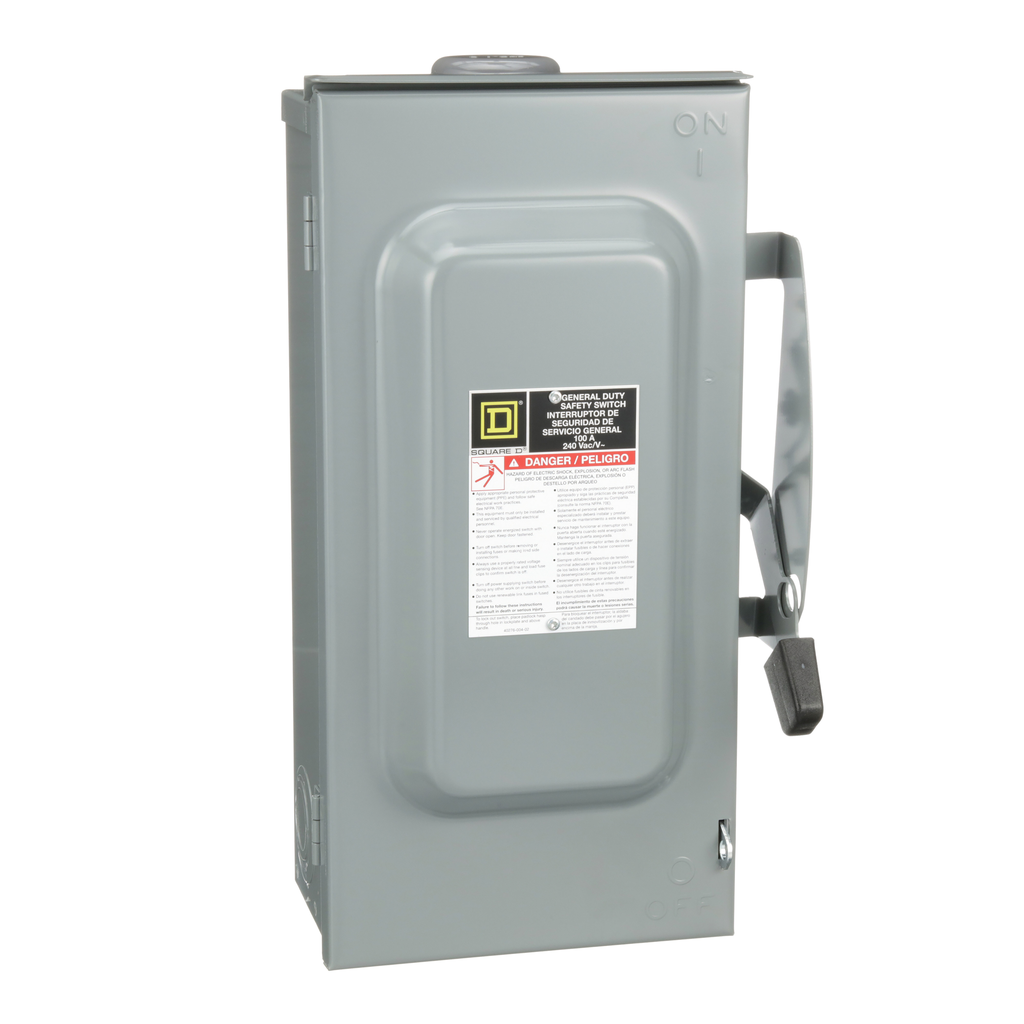

Square D DU323RB Safety Switch Non-Fusible 3P 240V 100A NEMA 3R

Product Description

Square D DU323RB is a safety switch designed for general duty applications. It operates at a current rating of one hundred amps with a voltage rating of two hundred forty volts. This non-fusible, single-throw switch features a three-pole design and a NEMA three R enclosure for outdoor use. The switch is suitable for various residential and commercial applications, including lighting and air conditioning systems. It allows for surface mounting and features lugs that accept copper and aluminum wire sizes ranging from fourteen AWG to one AWG.

• 100 amp rated current
• Three-pole design
• NEMA 3R enclosure for outdoor applications

Product Highlights

This safety switch is UL listed and meets or exceeds applicable standards, ensuring reliability in service.

Product Information

Standard Information

• Brand: Square D
• MPN: DU323RB

Technical Specifications

• Voltage: 240 Volt
• Rated Current: 100 Amp
• Number of Poles: 3 Pole
• Weight: 15.43 lb
• Dimensions: 17.5 in (H) x 10.5 in (W) x 6.5 in (D)
• Enclosure Rating: NEMA 3R
• Wire Size: AWG 14 to AWG 1 copper; AWG 12 to AWG 1 aluminum
• Warranty Length: 18 months
