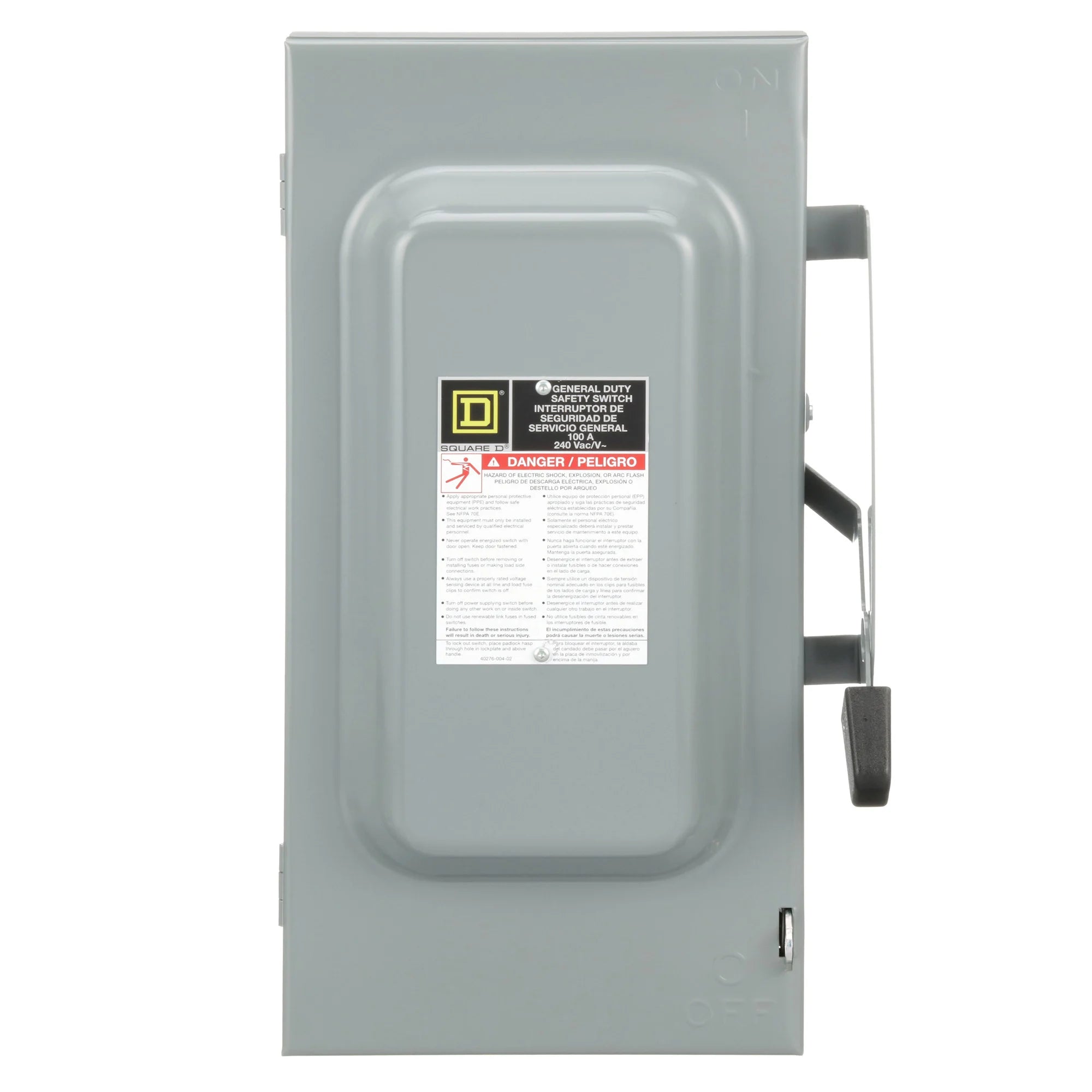

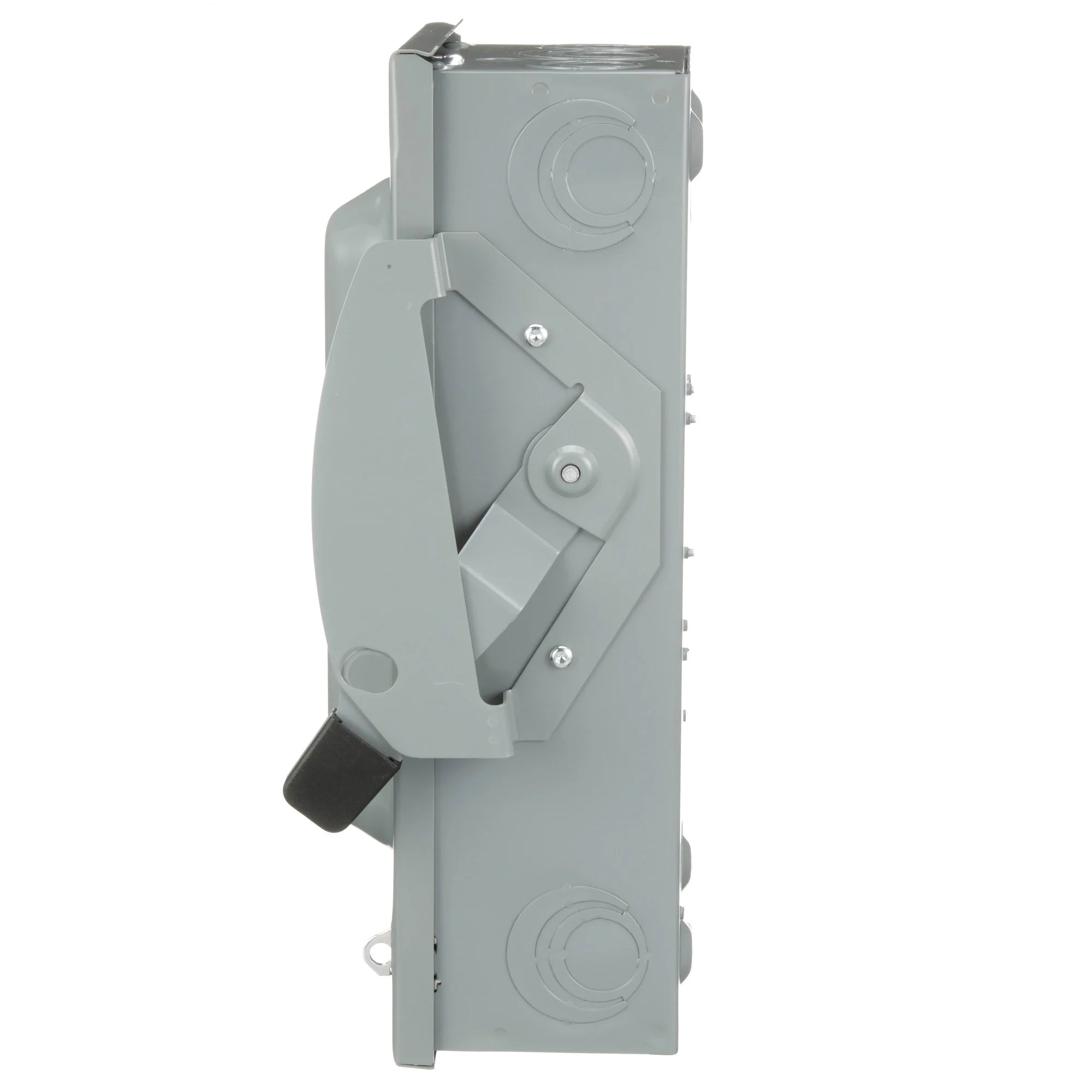

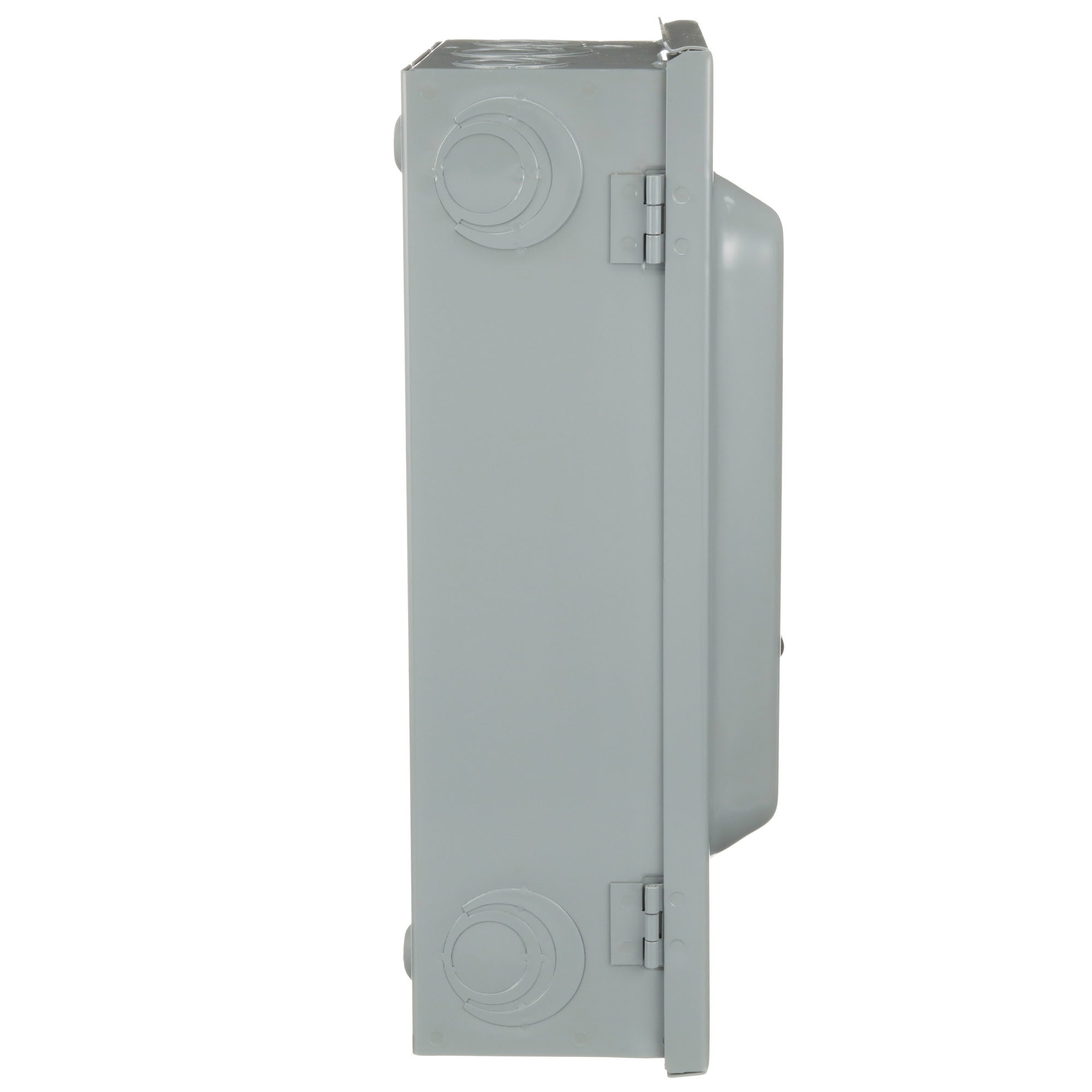

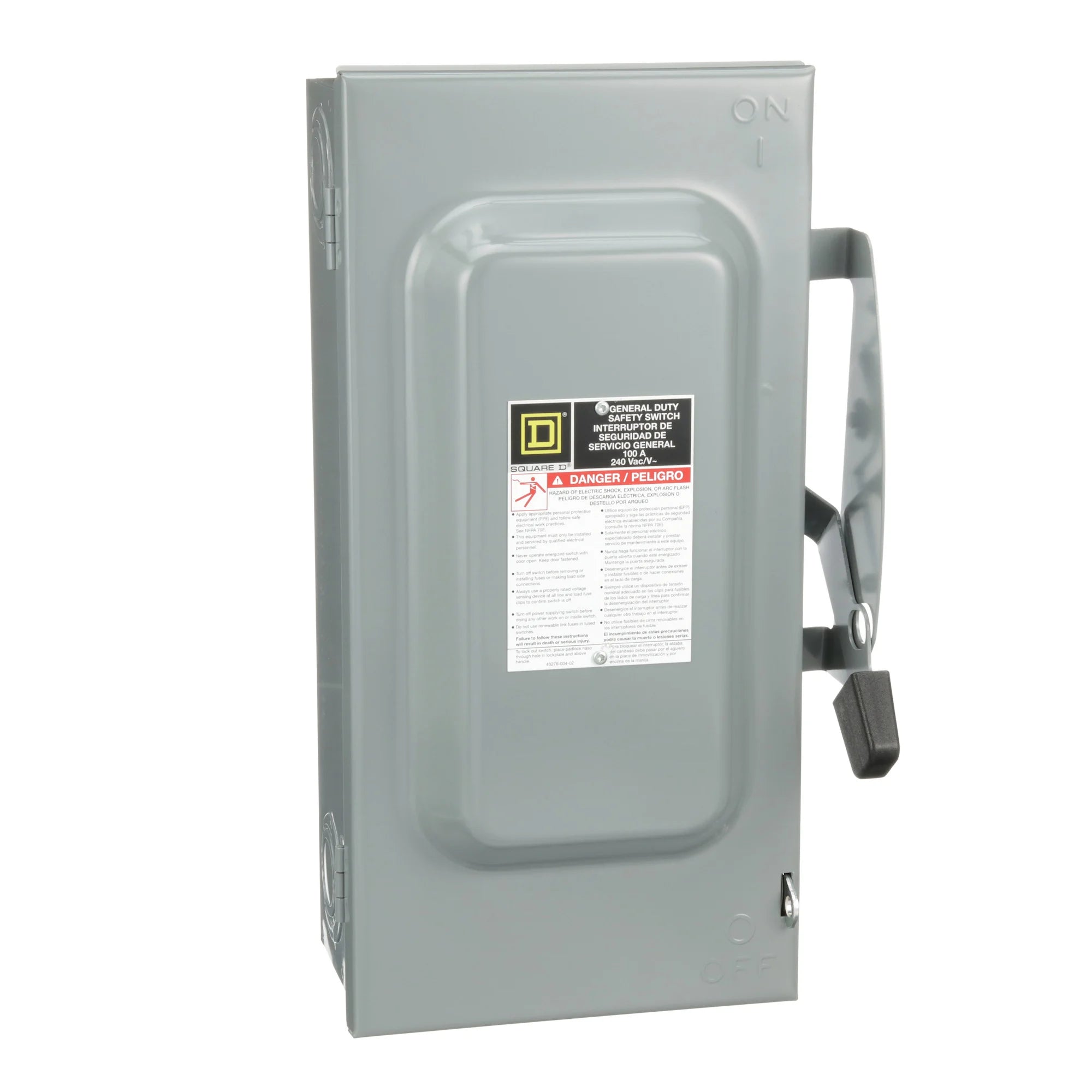

Square D DU323 Safety Switch Not-Fusible 100A 240V NEMA-1 3P

Product Description

The Square D DU323 Safety Switch is a non-fusible, general duty switch designed for both residential and commercial applications. This switch has a rated current of one hundred amps and operates at two hundred forty volts. It is suitable for lighting, air conditioning, and various appliances. Features include a NEMA one enclosure for indoor use and surface mount capabilities. This switch is certified to UL standards and is equipped with lugs for copper and aluminum connections. The dimensions are seventeen and a half inches high, ten and a half inches wide, and six and a half inches deep.

• Rated current of 100A for reliable operation.
• 3-pole design with a short-circuit rating of 100kA.
• Applicable for residential and commercial use.

Product Highlights

This safety switch supports service equipment configurations and is UL Listed, ensuring compliance with safety standards.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: DU323
• Type: Non-fusible disconnect switch; Single Throw Safety Switch
• Current: 100 Amp
• Voltage: 240 Volt
• NEMA Size: 1
• Enclosure Material: Stainless Steel
• Dimensions: 17.5 inches (H), 10.5 inches (W), 6.5 inches (D)
• Wire Size: AWG 14 to AWG 1 for copper; AWG 12 to AWG 1 for aluminum
