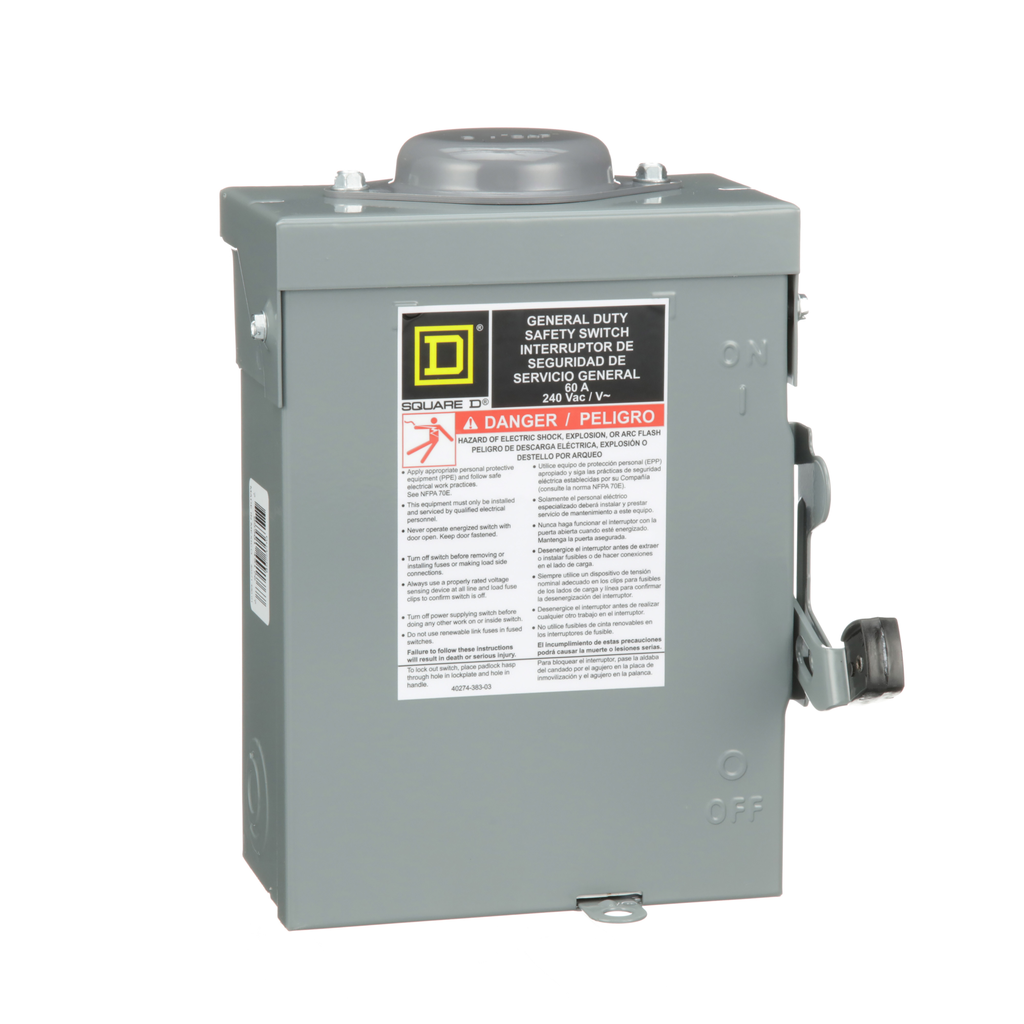

Square D DU322RB Safety Switch Not-Fusible GD 240V 60A 3P NEMA-3R

Product Description

The Square D DU322RB Safety Switch is a general duty device designed for residential and commercial settings. It operates at a voltage of two hundred forty volts and is rated for sixty amperes. This three-pole switch can handle typical loads such as lighting, air conditioning, and appliances.

• General duty safety switch for various applications
• UL Listed and meets NEMA 3R standards
• Surface-mounted setup with suitable lugs for conductor connections

Product Highlights

This switch is ideal as service equipment when equipped with the necessary neutral assembly. The DU322RB offers reliable performance in environments needing a durable and economical solution.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: DU322RB
• Voltage: 240 Volt
• Current Rating: 60 Amp
• Number of Poles: 3 Pole
• Enclosure Rating: NEMA 3R
• Dimensions: 9.63 inches (H) x 7.75 inches (W) x 3.75 inches (D)
• Weight: 26.01 lbs
• Wire Size: Accepts AWG 12 to AWG 3 aluminum and AWG 14 to AWG 3 copper
