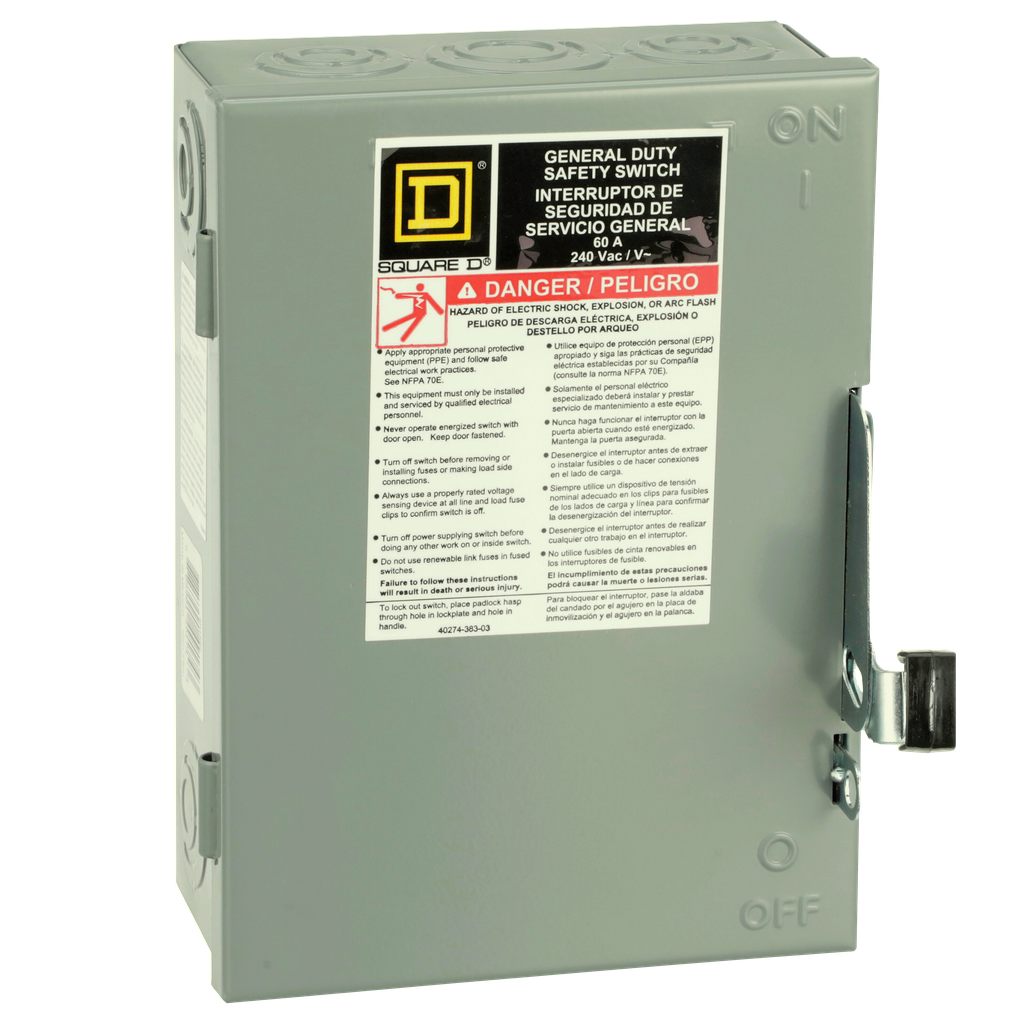

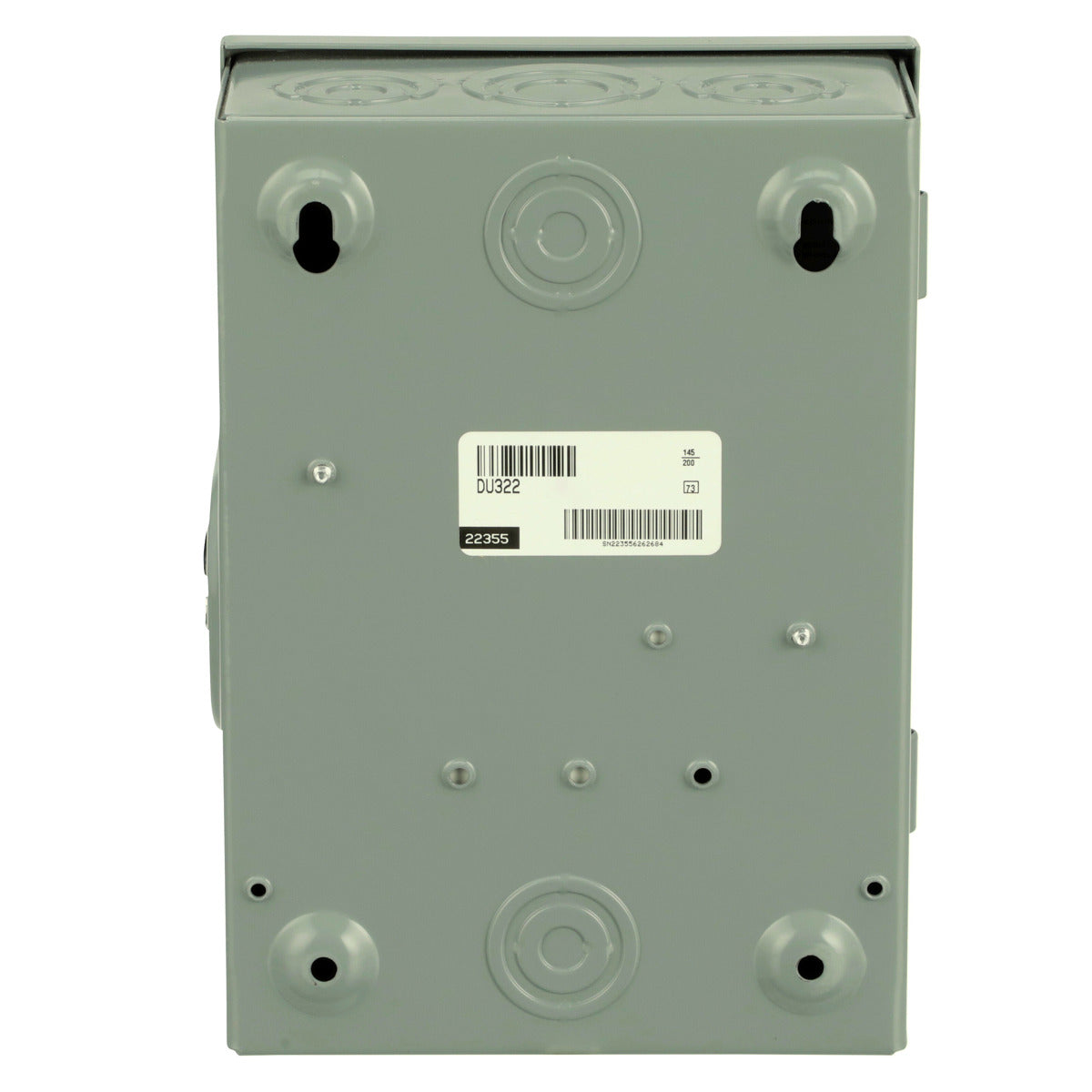

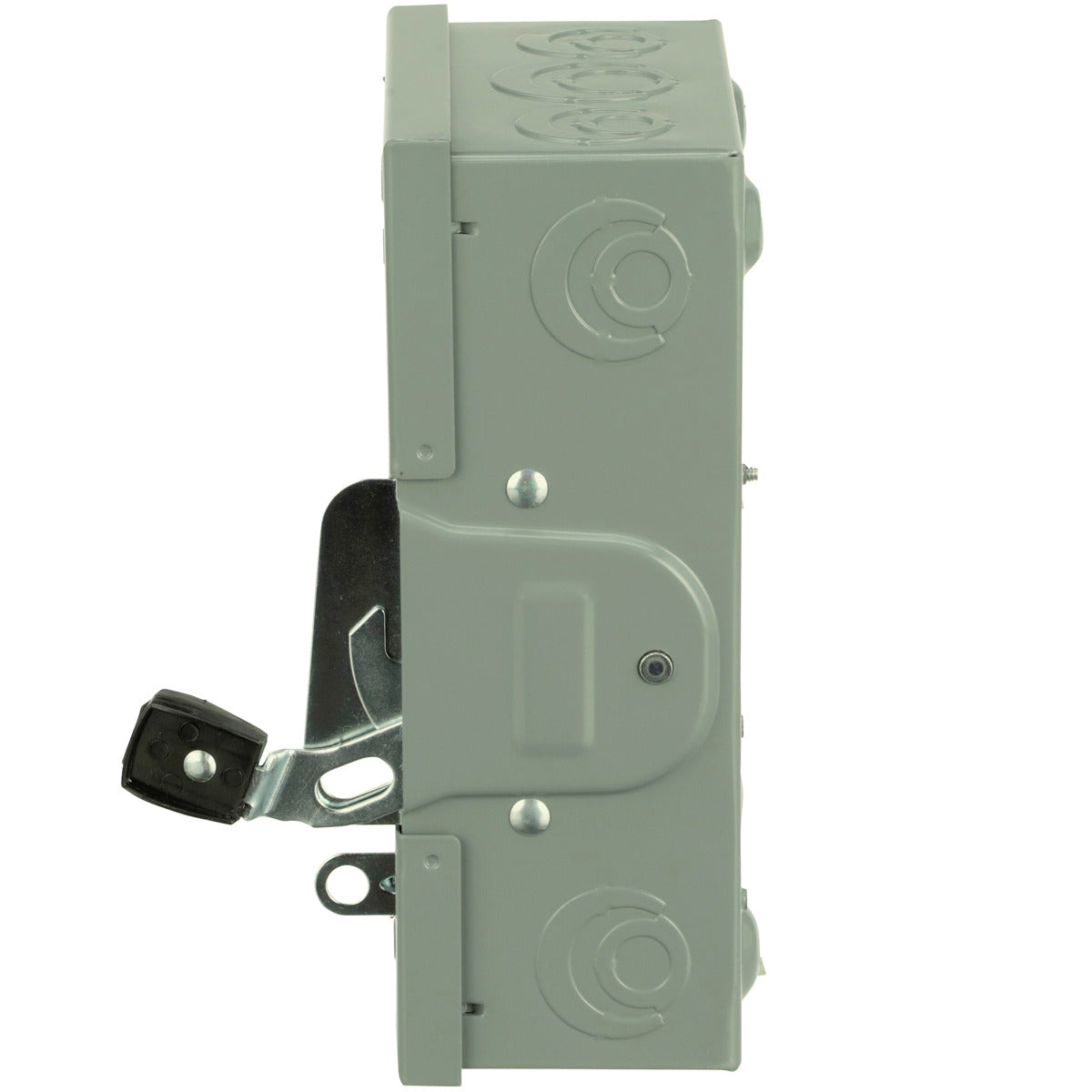

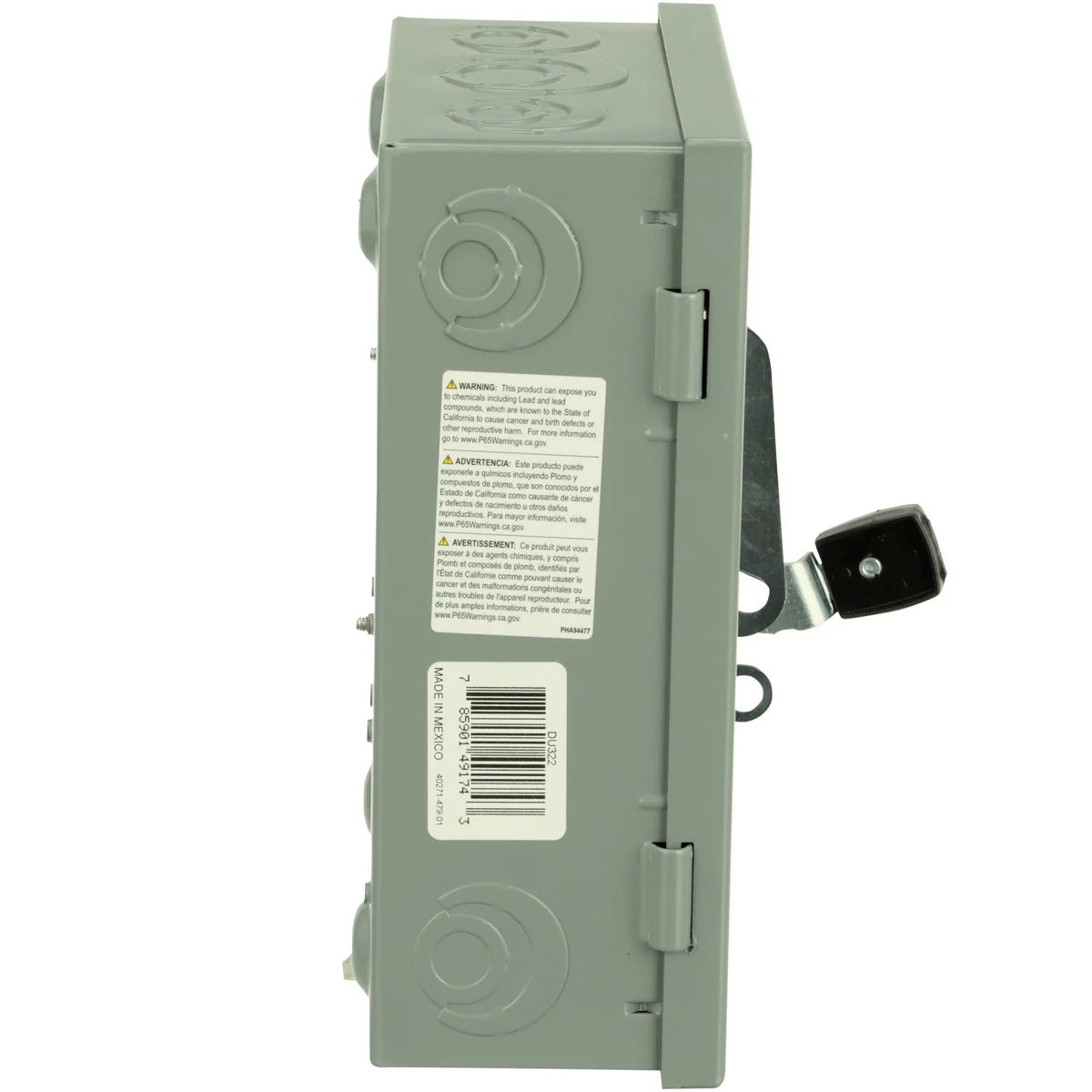

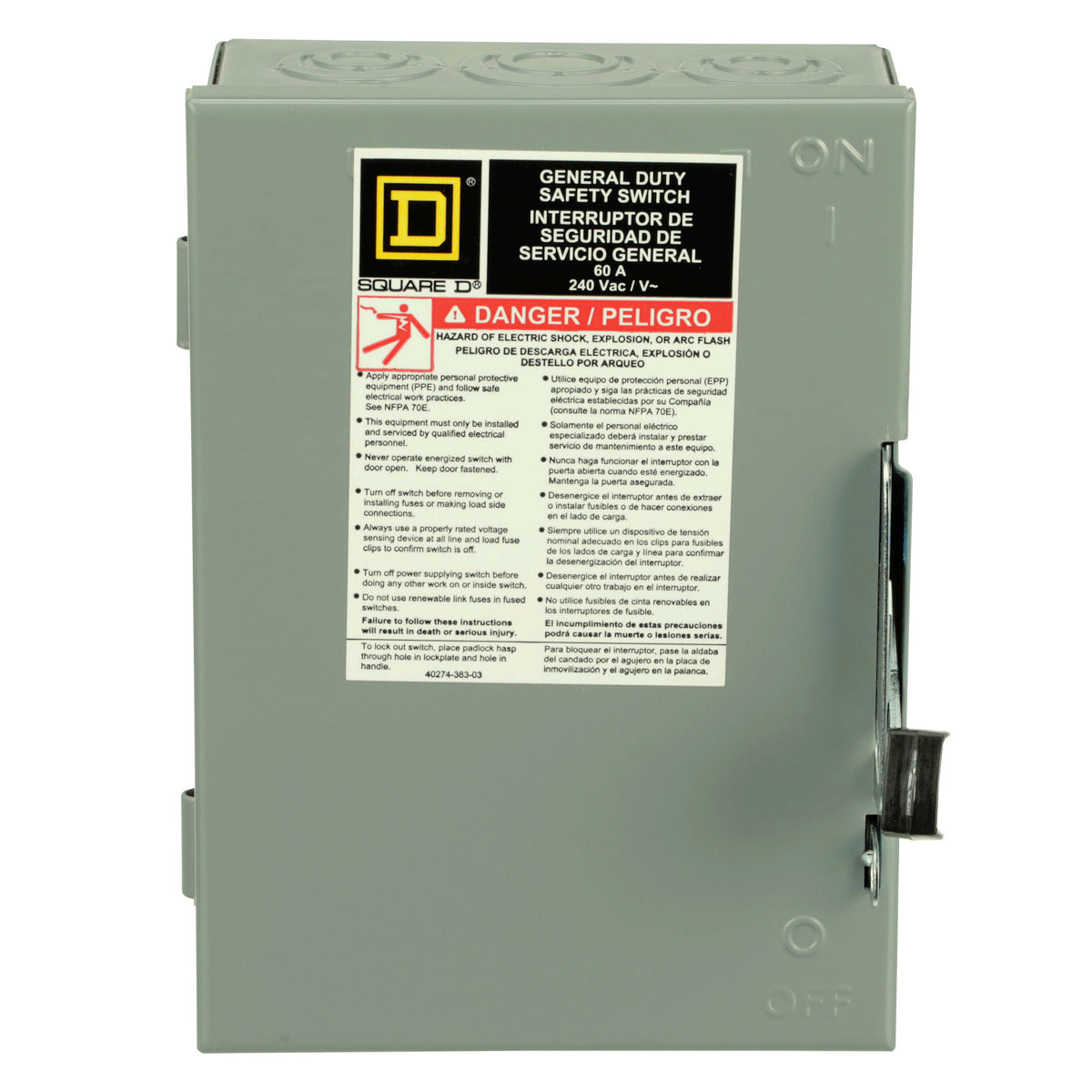

Square D DU322 Safety switch Not-Fusible GD 240V 60A 3P NEMA-1

Product Description

The Square D DU322 Safety Switch is a non-fusible general duty switch designed for both residential and commercial applications. With a rated current of 60 Amps and operating at 240 Volts, this three-pole switch is ideal for powering lighting, air conditioning, and various appliances.

• 60 Amp rated current
• NEMA 1 enclosure for indoor use
• Suitable for service equipment with a neutral assembly

Product Highlights

This general duty safety switch is UL Listed and meets or exceeds NEMA standards. It features a surface mount design and is equipped with lugs that accommodate various wire sizes, ensuring a secure electrical connection.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric
• Warranty: 18 months

Technical Specifications

• Switch Type: Non-fusible disconnect switch; Single Throw Safety Switch
• Current Rating: 60 Amps
• Voltage Rating: 240 Volts
• Number of Poles: 3
• Short Circuit Rating: 100 kA
• Dimensions: 9.25 inches (H) x 7.25 inches (W) x 3.63 inches (D)
• Wire Size Compatibility: AWG 12 to AWG 3 aluminum; AWG 14 to AWG 3 copper
• Mounting Type: Surface
• Country of Origin: Mexico
• Environmental Conditions: General purpose (indoor)
